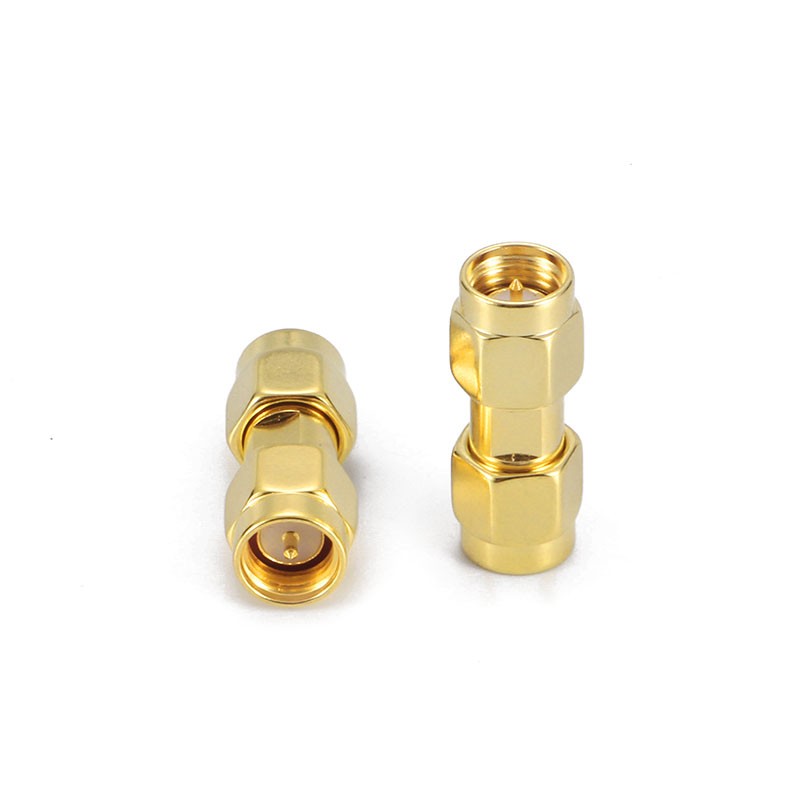

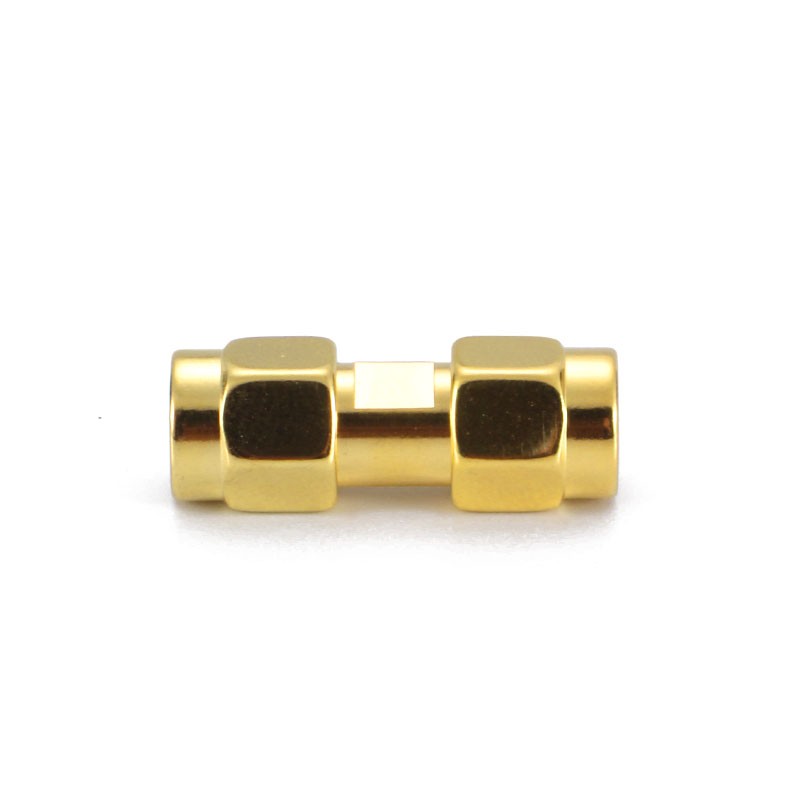

SMA male to SMA male RF coaxial adapter
SMA male to SMA male RF coaxial adapter
SMA male to SMA male RF coaxial adapter
SMA male to SMA male RF coaxial adapter
SMA male to SMA male RF coaxial adapter
SMA male to SMA male RF coaxial adapter
Product Detail



Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency BandDC~6GHz
VSWR≤1.25
Dielectric Withstanding Voltage≥1000V RMS,50hz,at sea level
Dielectric Resistance≥5000MΩ
Inner Contact Resistance≤3MΩ
Outer Contact Resistance≤2.5MΩ



Mechanical Specifications
Mating Cycles500 Cycles



Environmental Specifications
Operating Temperature-45°C to +125°C
Storage Temperature-45°C to +125°C



Components
NameMaterialPlating
BodyBrassGold
InsulatorPTFE
Inner ContactBrassGold


Keywords

SMA coaxial adapter
