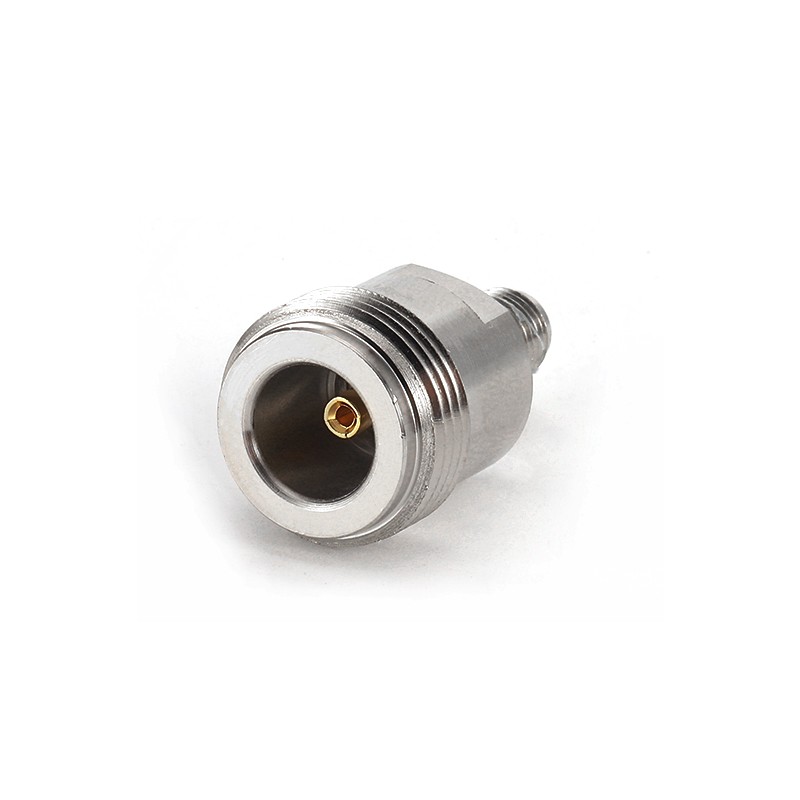

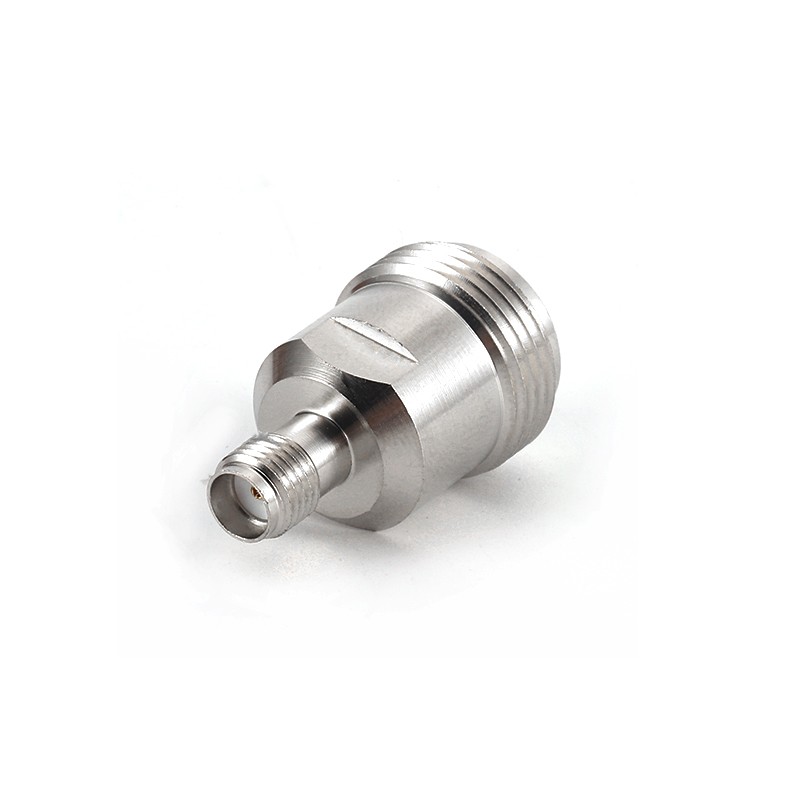

N female to SMA female RF coaxial adapter
N female to SMA female RF coaxial adapter
N female to SMA female RF coaxial adapter
N female to SMA female RF coaxial adapter
N female to SMA female RF coaxial adapter
N female to SMA female RF coaxial adapter
Product Detail



Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency BandDC~6GHz
VSWR≤1.25
Dielectric Withstanding Voltage≥1000V RMS,50hz,at sea level
Dielectric Resistance≥5000MΩ
Inner Contact Resistance≤1MΩ
Outer Contact Resistance≤0.25MΩ



Mechanical Specifications
Mating Cycles500 Cycles



Environmental Specifications
Operating Temperature-45°C to +125°C
Storage Temperature-45°C to +125°C



Components
NameMaterialPlating
BodyBrassNi
InsulatorPTFE
Inner ContactPhosphor copperGold


Keywords

N type coaxial adapter,SMA coaxial adapter
