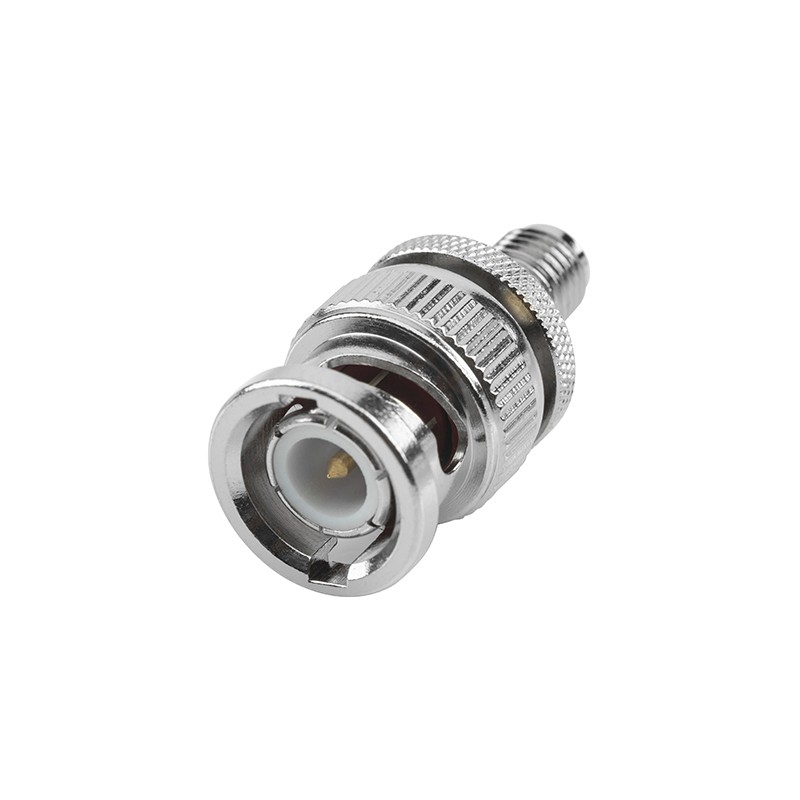

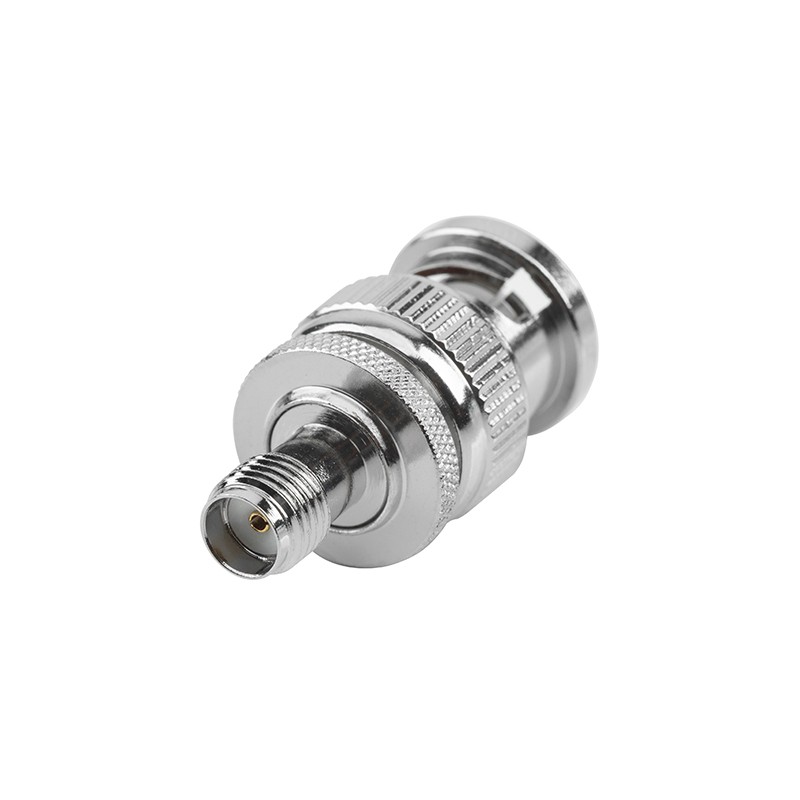

BNC male to SMA female RF coaxial adapter
BNC male to SMA female RF coaxial adapter
BNC male to SMA female RF coaxial adapter
BNC male to SMA female RF coaxial adapter
BNC male to SMA female RF coaxial adapter
BNC male to SMA female RF coaxial adapter
Product Detail



Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency BandDC~6GHz
VSWR≤1.35
Dielectric Withstanding Voltage≥1000V RMS,50hz,at sea level
Dielectric Resistance≥5000MΩ
Inner Contact Resistance≤2.5MΩ
Outer Contact Resistance≤1MΩ



Mechanical Specifications
Mating Cycles500 Cycles



Environmental Specifications
Operating Temperature-45°C to +125°C
Storage Temperature-45°C to +125°C



Components
NameMaterialPlating
BodyBrassNi
InsulatorPTFE
Inner ContactPhosphor copperGold


Keywords

BNC coaxial adapter,SMA coaxial adapter
