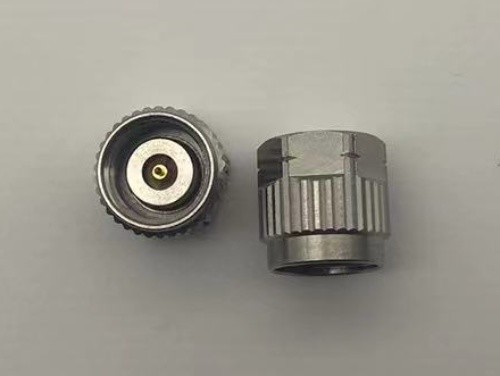

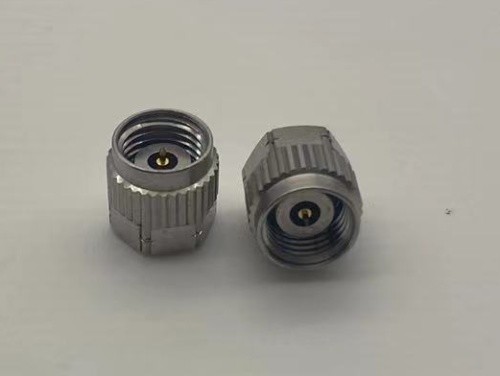

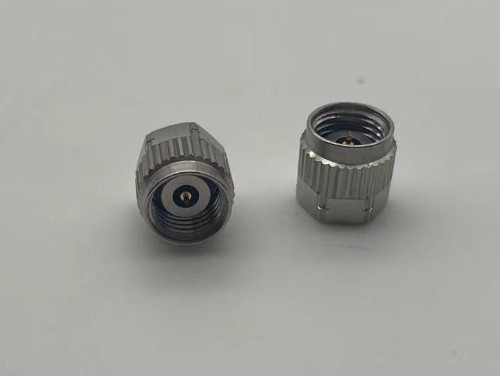

2.4mm male termination dummy load, 2W, DC-50GHz
2.4mm male termination dummy load, 2W, DC-50GHz
Product Detail
Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 50 GHz
RF Operating Voltage, maximum (vrms)1000.00 V
Outer Contact Resistance, maximum2.00 Mohm
Inner Contact Resistance, maximum3.00 Mohm
Insulation Resistance, minimum5000 Mohm
Average power2 W

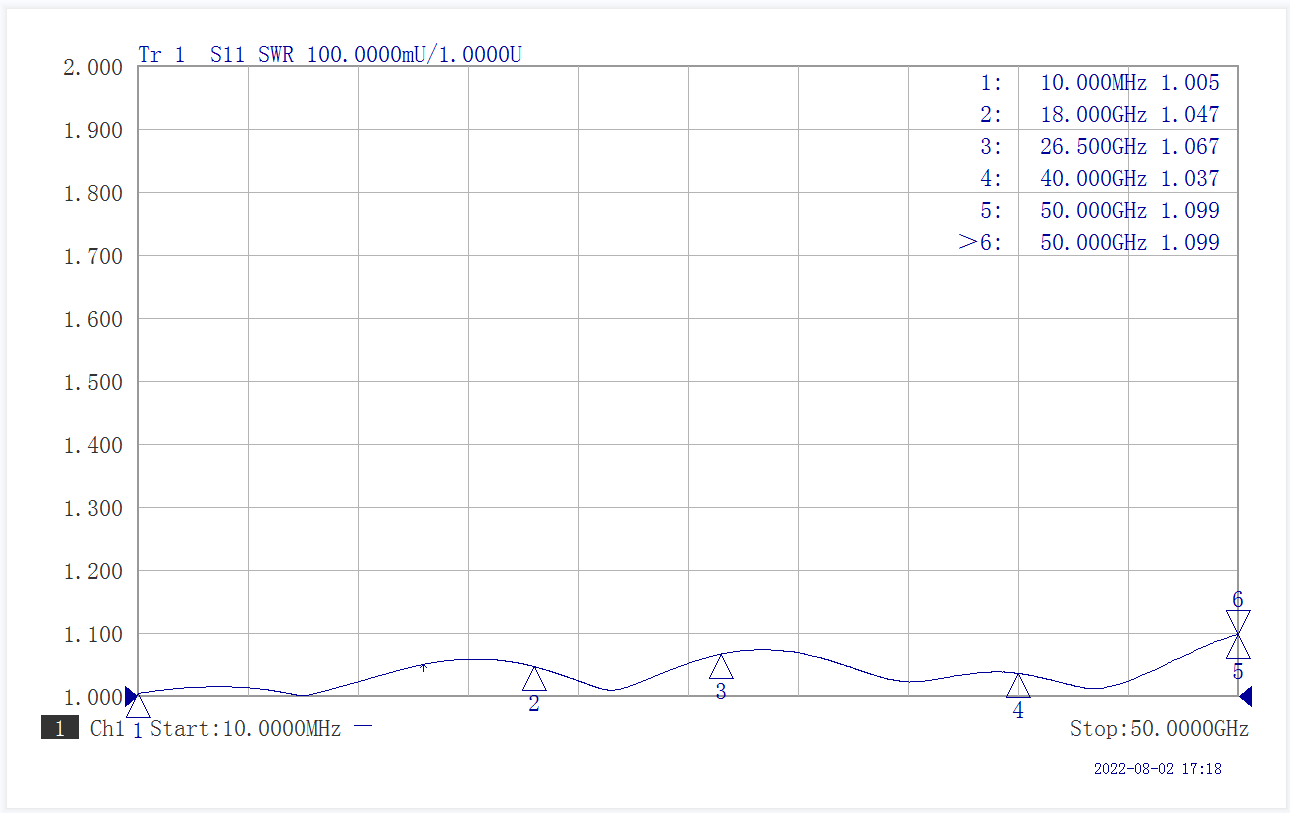

VSWR<1.2
Insertion LossTypical 0.05×√fdB
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque0.7-1.1 Nm
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodySUS303Passivating
Inner ContactBeryllium BronzeGold
InsulatorPEEK&PTFE
