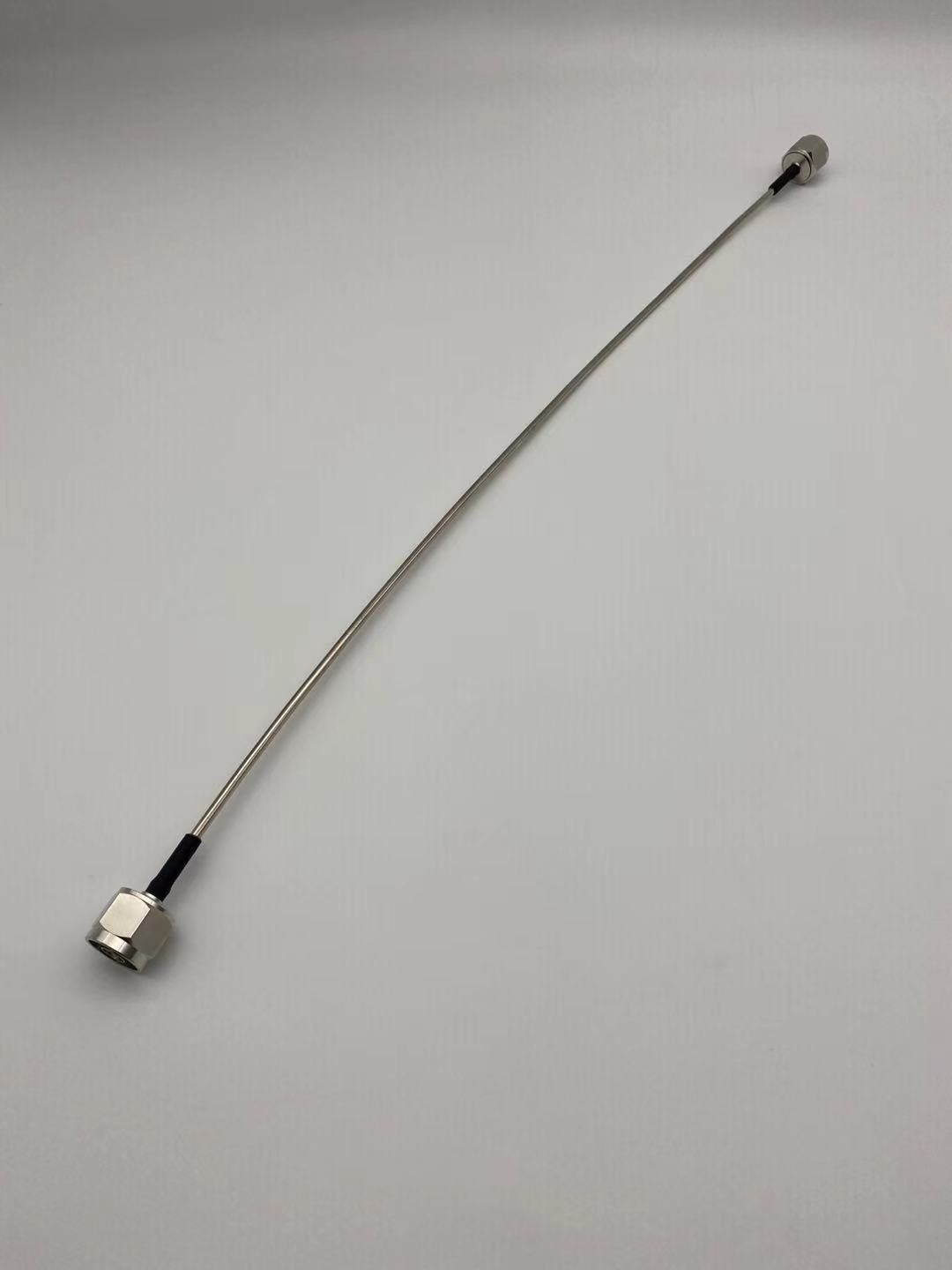

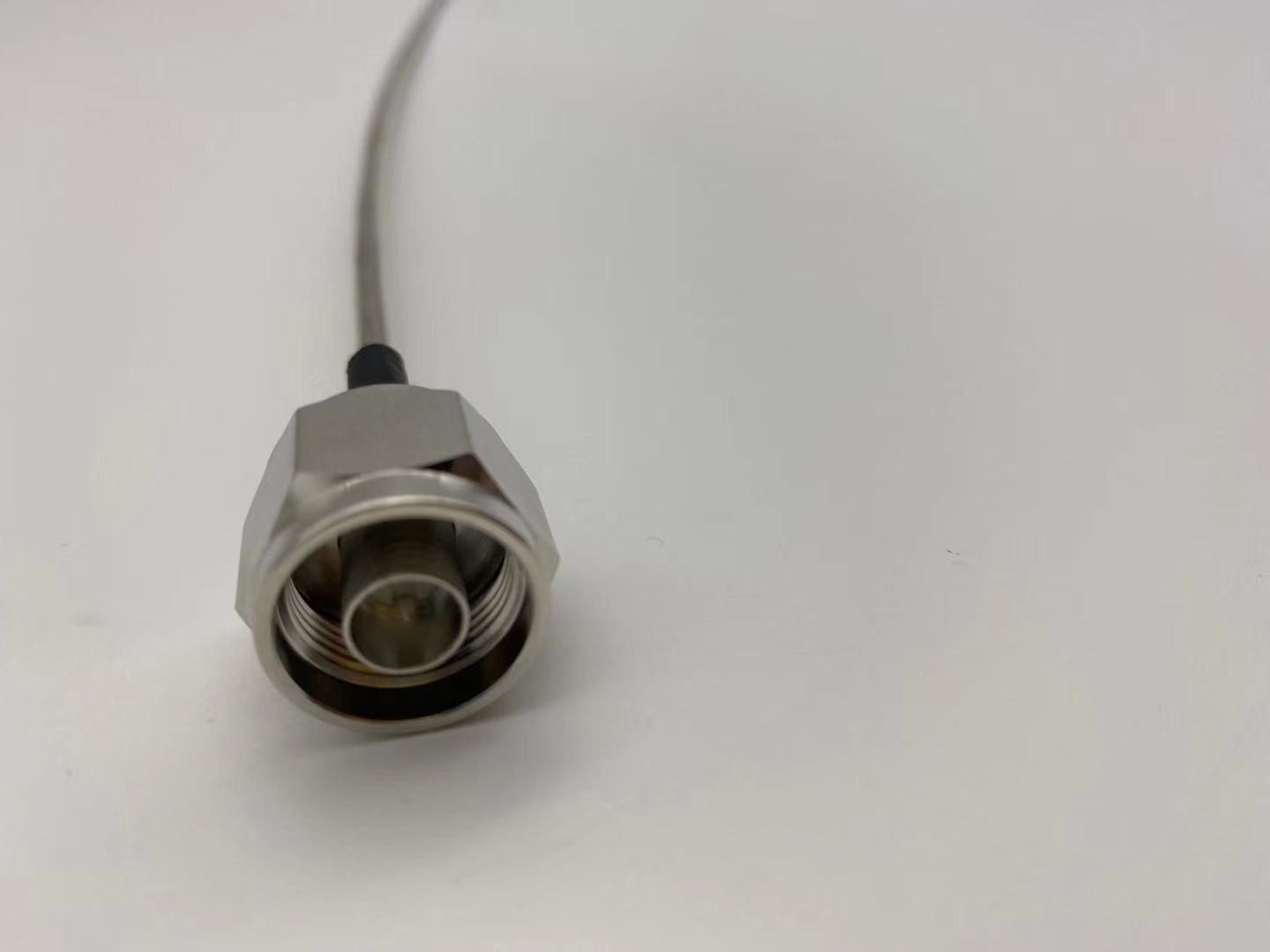

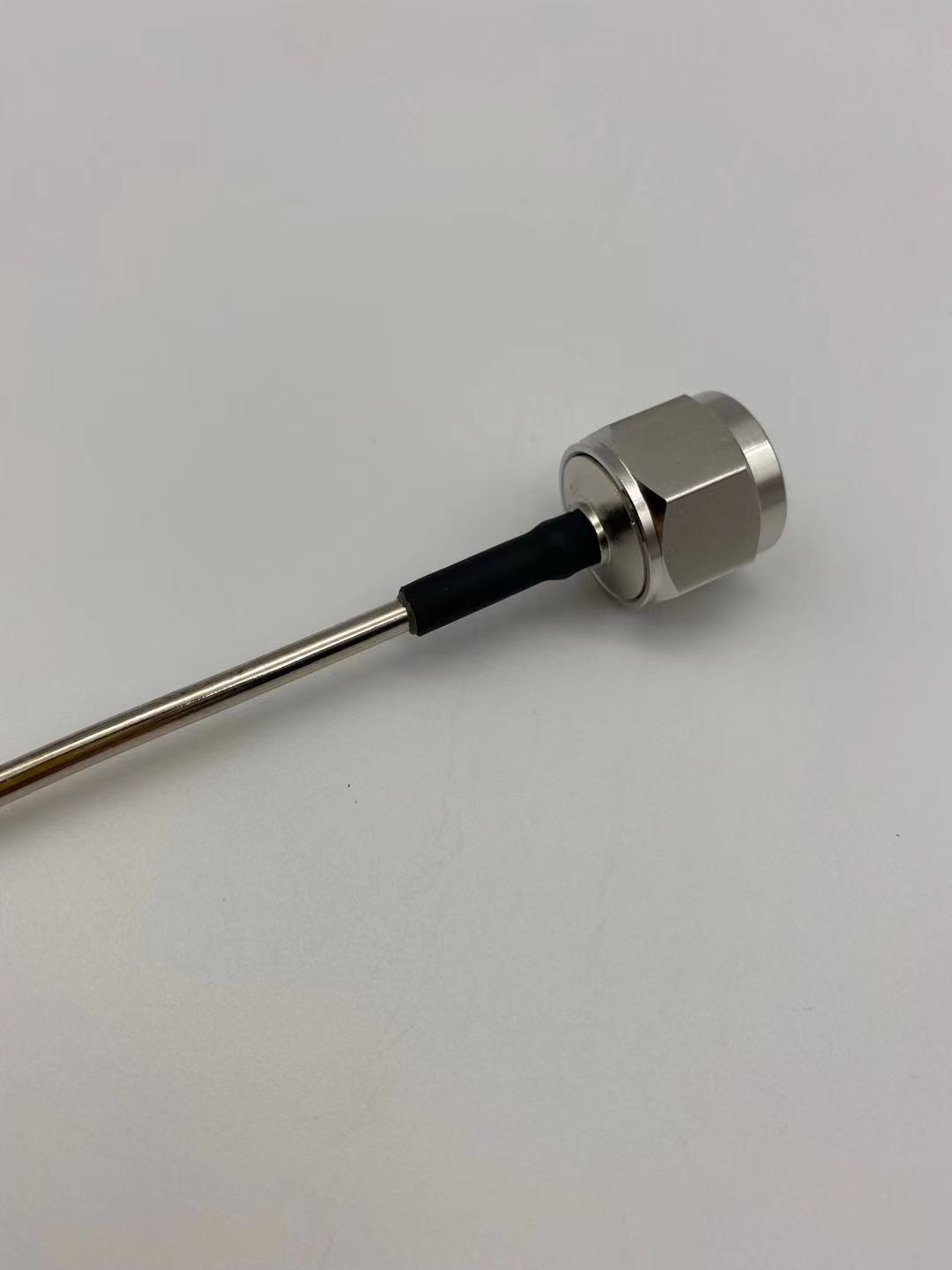

Semi rigid Semi flexible N male to N male RF coaxial cable assembly with 141 cable
Semi rigid Semi flexible N male to N male RF coaxial cable assembly with 141 cable
Product Detail

Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 6 GHz
RF Operating Voltage, maximum (vrms)1500.00 V
Outer Contact Resistance, maximum0.20 Mohm
Inner Contact Resistance, maximum1.00 Mohm
Insulation Resistance, minimum5000 Mohm
VSWR<1.15
Insertion LossTypical 0.05×√fdB+Cable Insertion Loss
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque0.7-1.1 Nm
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodyBrassTernary Alloy
Inner ContactBeryllium Bronze Gold
InsulatorPTFE
