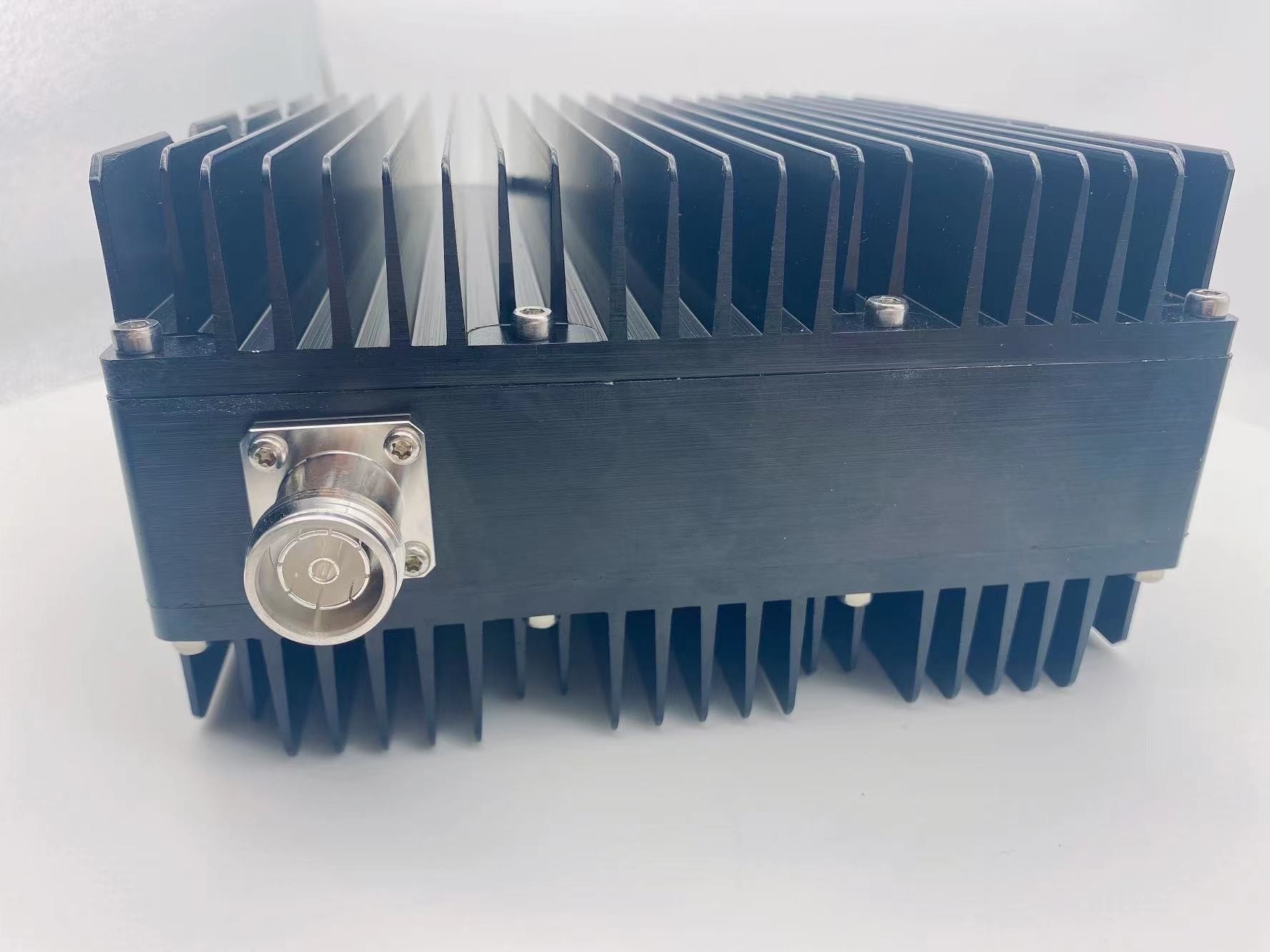

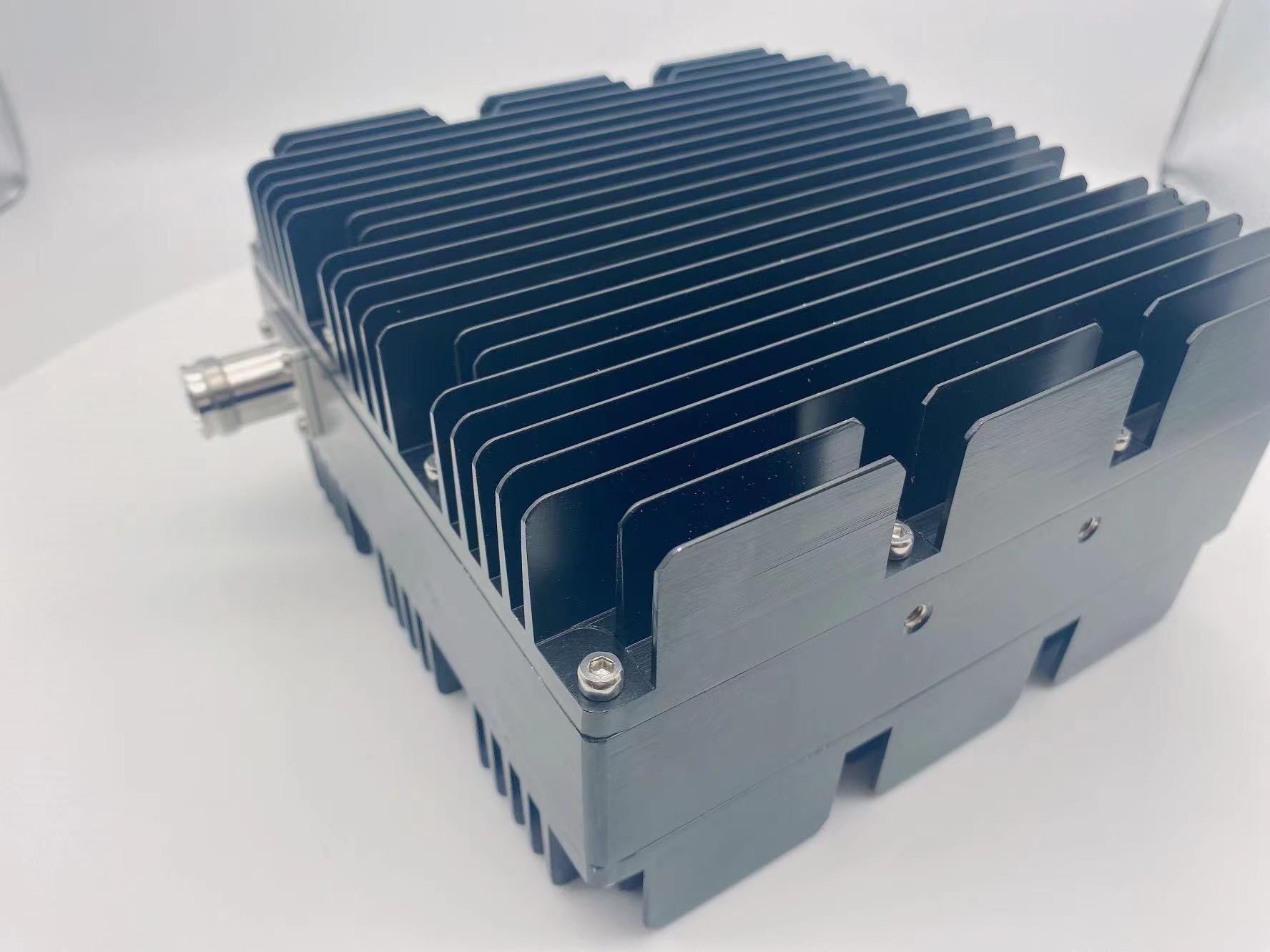

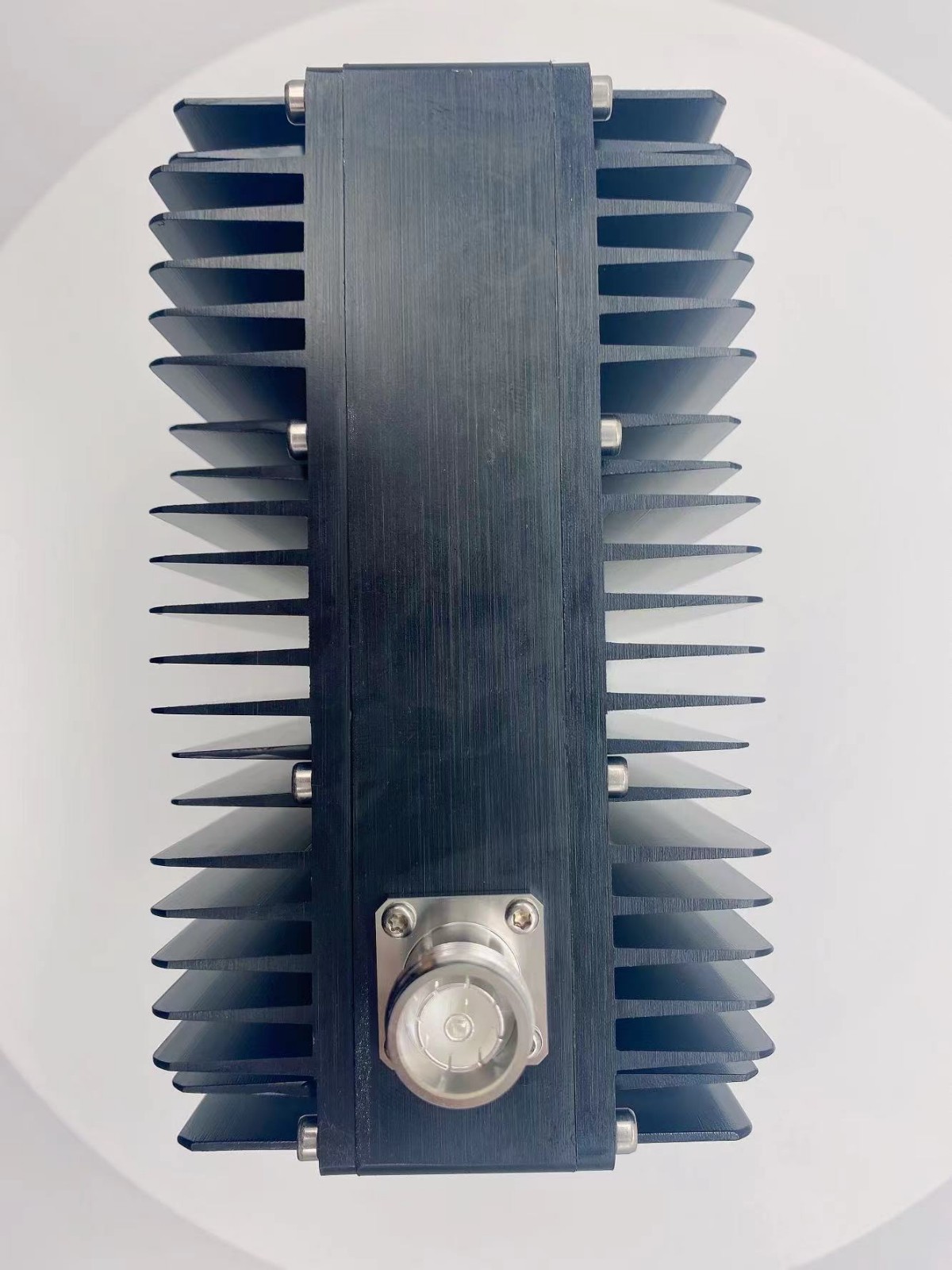

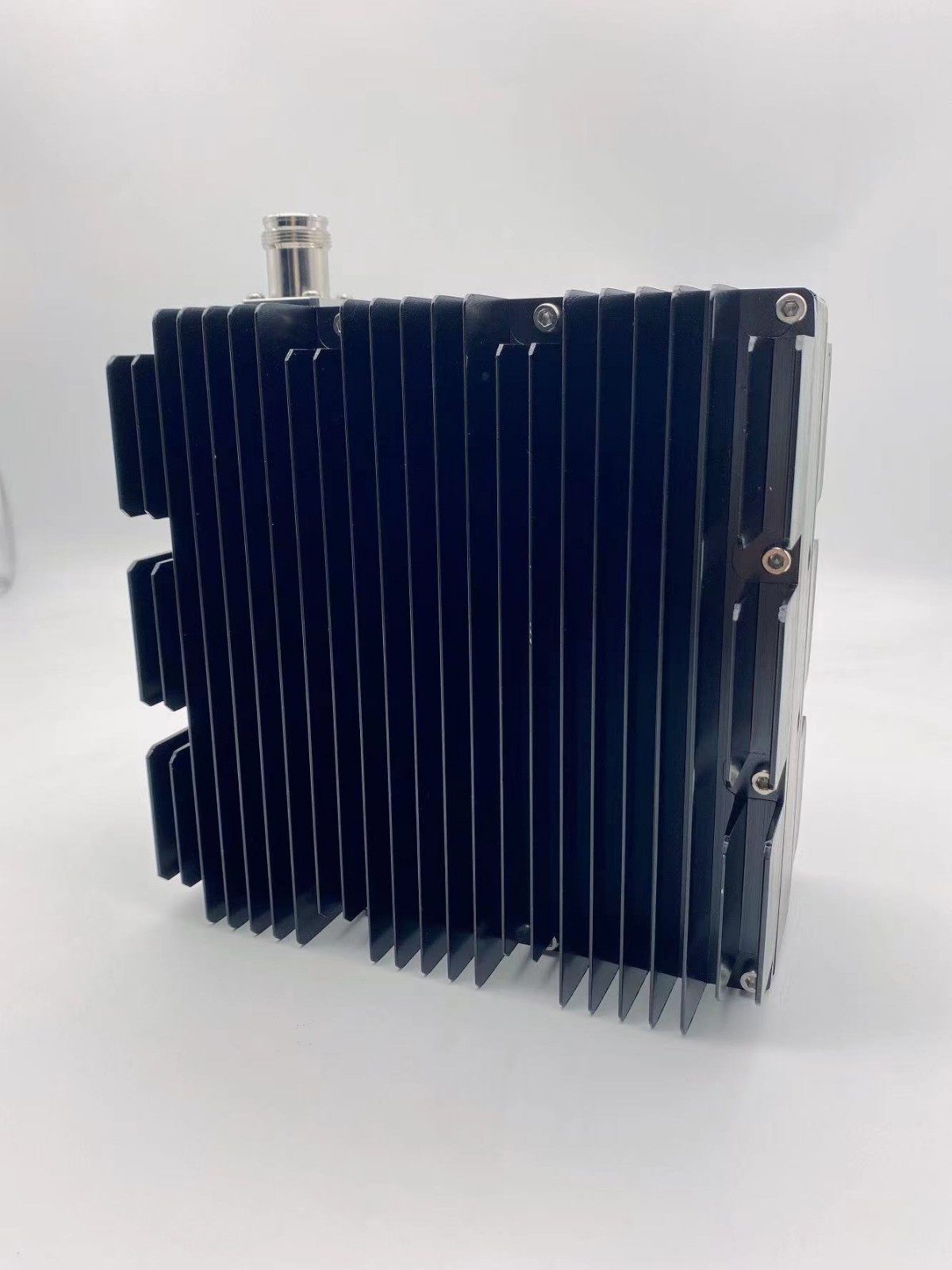

Low PIM high power 100Watt dummy load with 4.3-10 female connectors.
Low PIM high power 100Watt dummy load with 4.3-10 female connectors.
Product Detail
Electrical Specifications
Product Type100Watt Low PIM Dummy Load
Product CodeHEX-LPL100-4310(F)
Part Number150.L70
Frequency Range694-3800MHz
Impedance50Ω
VSWR/Return Loss1.25/19.0
PIM≤-160dBc@2 x 43dBm
Power Handling100W maximum, Derated power by -1.5%/ ºC above 50ºC


Mechanical Specifications

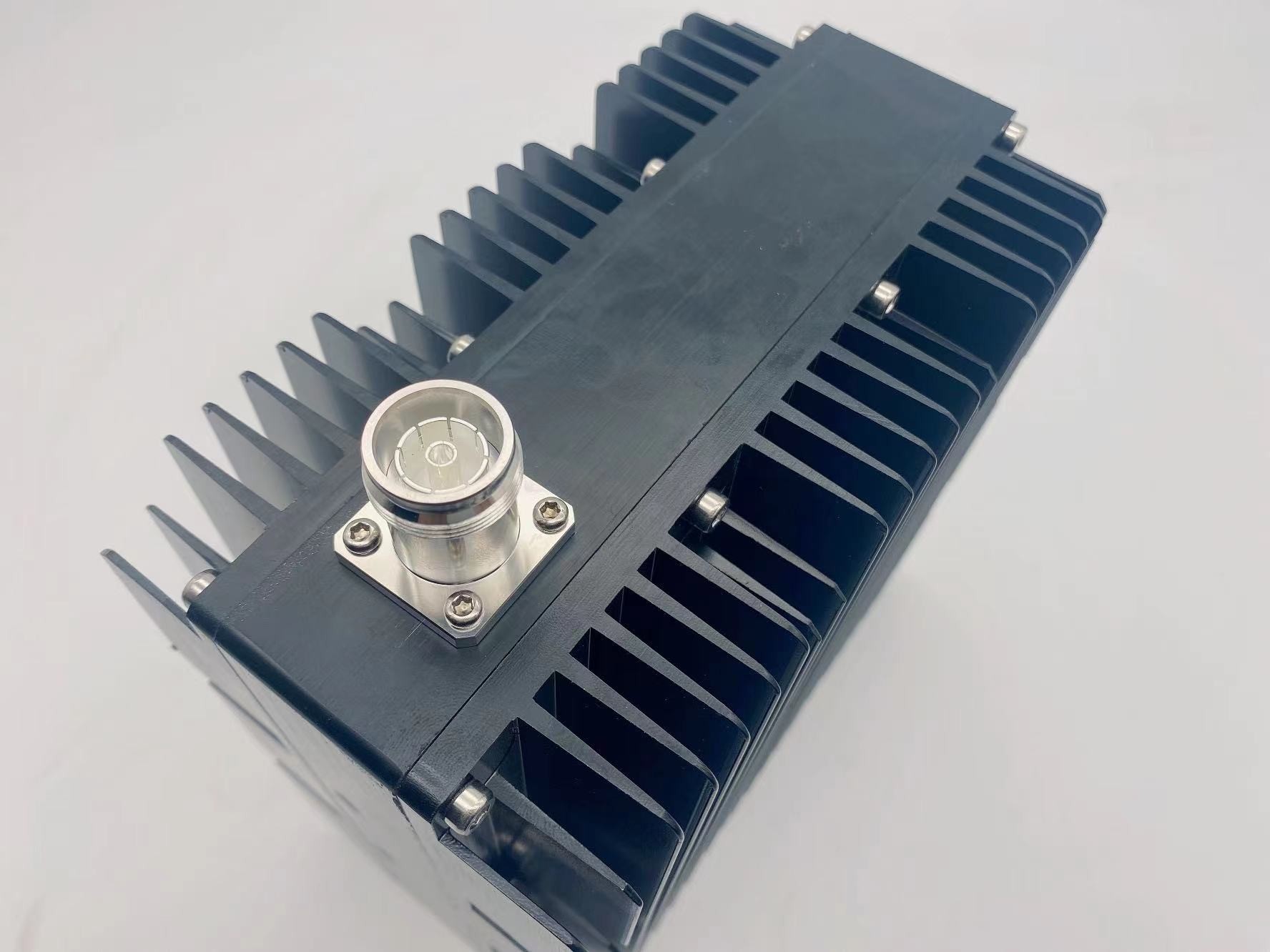

Connector4.3-10 type female
Weight≤3.58Kgs ± 5% (without brackets)

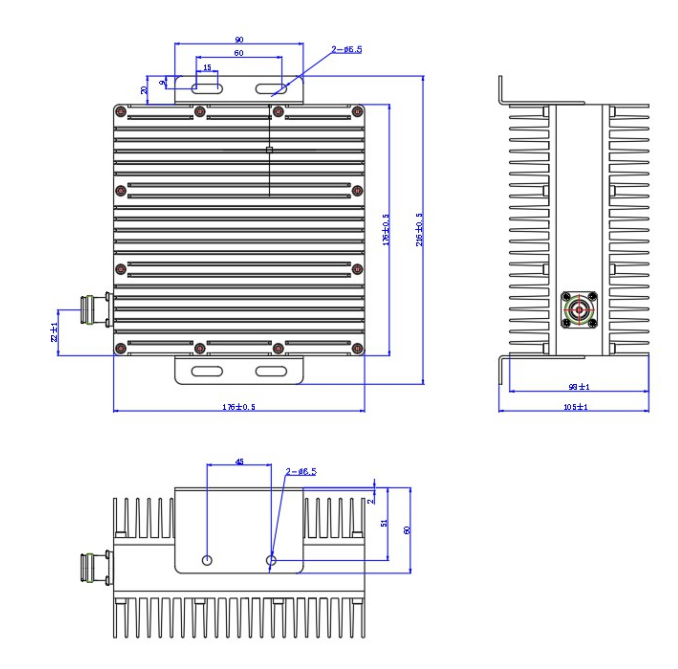

Dimension176±0.5 x 176±0.5 x 98±1mm (without brackets)
ColourBlack
Operating Humidity5-95%
Operating Temperature-25 to 65ºC
ApplicationIndoor
Mounting Bracket (optional)Wall mount
Waterproof gradeIP50
