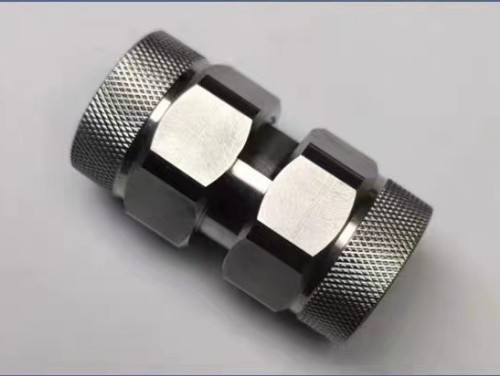

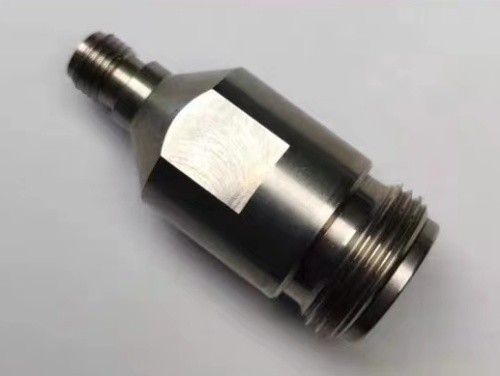

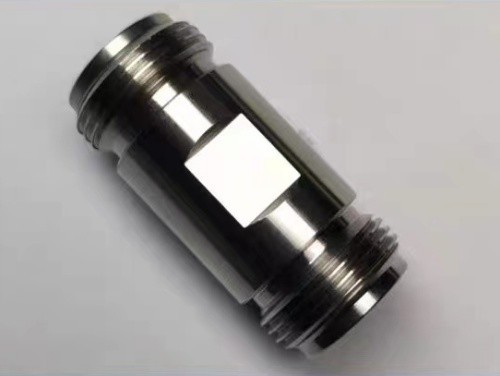

Electrical Specifications
Connector Impedance 50 ohm
Operating Frequency Band 0 - 18GHz
RF Operating Voltage, maximum (vrms) 2700.00 V
Outer Contact Resistance, maximum 0.40 mOhm
Inner Contact Resistance, maximum 1.50 mOhm
Insulation Resistance, minimum 10000 Mohm
VSWR <1.25
Insertion Loss, typical 0.05×√f dB
Mechanical Specifications
Mating cycles 500 cycles
Recommended mating torque 4-6Nm
PIM <-160dBc(@43dBm)
Environmental Specifications
Operating Temperature -40°C to +125 °C
Storage Temperature -55°C to +125 °C
Components
Name Material Plating
Body Stainless Steel Passivated
Inner Contact Becu/Phosphor copper Gold
Insulator PTFE
