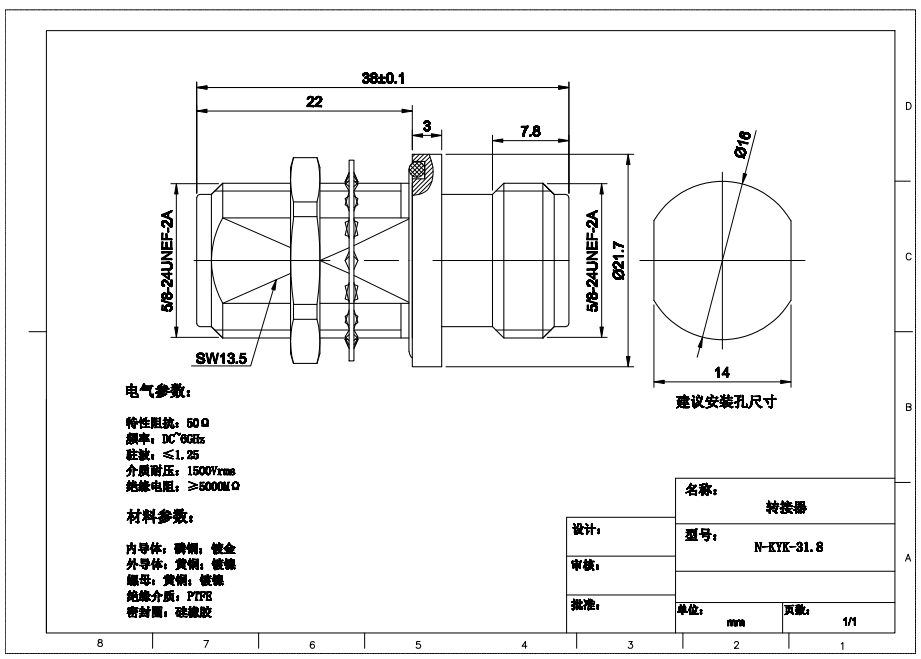

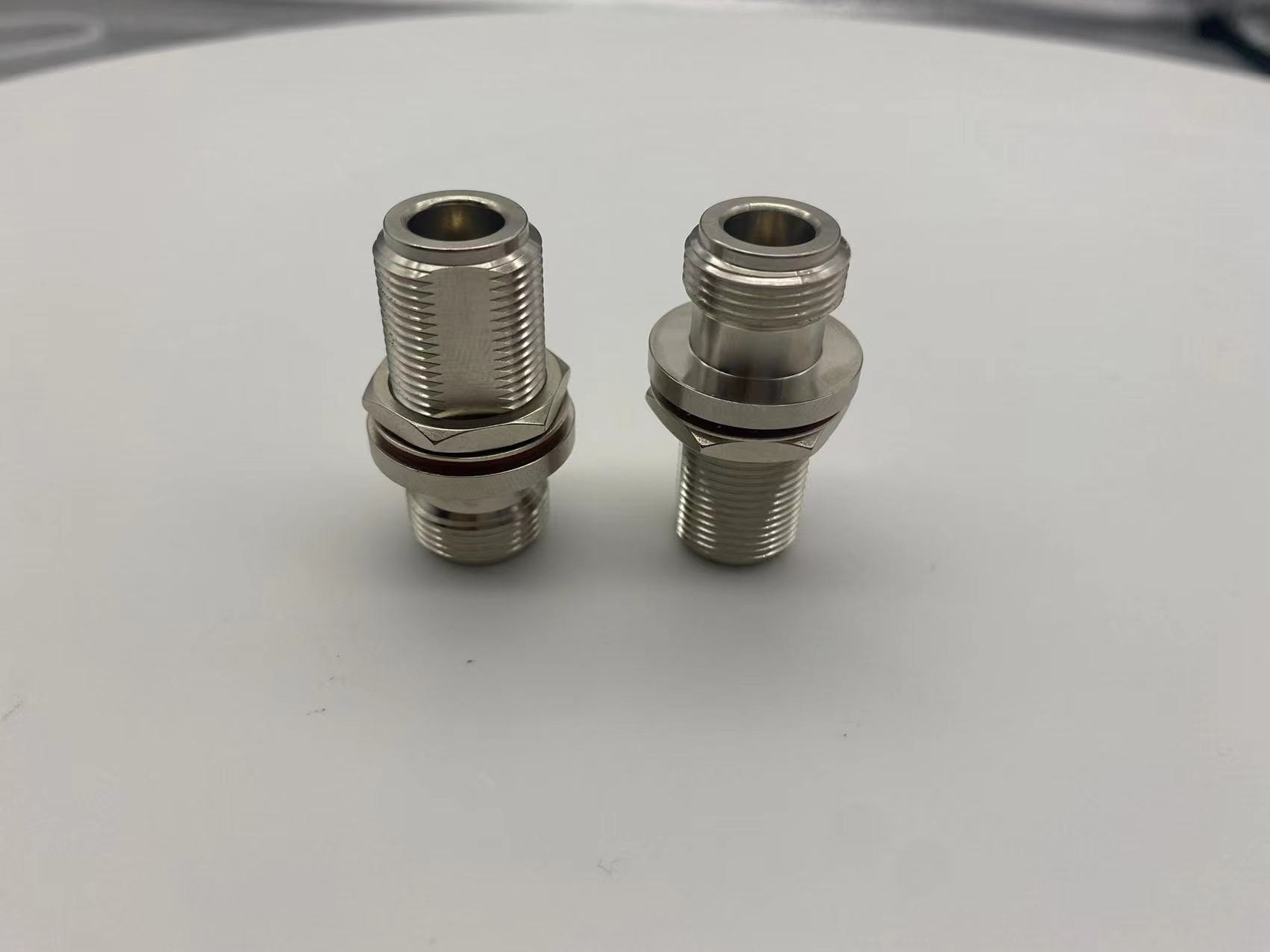

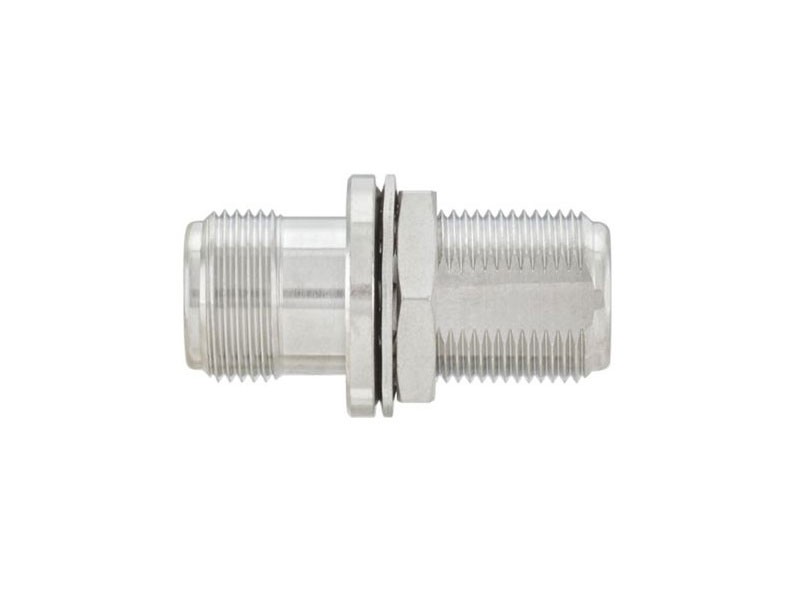

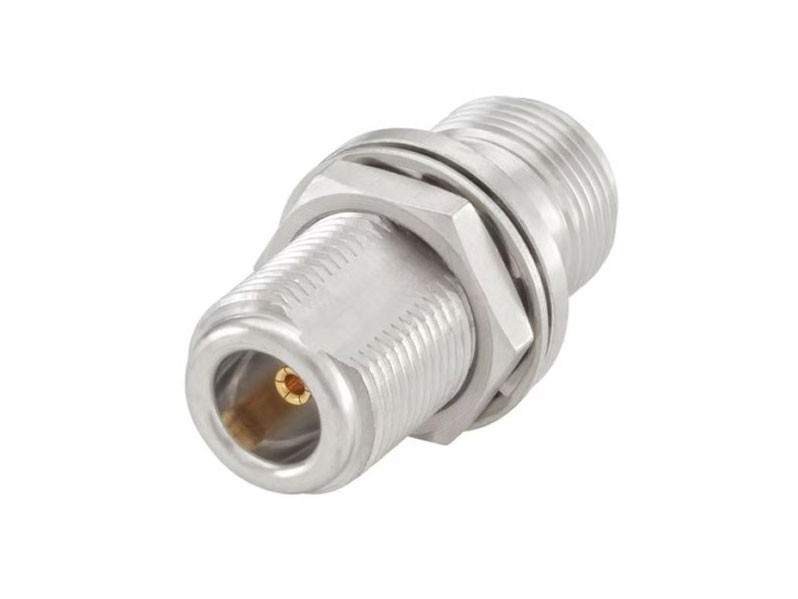

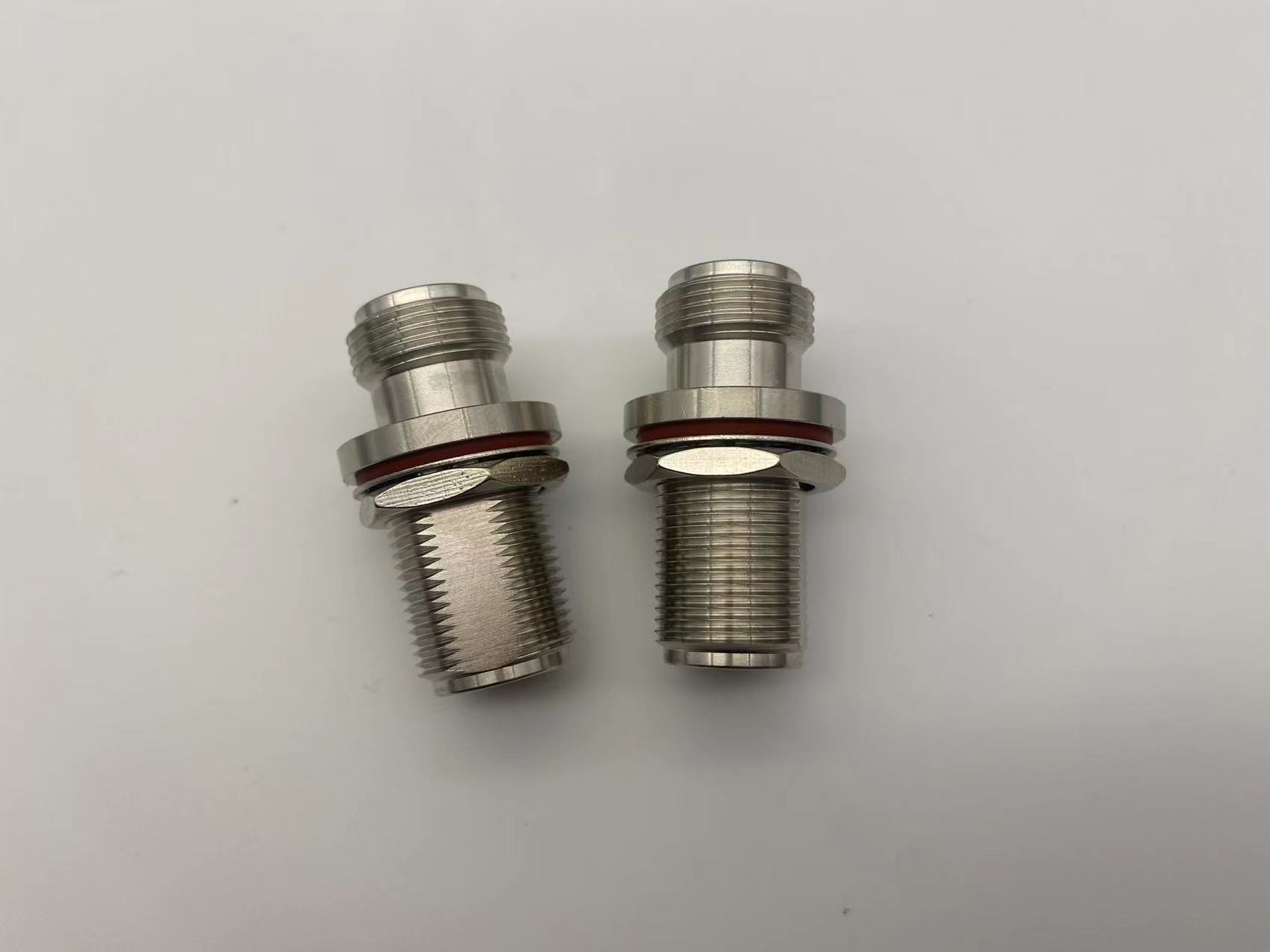

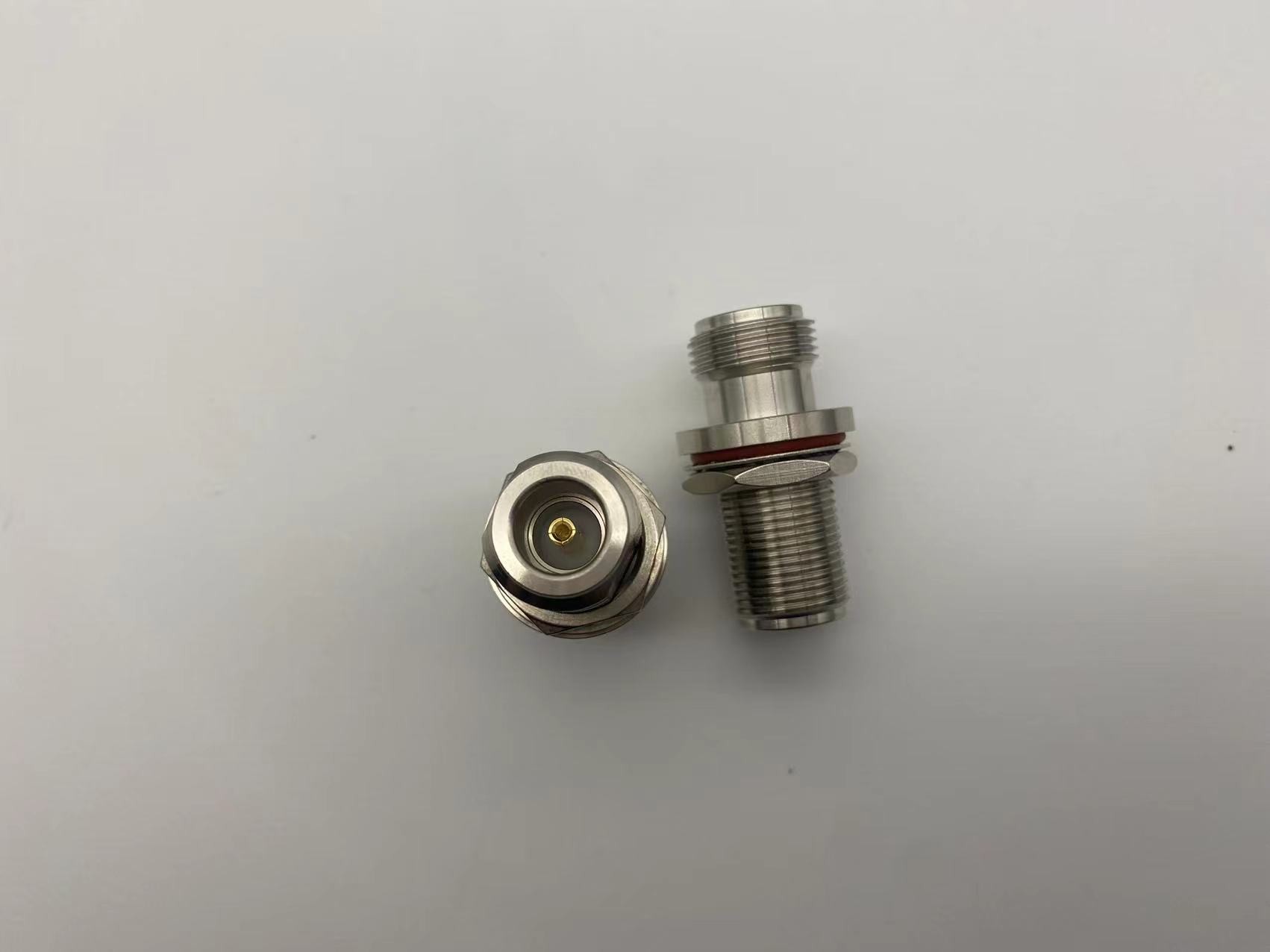

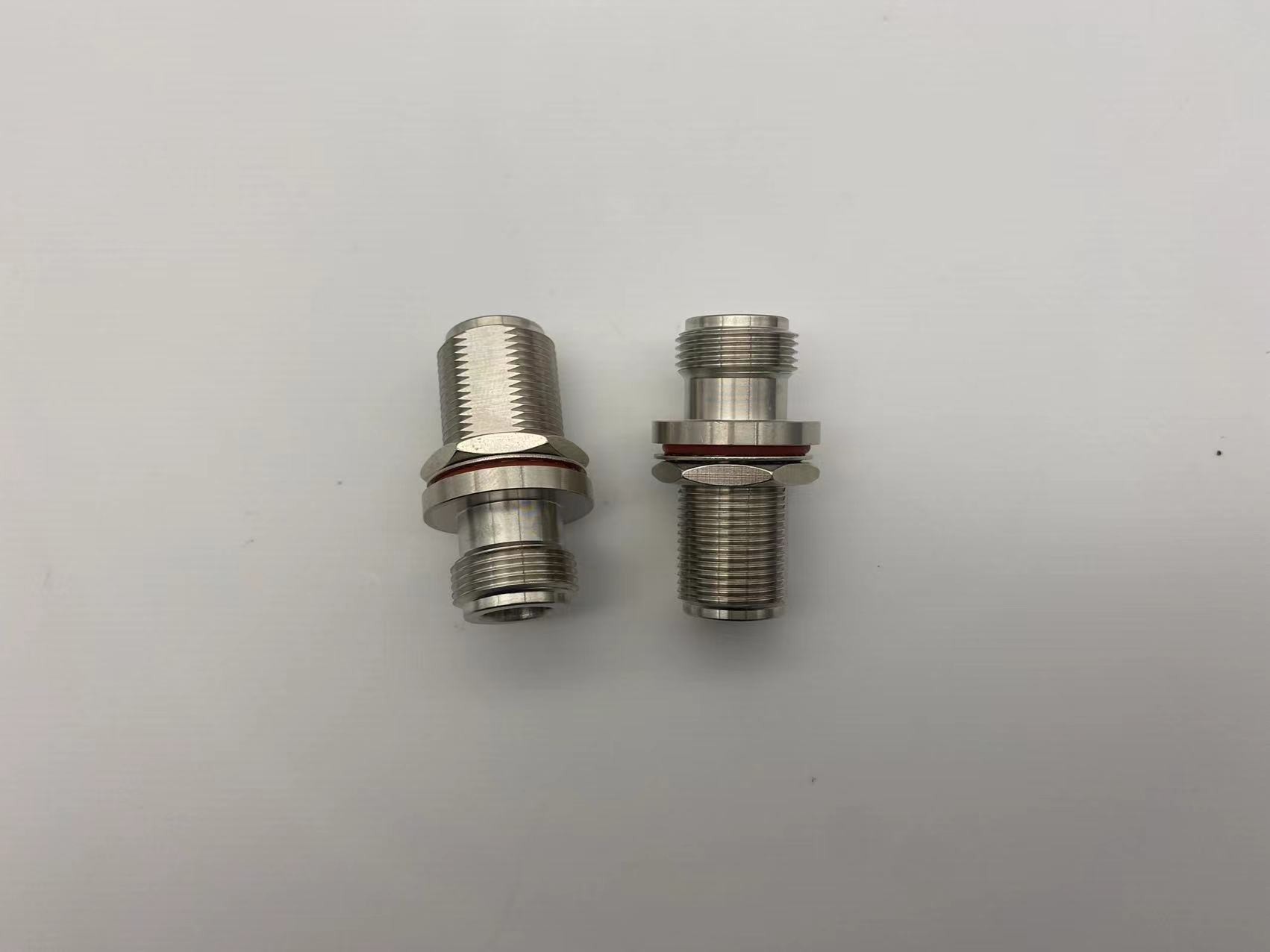

N Female to Female Bulkhead RF Coaxial Connector
N Female to Female Bulkhead RF Coaxial Connector
Product Detail

Electrical Specifications

Connector Impedance

50 Ohm

Operating Frequency Band

0 – 6 GHz

RF Operating Voltage, maximum (vrms)

1500.00 V

Outer Contact Resistance, maximum

0.20 Mohm

Inner Contact Resistance, maximum

1.00 Mohm

Insulation Resistance, minimum

5000 Mohm

VSWR

<1.25

Insertion Loss

Typical 0.05×√fdB


Mechanical Specifications

Mating Cycles

500 Cycles

Recommended Mating Torque

4-6 Nm


Environmental Specifications

Operating Temperature

-40°C to +125°C

Storage Temperature

-55°C to +125°C


Components

Name

Material

Plating

Body

Brass

Ni

Inner Contact

Phosphor copper

Gold

Insulator

PTFE

Seals

Silicone Rubber



Keywords

Coaxial Connector,N Connector
