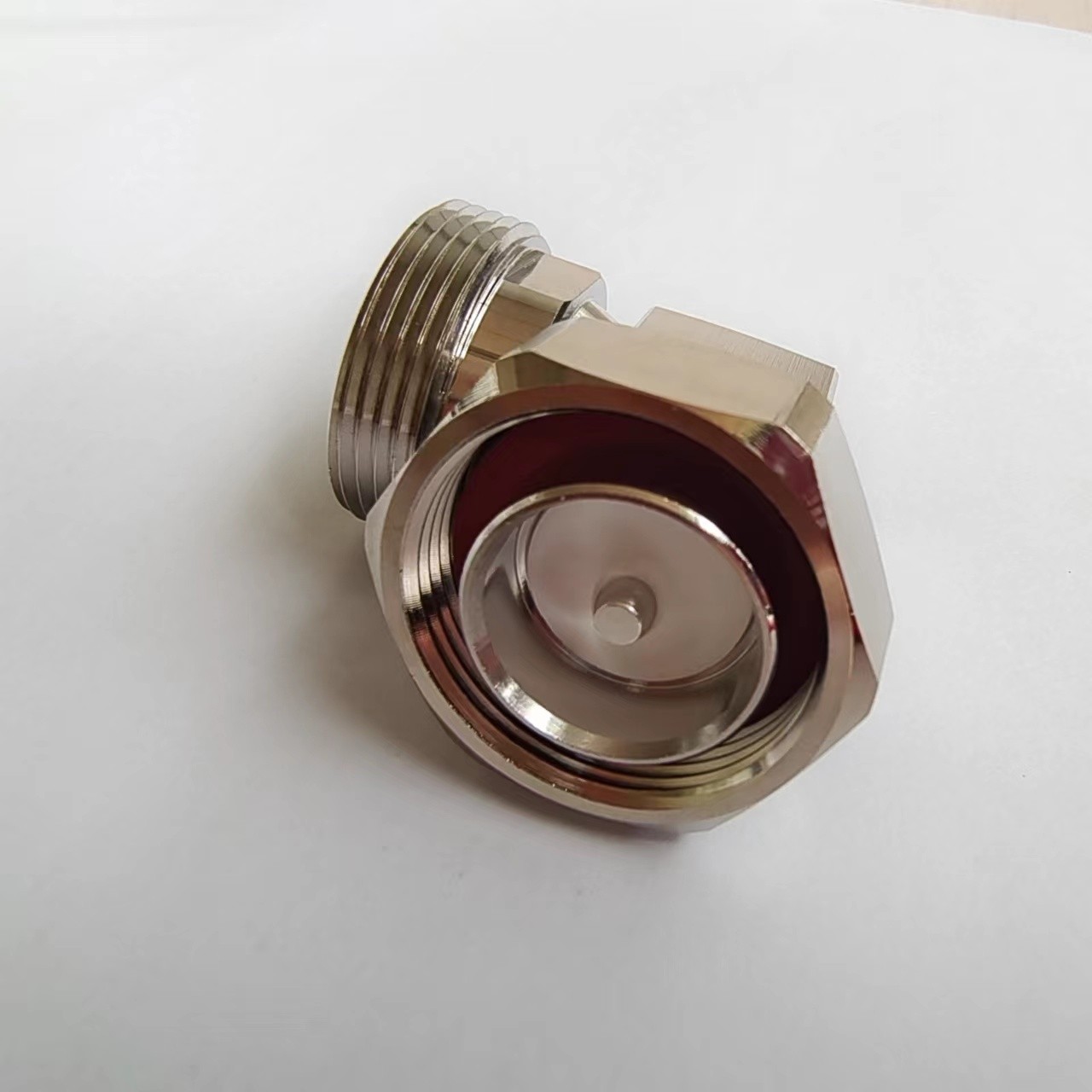

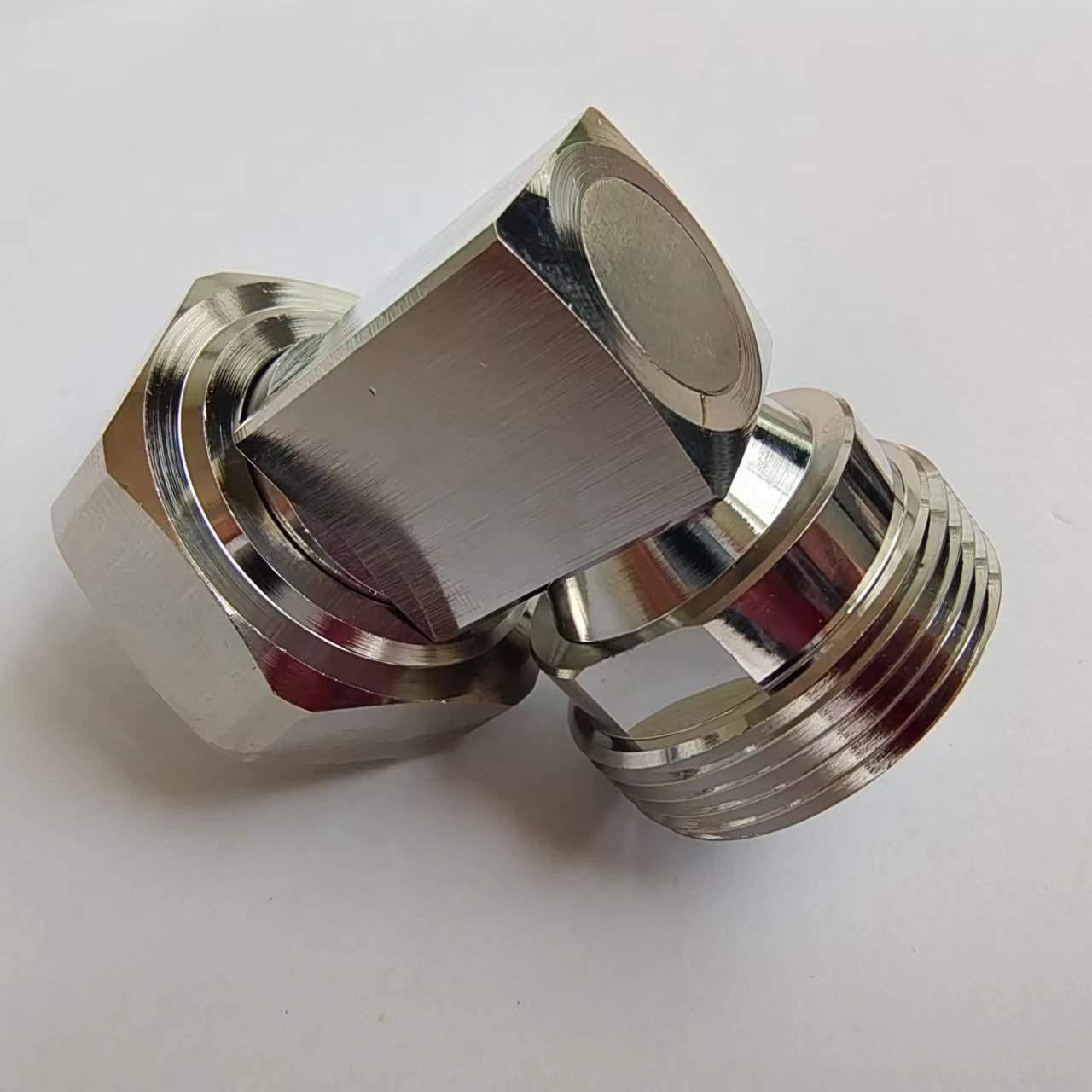

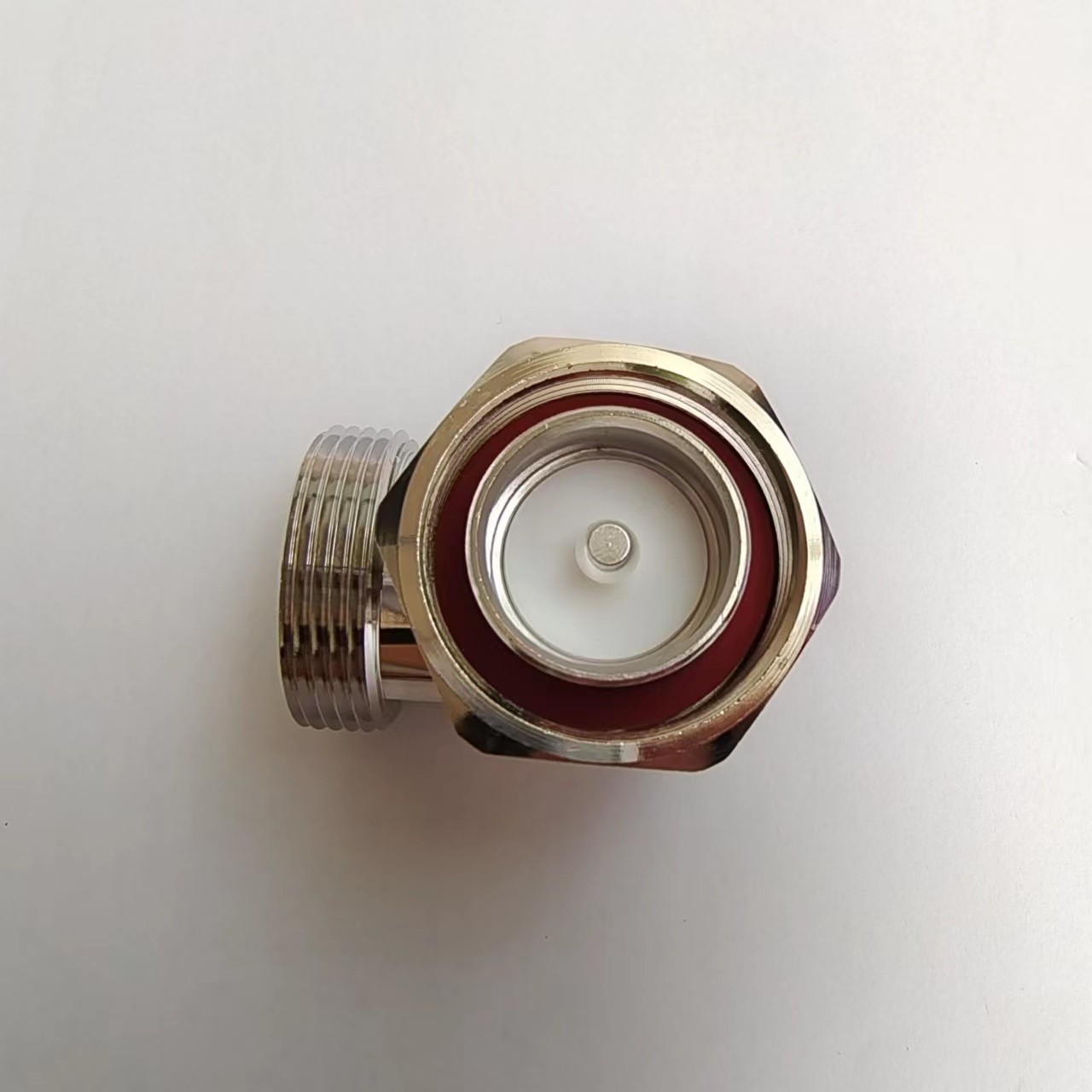

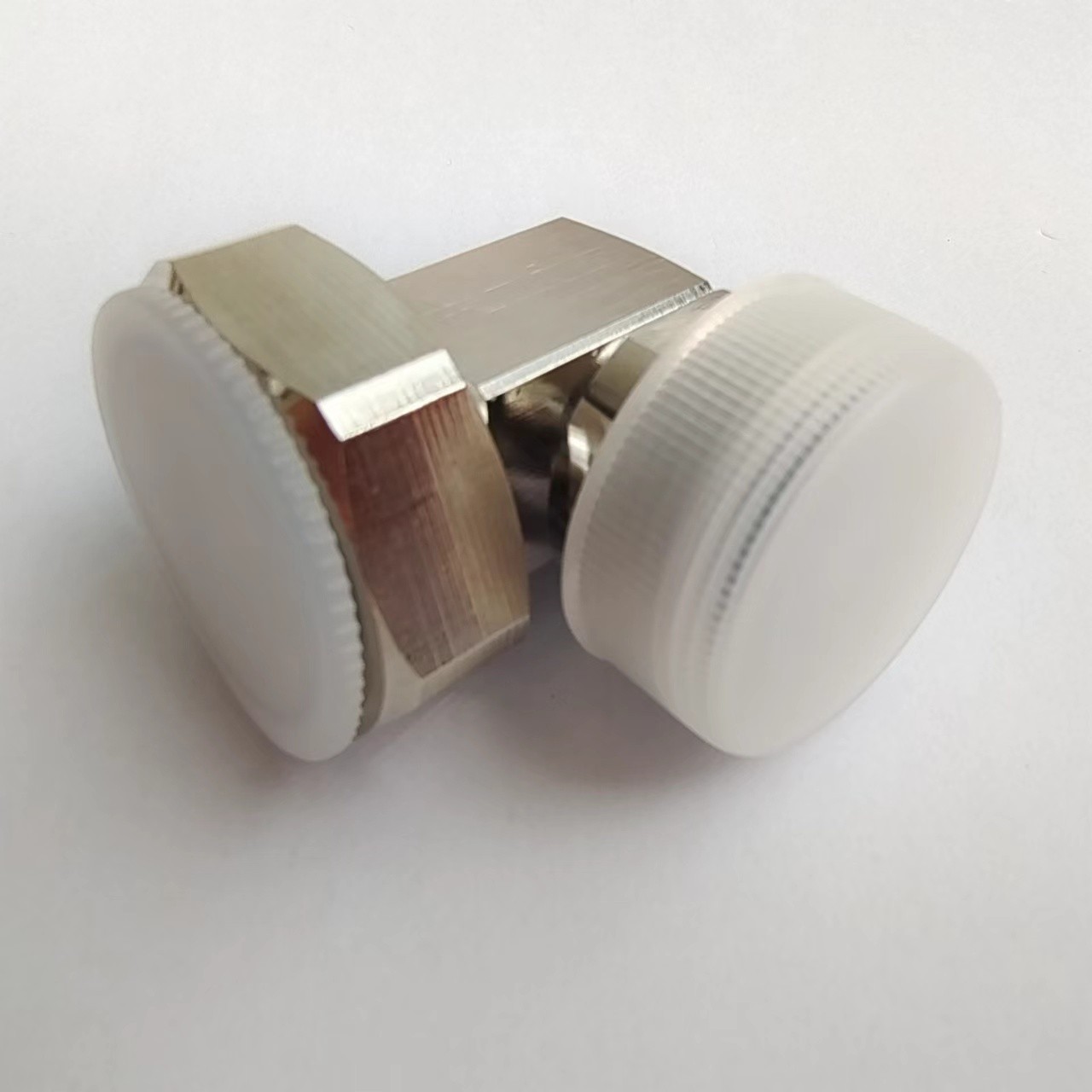

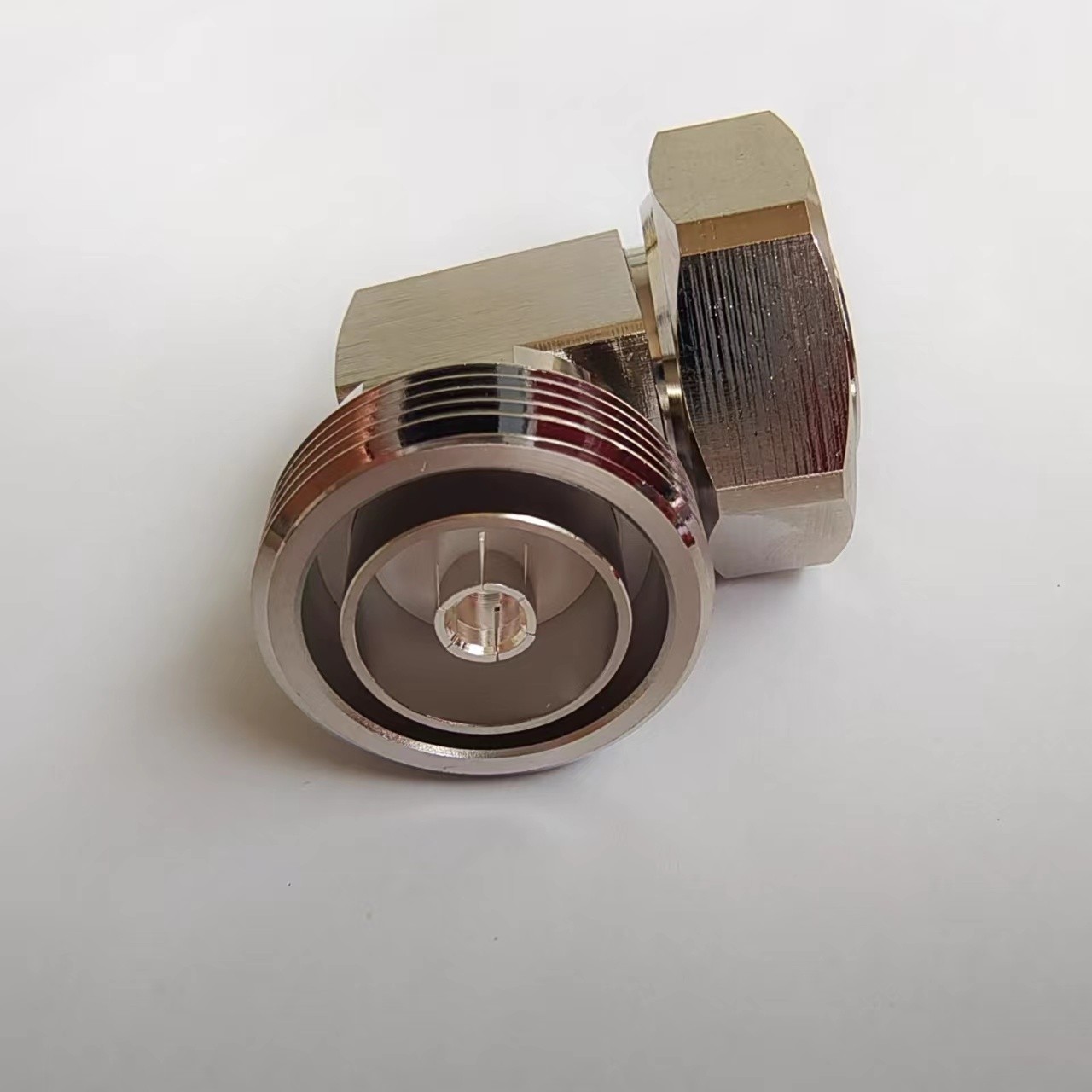

Right Angle L29 DIN 7/16 Male to L29 DIN 7/16 Female RF Coaxial Adapter
Right Angle L29 DIN 7/16 Male to L29 DIN 7/16 Female RF Coaxial Adapter
Product Detail



Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 3 GHz
RF Operating Voltage, maximum (vrms)2700.00 V
Outer Contact Resistance, maximum0.40 Mohm
Inner Contact Resistance, maximum1.00 Mohm
VSWR<1.15
Insertion LossTypical 0.05×√fdB
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque25-27 Nm
PIM <-155 dBc（@43dBm）
Environmental Specifications
Operating Temperature-40°C to +85°C
Components
NameMaterialPlating
BodyBrassTri-metal
Inner ContactBrassSilver
InsulatorPTFE
NutBrassNi
