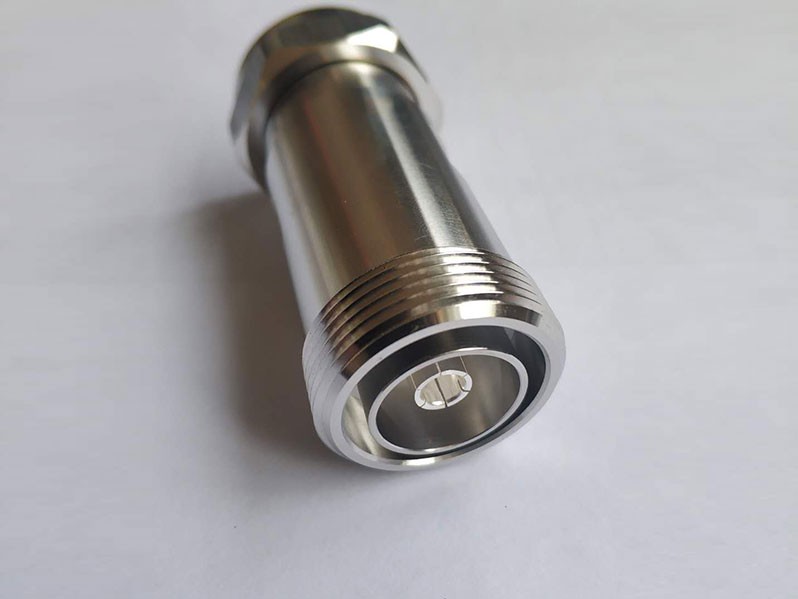

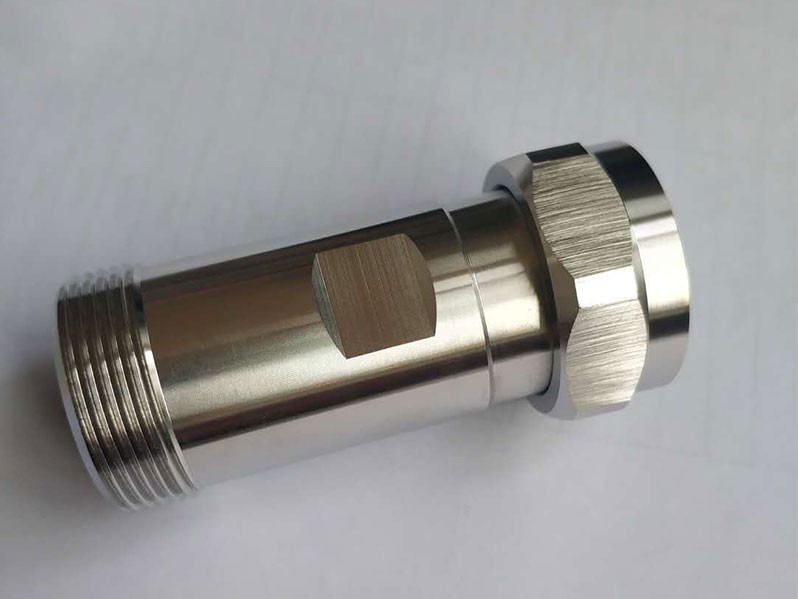

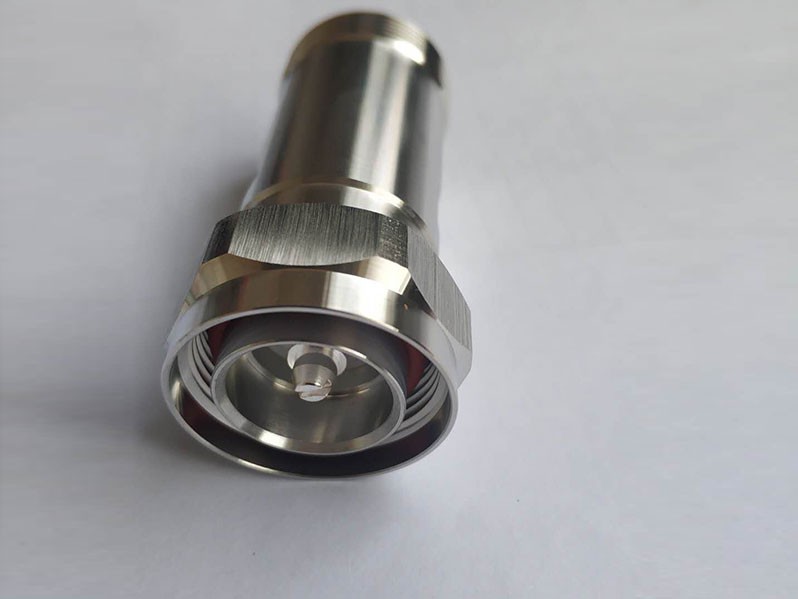

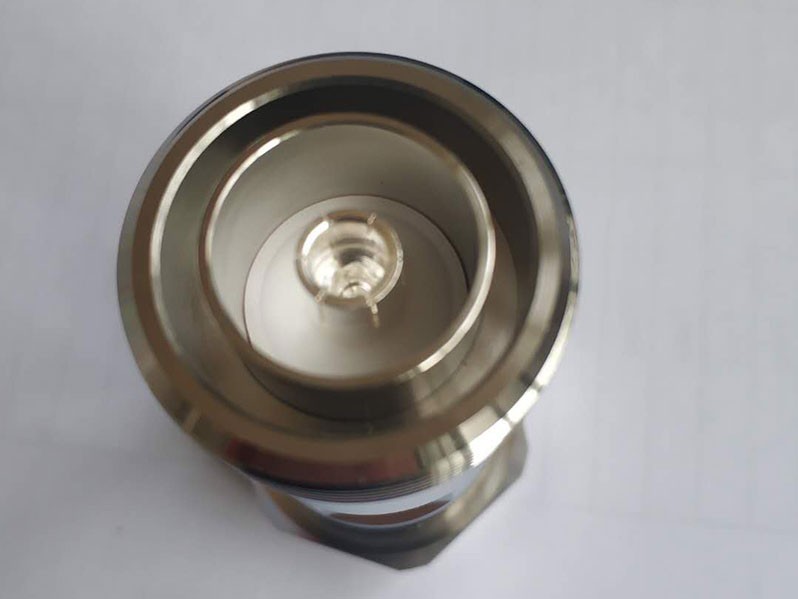

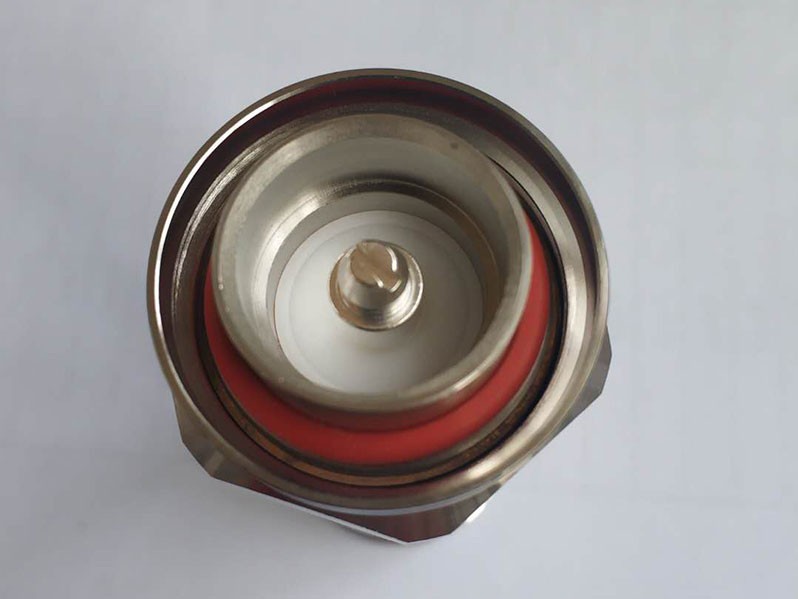

DIN Male to Female DC BLOCK
DIN Male to Female DC BLOCK
Product Detail

Electrical Specifications

Frequency Range

694-2690 MHz

Insertion Loss

<0.1 dB

Return Loss

20 dB

Impedance

50 Ohm

Maximum Input Power

750 W

Intermodulation(@2x43 dBm)

<160 dBc; Typ<165dBc

DC Isolation

1 KV

MF Isolation

25 dB 0.1 - 2.276MHz


Connectors

7-16 according to IEC 61169-4

Port 1

7-16 Female IEC 61169-4

Port 2

7-16 Female


Mechanical Specifications

Length

<75mm

Weight

Max 0.3 Kg

Coupling Nut Torque

Min 35 Nm

Labelling

TBD

Surface Treatment

Inner Conductor:Silver; Out Conductor:Trimetal


Environmental Specifications

Operating Temperature

-40°C to +65 °C

Ingress Protection

IP67

RoHS Compliant

2011/65/eu

Operation

ETSI EN 300 019-2-4
