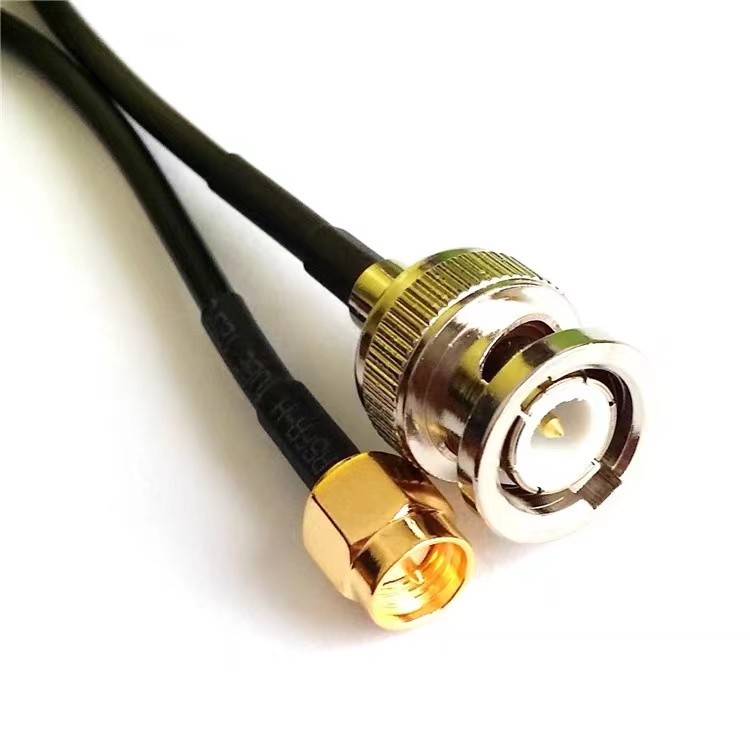

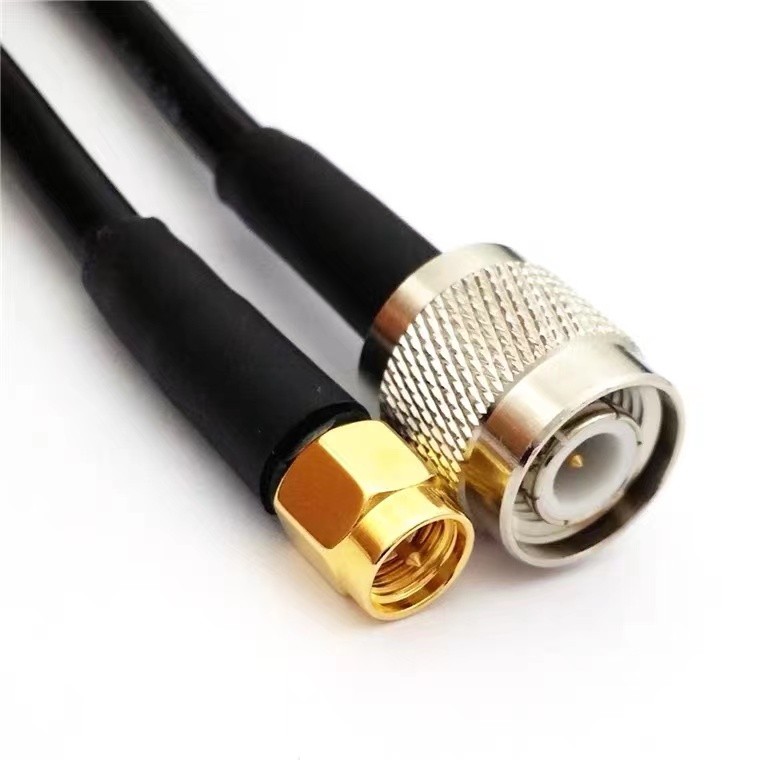

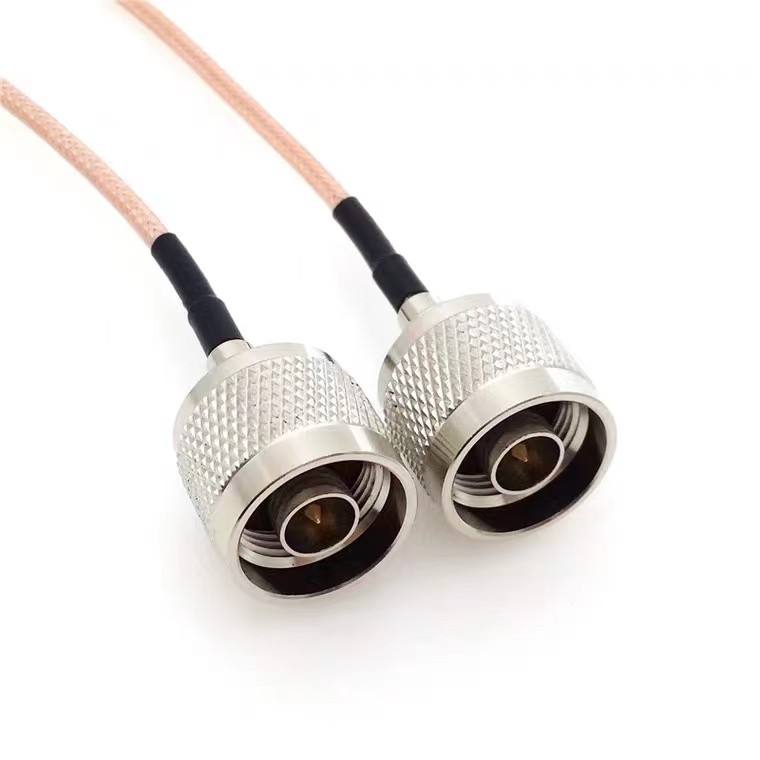

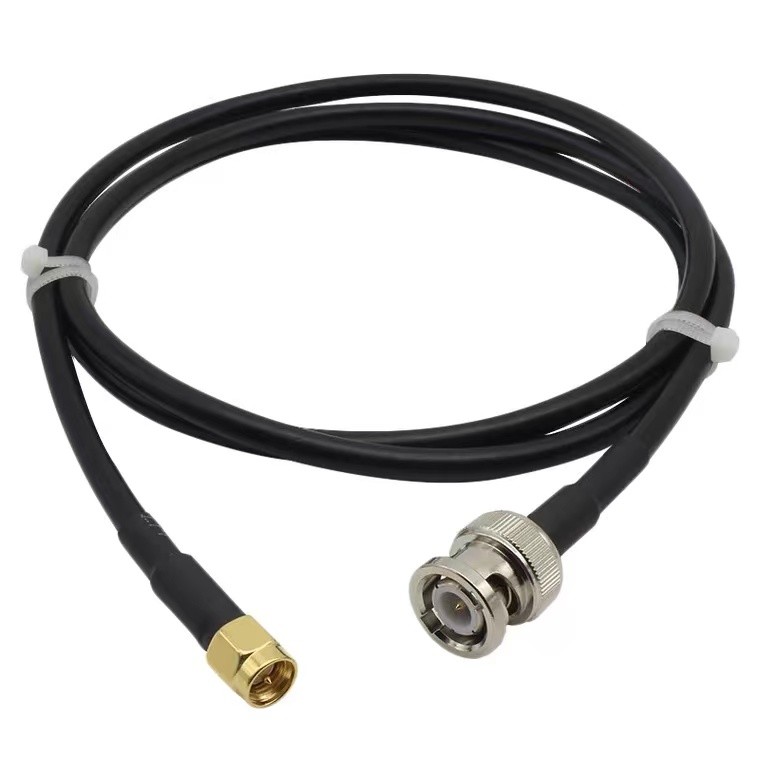

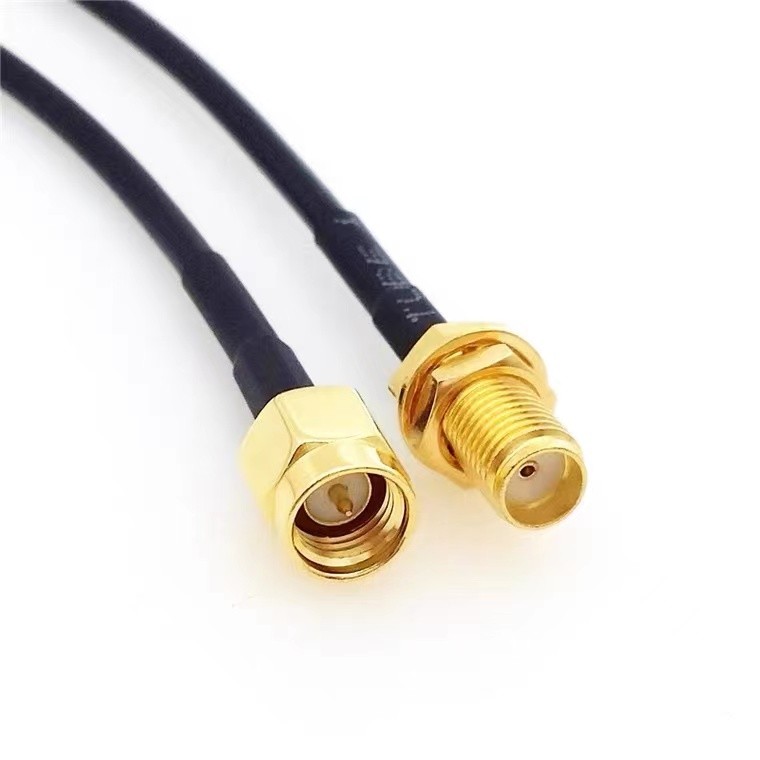

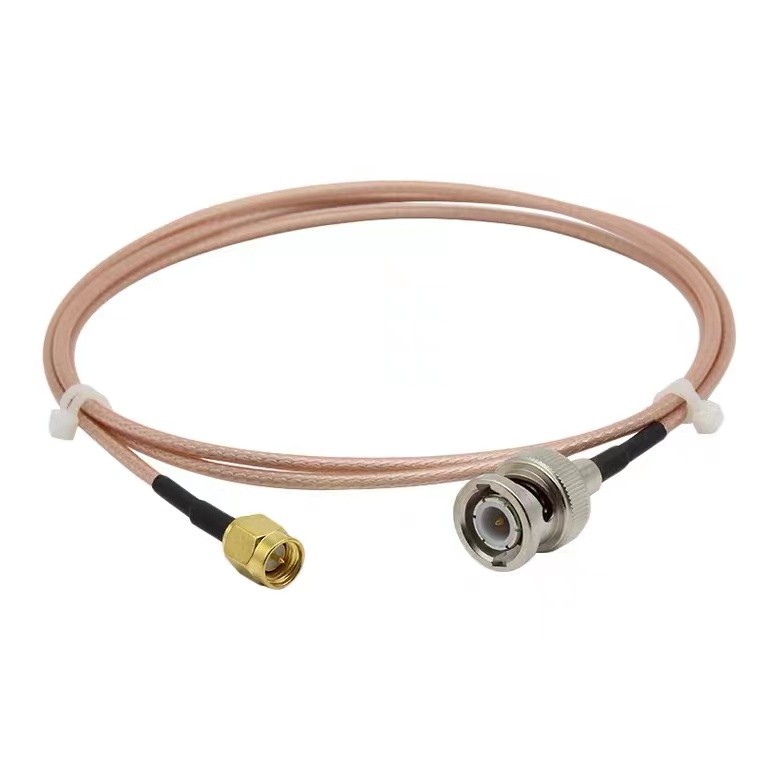

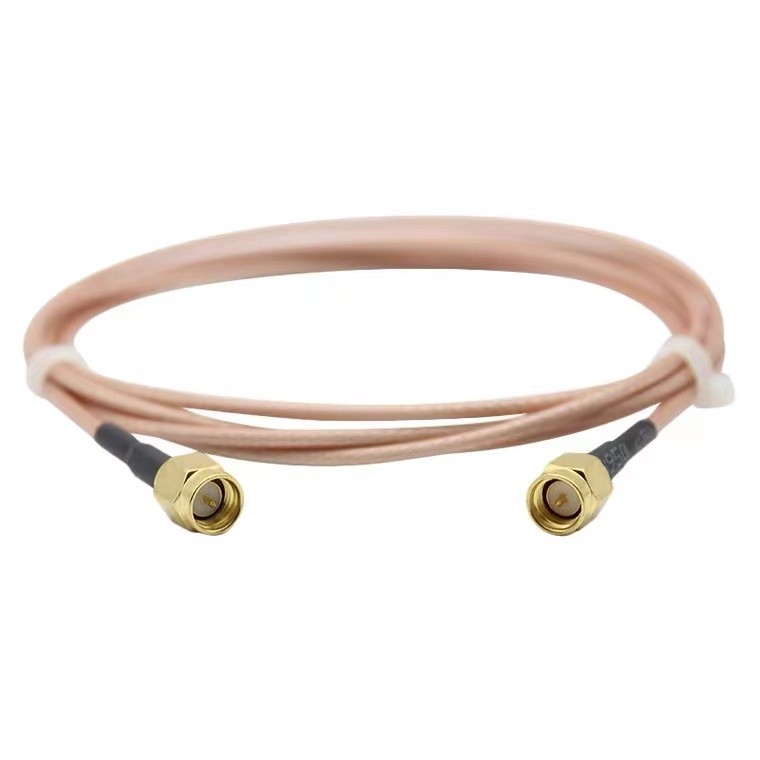

RG58, RG174, RG316 RF coaxial cable assemble with N, SMA, BNC, TNC connectors
RG58, RG174, RG316 RF coaxial cable assemble with N, SMA, BNC, TNC connectors
Product Detail

Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 3 GHz
RF Operating Voltage, maximum (vrms)1500.00 V
Outer Contact Resistance, maximum0.20 Mohm
Inner Contact Resistance, maximum1.00 Mohm
Insulation Resistance, minimum5000 Mohm
VSWR<1.3
Insertion LossTypical 0.05×√fdB+Cable Insertion Loss
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque0.6-2.5 Nm
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodyBrassTri-metal
Inner ContactBrassGold
InsulatorPTFE
