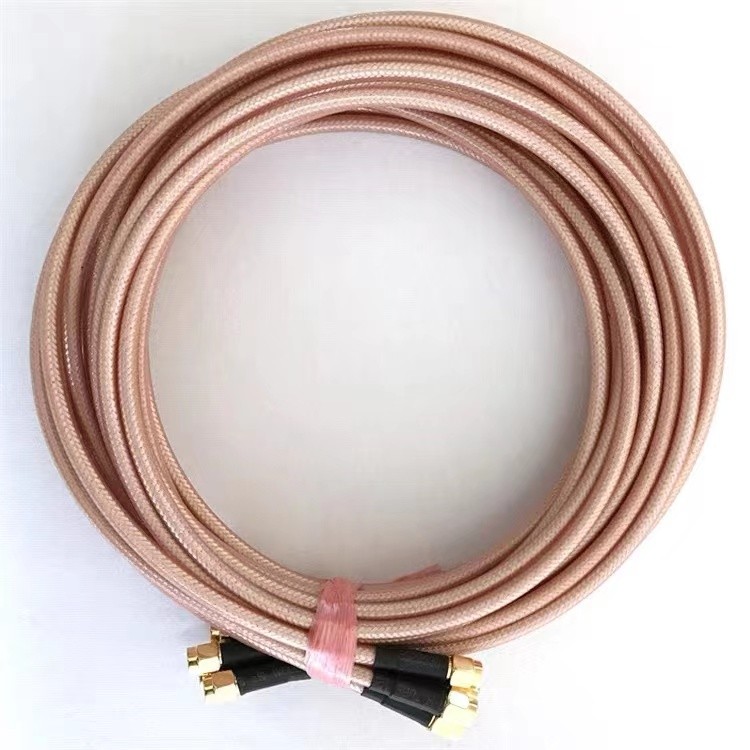

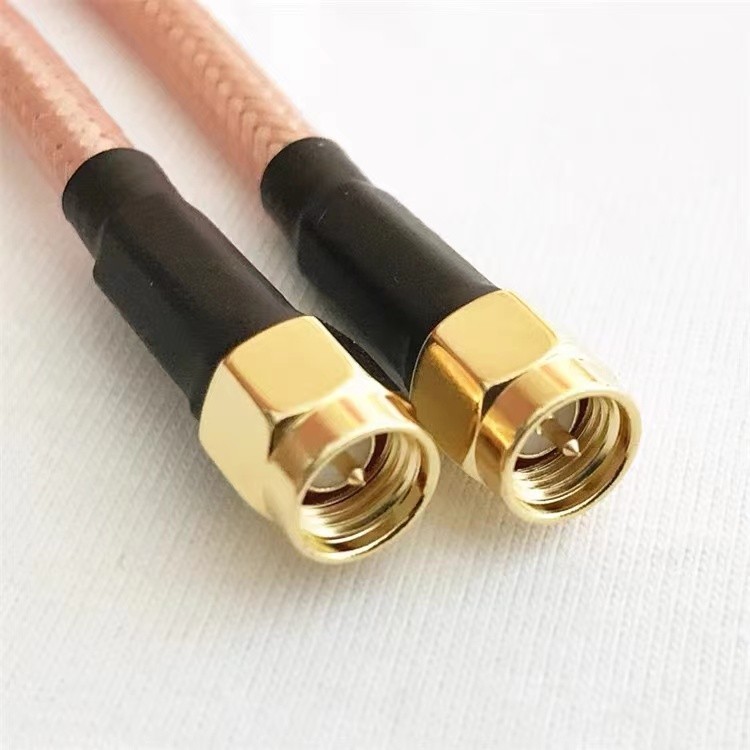

SMA Male to Male RF Coaxial Cable Assembly RG142
SMA Male to Male RF Coaxial Cable Assembly RG142
Product Detail


Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 6 GHz
RF Operating Voltage, maximum (vrms)1500.00 V
Outer Contact Resistance, maximum2.00 Mohm
Inner Contact Resistance, maximum3.00 Mohm
Insulation Resistance, minimum5000 Mohm
VSWR<1.15
Insertion LossTypical 0.05×√fdB+Cable Insertion Loss
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque0.7-1.1 Nm
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodyBrassTernary alloy
Inner ContactBeryllium BronzeGold
InsulatorPTFE
