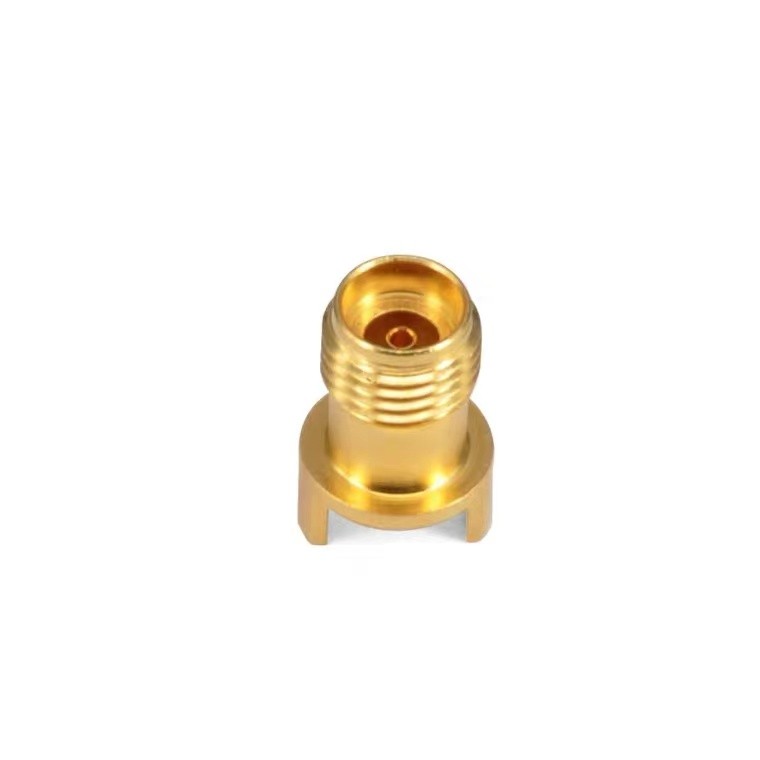

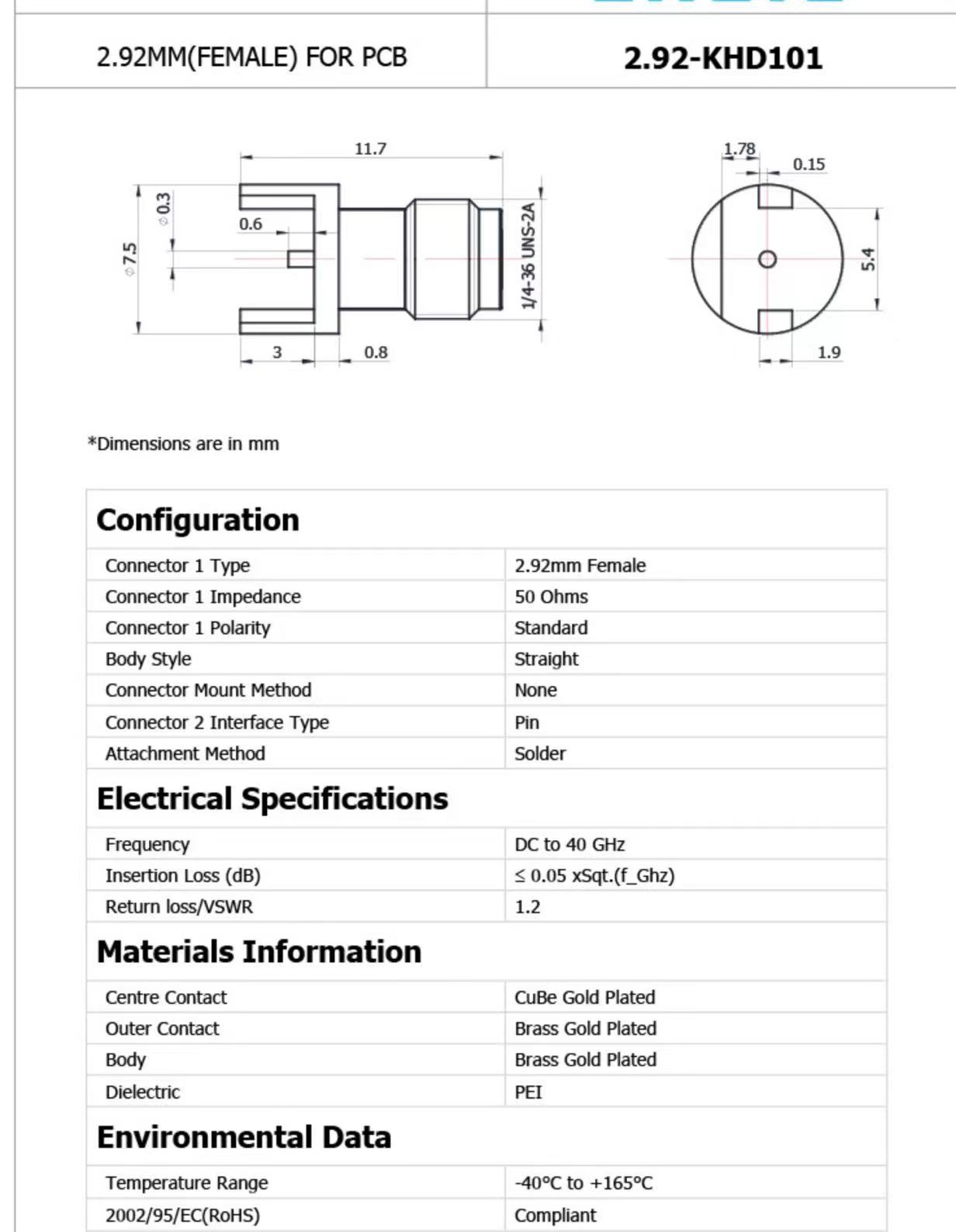

Millimeter wave RFconnector 40GHz 2.92mm Edge Mount Connector for 1.78mm PCB
Millimeter wave RFconnector 40GHz 2.92mm Edge Mount Connector for 1.78mm PCB
Product Detail

Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 40 GHz
RF Operating Voltage, maximum (vrms)1000.00 V
Outer Contact Resistance, maximum2.00 Mohm
Inner Contact Resistance, maximum3.00 Mohm
Insulation Resistance, minimum5000 Mohm
VSWR<1.2
Insertion LossTypical 0.05×√fdB
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque0.7-1.1 Nm
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodyBrassGold
Inner ContactBeryllium BronzeGold
InsulatorPEI
