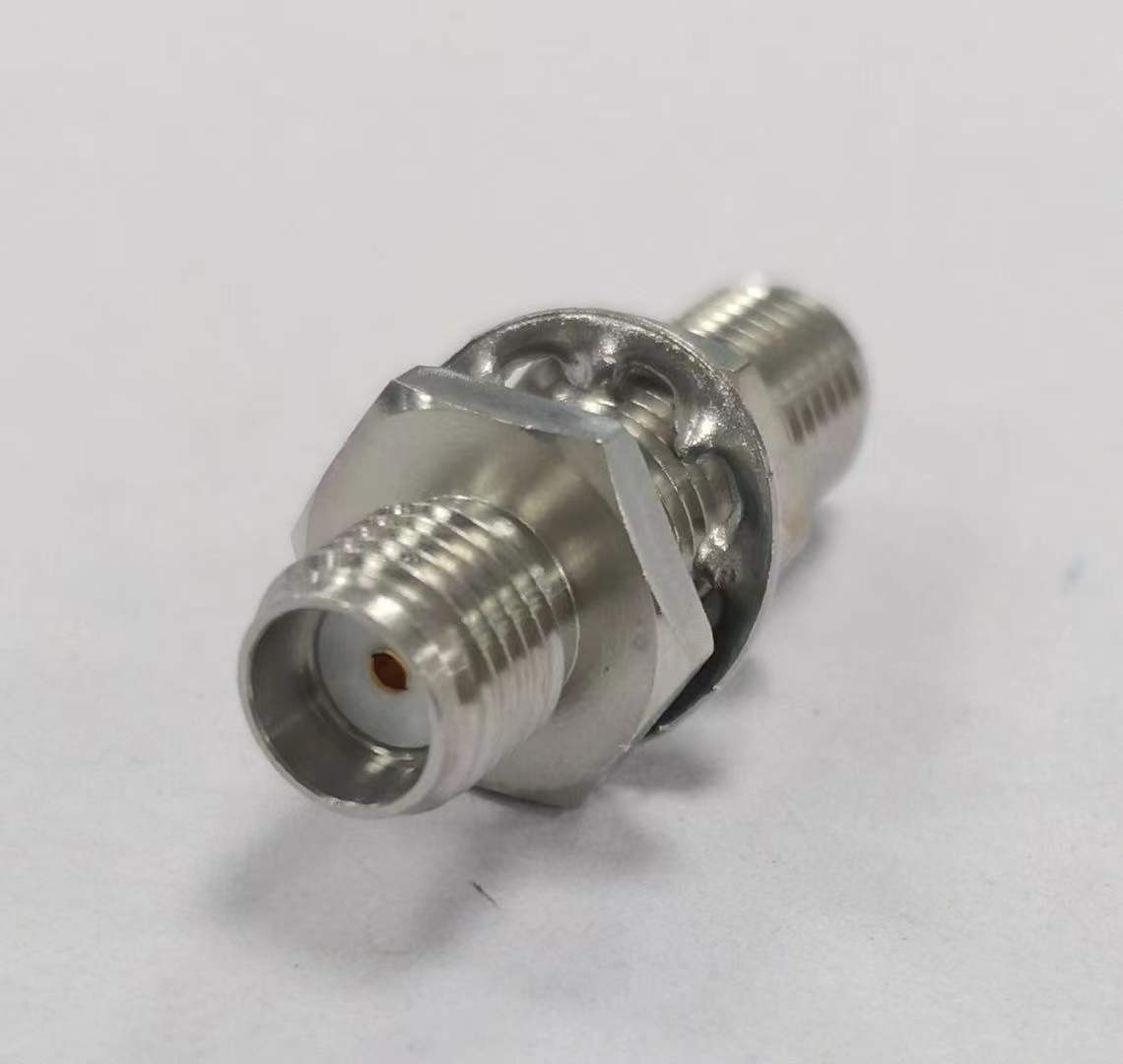

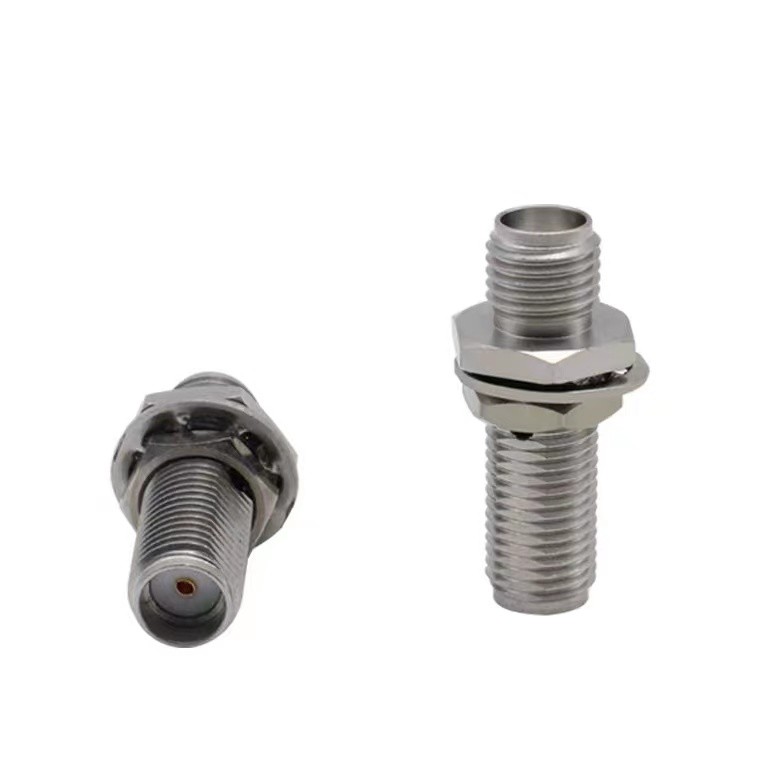

SMA male to SMA bulkhead female RF coaxial adapter, SS body, 18GHz
SMA male to SMA bulkhead female RF coaxial adapter, SS body, 18GHz
Product Detail


Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 18 GHz
RF Operating Voltage, maximum (vrms)1000.00 V
Outer Contact Resistance, maximum2.00 Mohm
Inner Contact Resistance, maximum3.00 Mohm
Insulation Resistance, minimum5000 Mohm
VSWR<1.25@18GHz
Insertion LossTypical 0.05×√fdB
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque0.7-1.1 Nm
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodyStainsless steelPassivating
Inner ContactBeryllium Bronze Gold
InsulatorPTFE


Keywords

SMA Connector,SS boday connector
