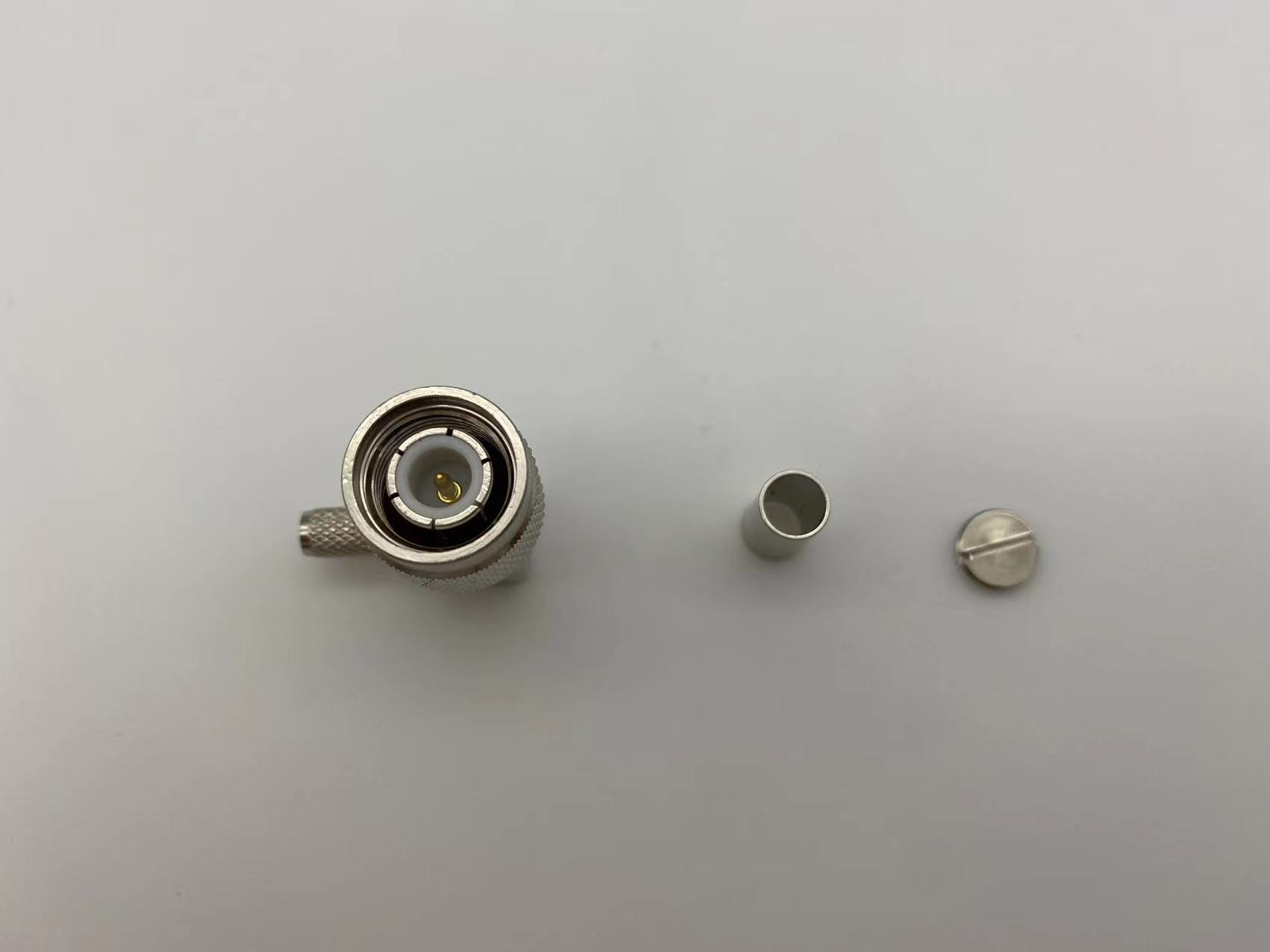

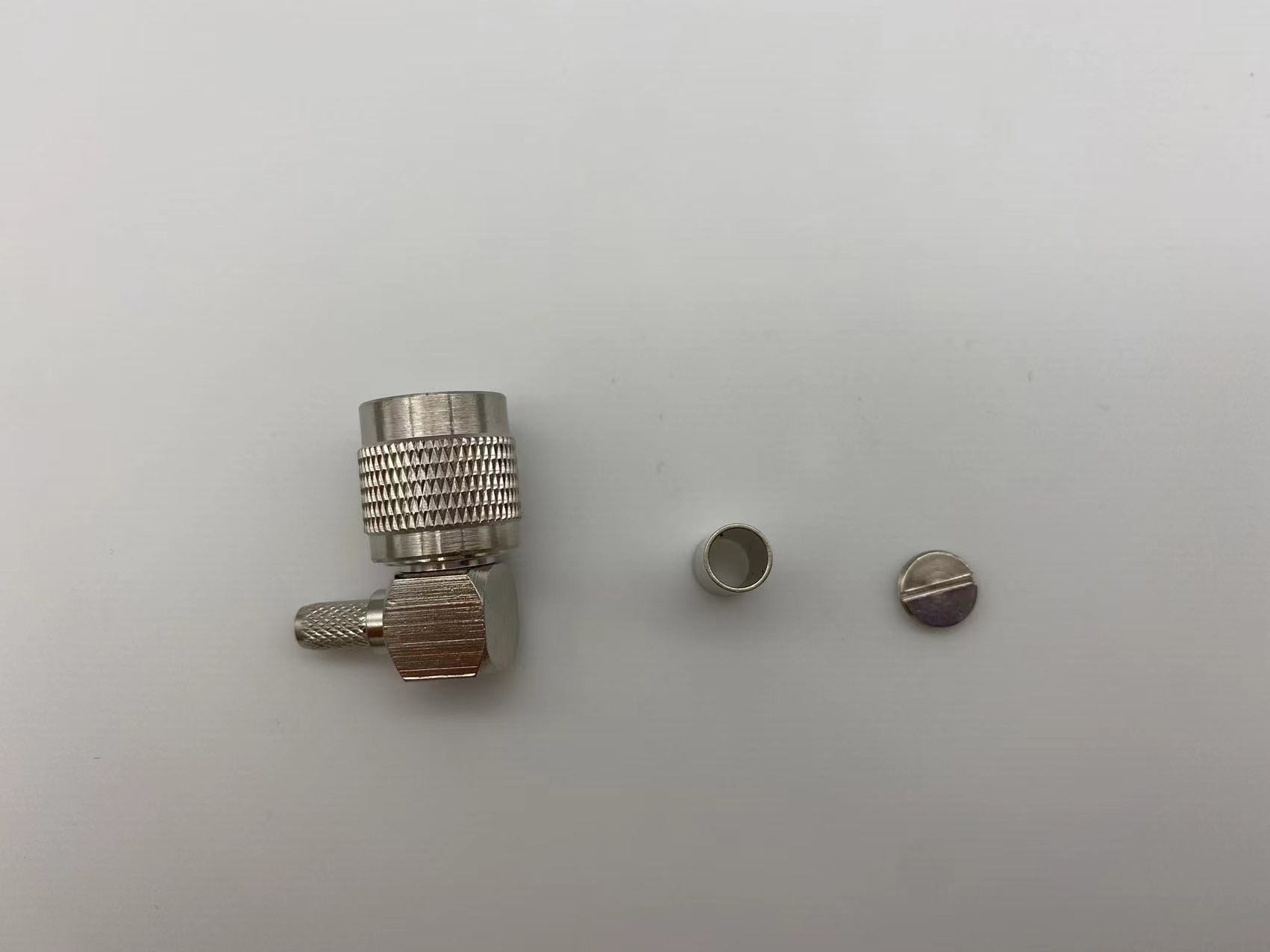

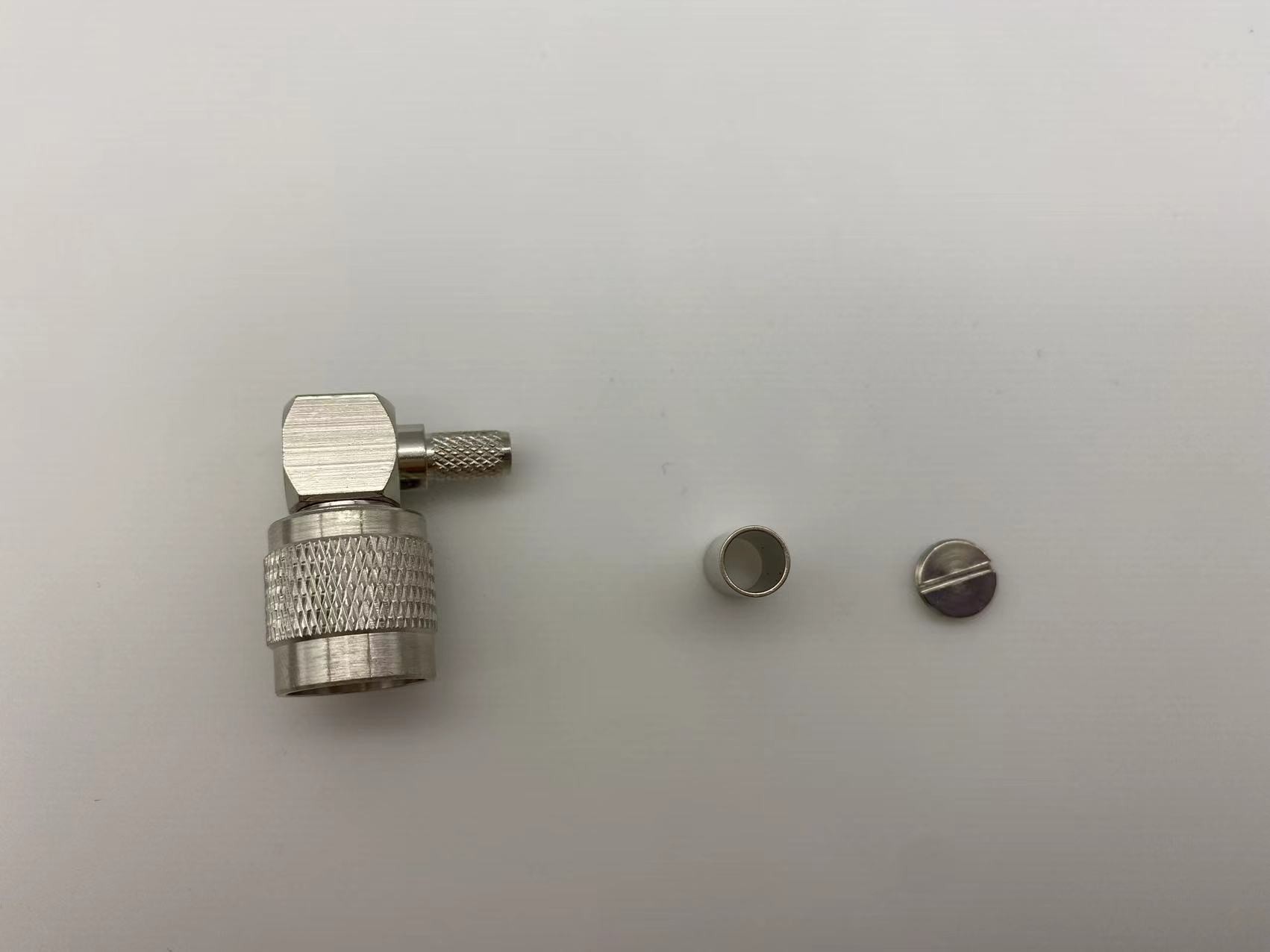

TNC male right angle crimp connector for RG58, RG142
TNC male right angle crimp connector for RG58, RG142
Product Detail
Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 3 GHz
RF Operating Voltage, maximum (vrms)1000.00 V
Outer Contact Resistance, maximum0.20 Mohm
Inner Contact Resistance, maximum1.50 Mohm
Insulation Resistance, minimum5000 Mohm
VSWR<1.25
Insertion LossTypical 0.05×√fdB
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque0.7-1.1 Nm
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodyBrassTri-metal
Inner ContactBrassGold
InsulatorPTFE
