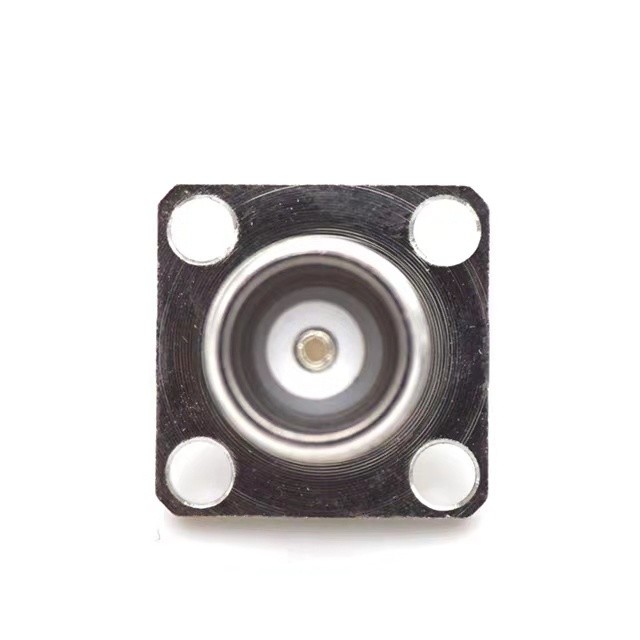

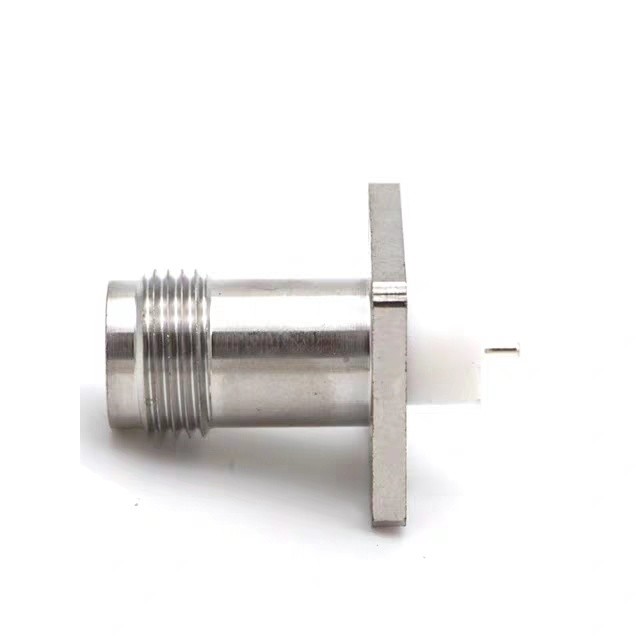

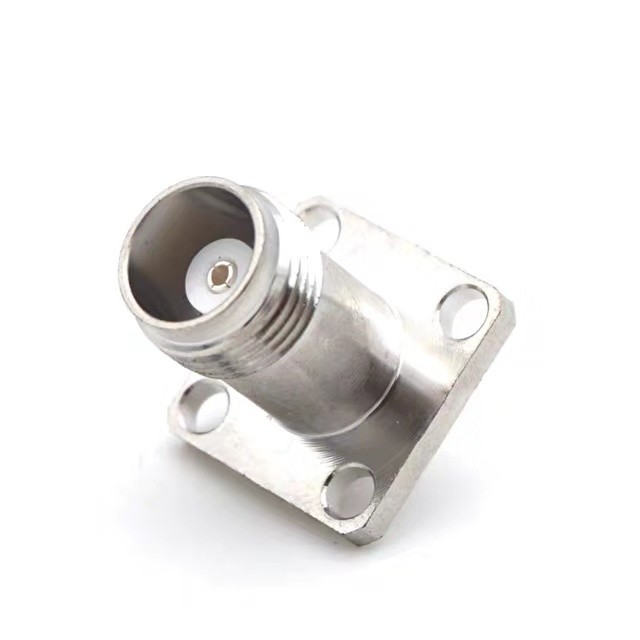

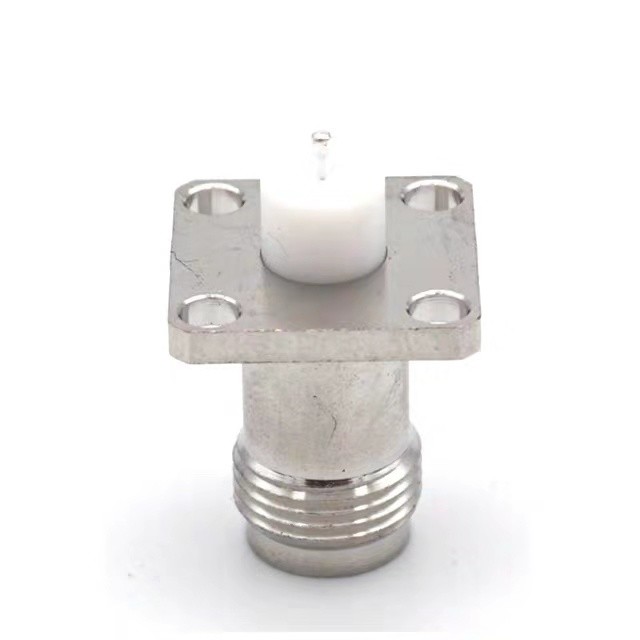

TNC Female 4 Hole Flange PCB Mount RF Coaxial Connector
TNC Female 4 Hole Flange PCB Mount RF Coaxial Connector
Product Detail
Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 3 GHz
RF Operating Voltage, maximum (vrms)1000.00 V
Outer Contact Resistance, maximum0.20 Mohm
Inner Contact Resistance, maximum1.50 Mohm
Insulation Resistance, minimum5000 Mohm
VSWR<1.15
Insertion LossTypical 0.05×√fdB
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque0.7-1.1 Nm
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodyBrassTri-metal
Inner ContactBeryllium BronzeGold
InsulatorPTFE


Keywords

Coaxial Connector,PCB Connector,TNC Connector
