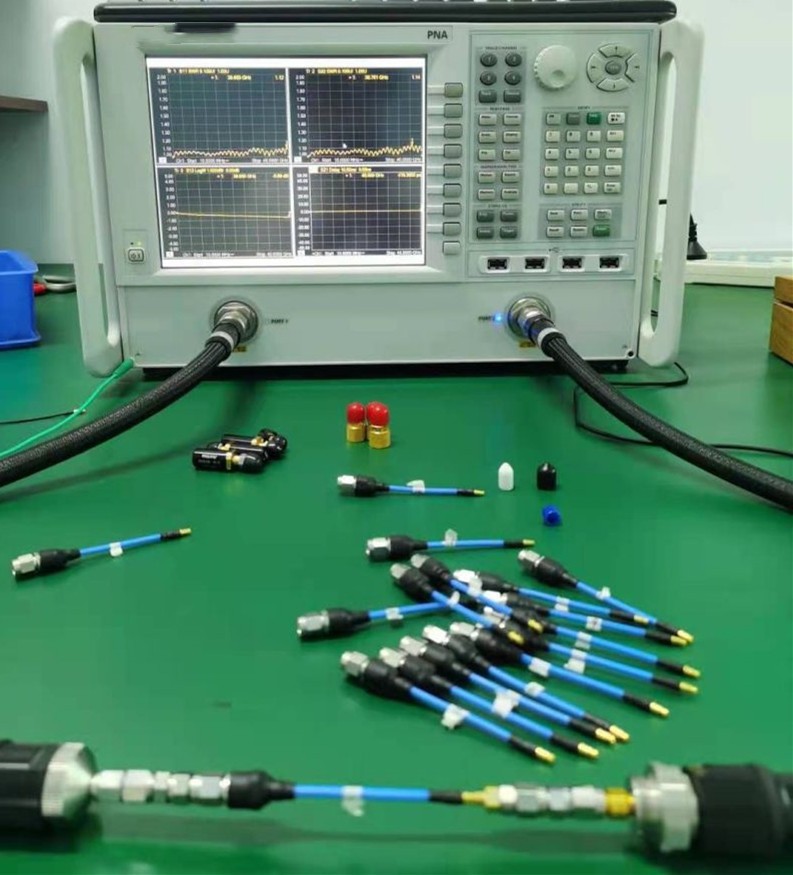

SMPM/mini SMP male to 2.92mm/SMK male RF test cable assembly
SMPM/mini SMP male to 2.92mm/SMK male RF test cable assembly
Product Detail


Electrical Specifications
Connector Impedance50 ohm
Operating Frequency Band0 - 40GHz
RF Operating Voltage, maximum (vrms)1000.00 V
Outer Contact Resistance, maximum2.00 mOhm
Inner Contact Resistance, maximum3.00 mOhm
Insulation Resistance, minimum5000 Mohm
VSWR<1.30
Insertion Losstypical 0.05×√f dB+IL(L)
Mechanical Specifications
Mating cycles500 cycles
Recommended mating torque0.7-1.1Nm
Environmental Specifications
Operating Temperature-40°C to +125 °C
Storage Temperature-55°C to +125 °C
Components
NameMaterialPlating
BodyStainless steelpassivation
Inner ContactPhosphor copperGold
InsulatorPEI---
