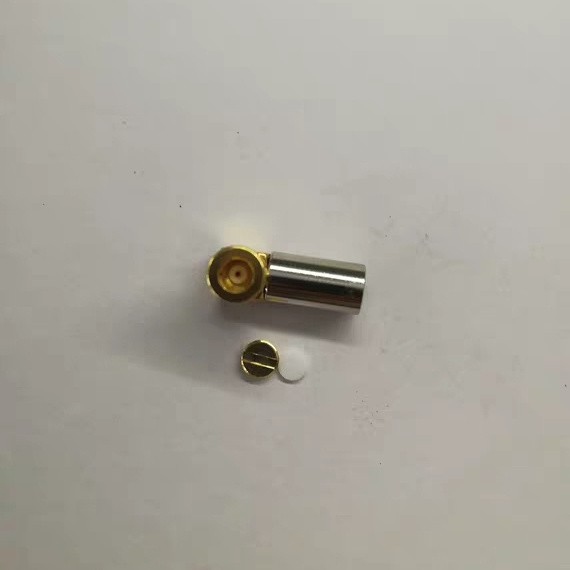

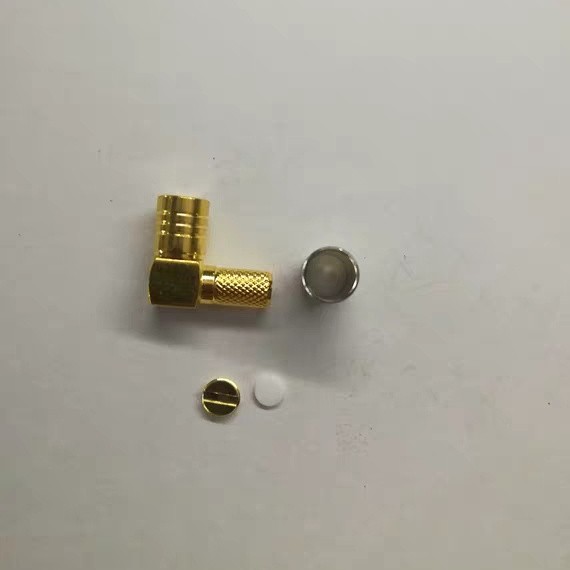

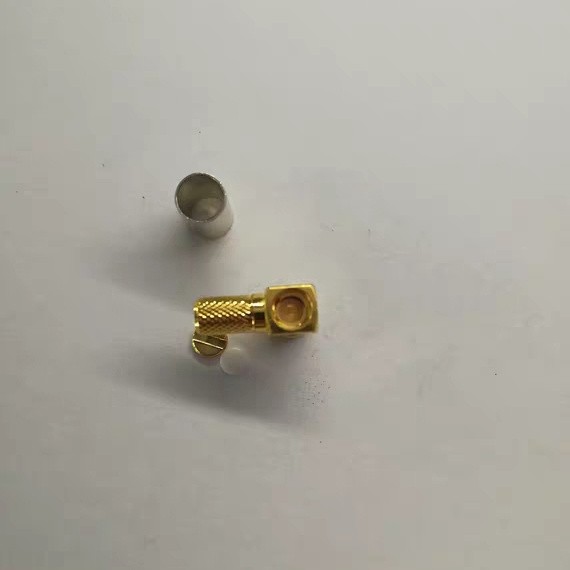

SMB Female Right Angle RF Coaxial Connector for cable RG142
SMB Female Right Angle RF Coaxial Connector for cable RG142
Product Detail
Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 3 GHz
RF Operating Voltage, maximum (vrms)1000.00 V
Outer Contact Resistance, maximum1.00 Mohm
Inner Contact Resistance, maximum6.00 Mohm
Insulation Resistance, minimum1000 Mohm
VSWR<1.25
Mechanical Specifications
Mating Cycles500 Cycles
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodyBrassAu
Inner ContactBeryllium bronzeAu
InsulatorPTFE


EZCON is a leading supplier for high-quality RF connectors/cable assemblies and other passive RF products such as filters and antennas etc. It mainly produces two categories of products: (1) high-end test cables, adapters (DC-110GHz) for telecom and electronic products test; (2) high-end RF connectors and cable assemblies for wireless base stations. Our products have passed UL, CUL, VDE, CE, CCC, RoHS certifications.
