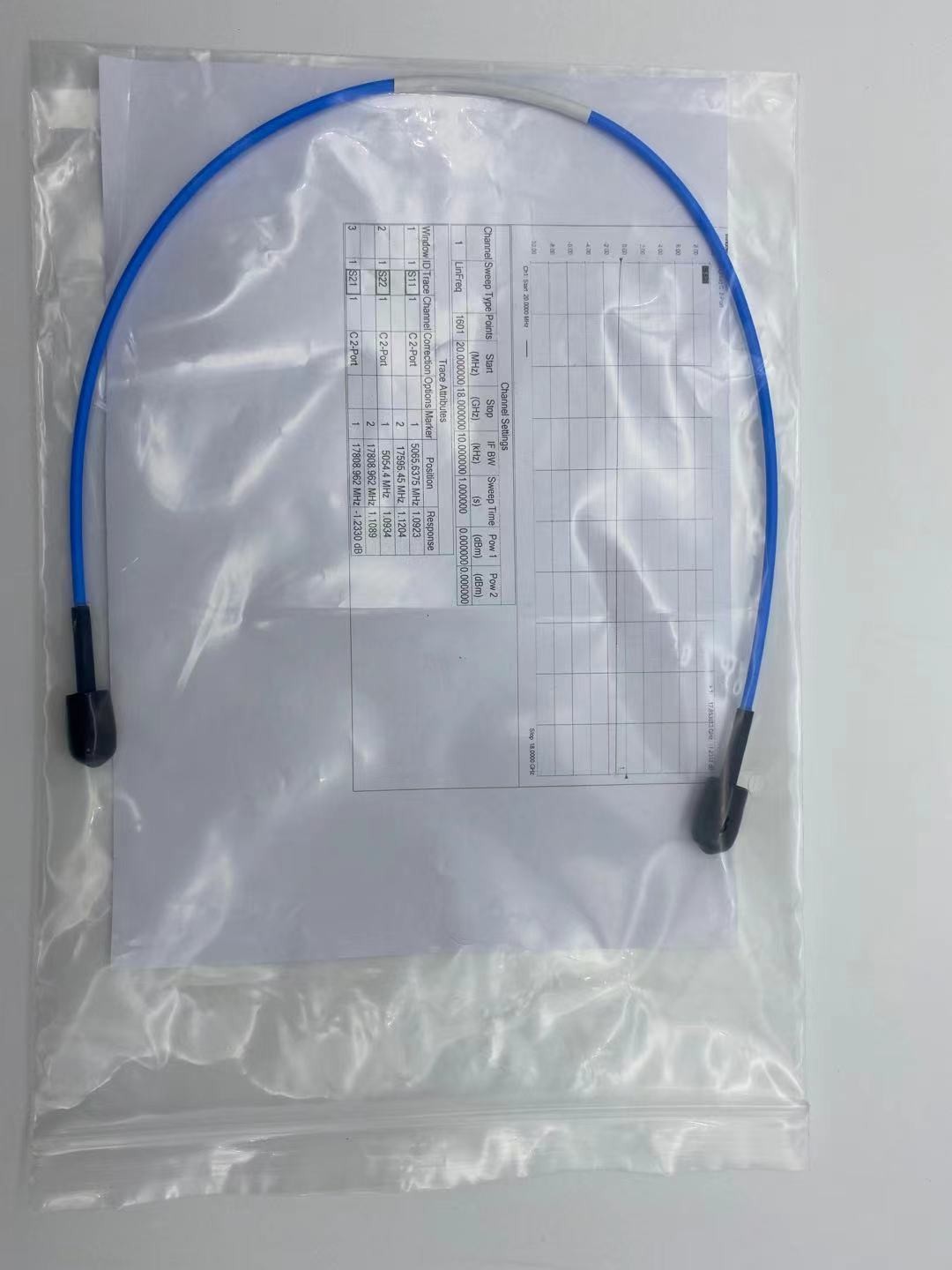

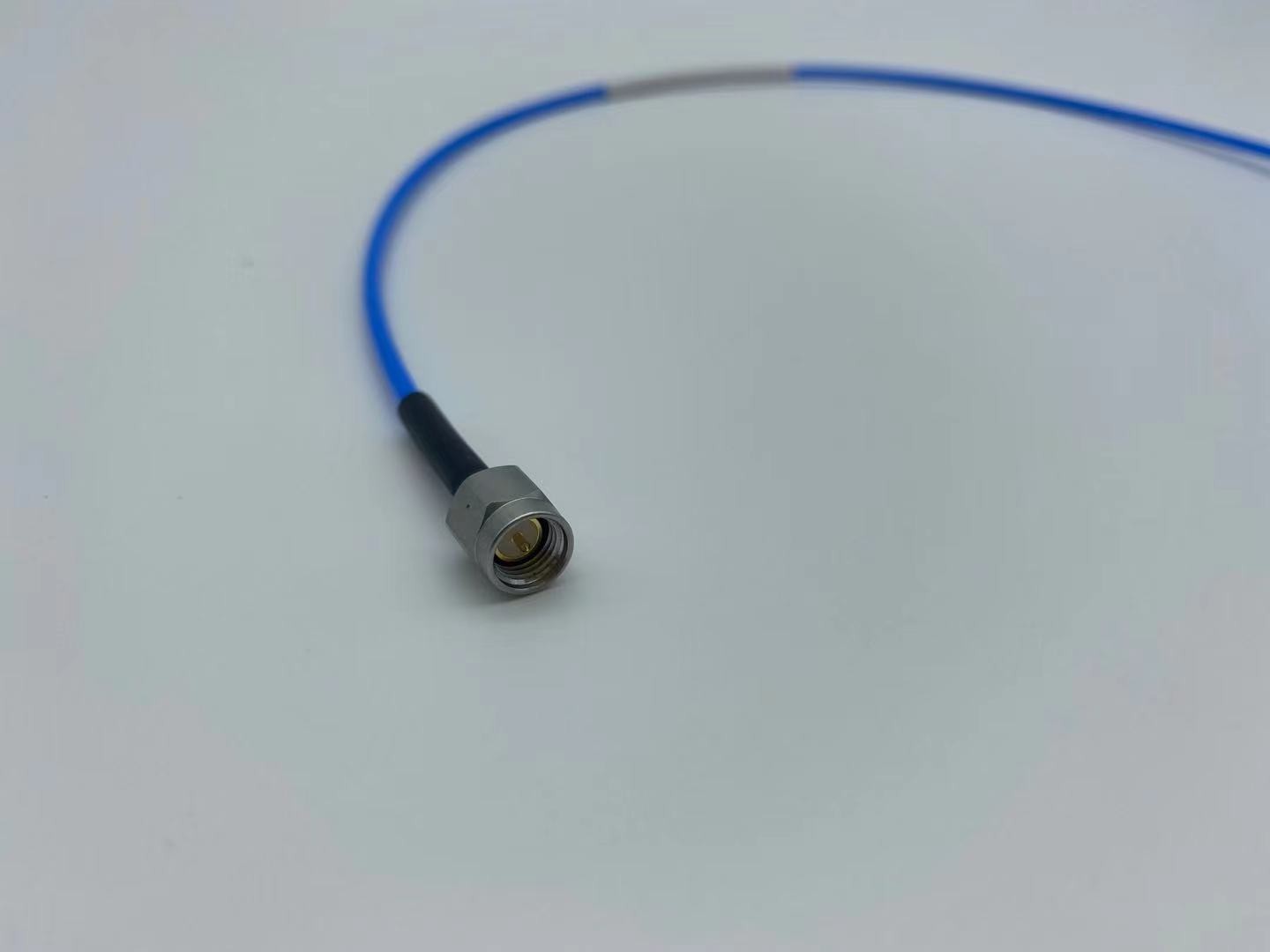

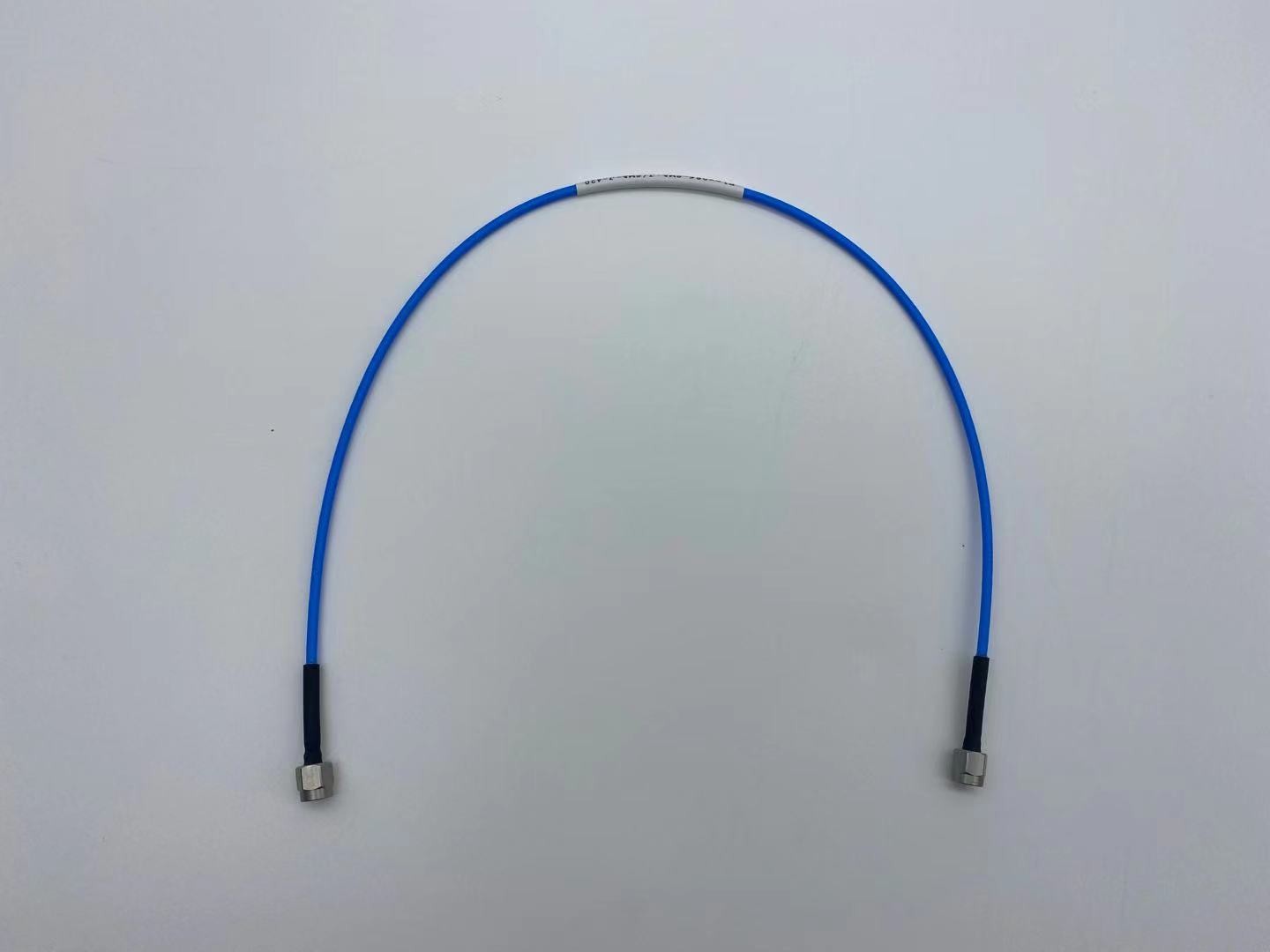

SMA male to SMA male jumper cable assembly with superflex cable 086/RG405
SMA male to SMA male jumper cable assembly with superflex cable 086/RG405
Product Detail
Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 18 GHz
RF Operating Voltage, maximum (vrms)1000.00 V
Outer Contact Resistance, maximum2.00 Mohm
Inner Contact Resistance, maximum3.00 Mohm
Insulation Resistance, minimum5000 Mohm

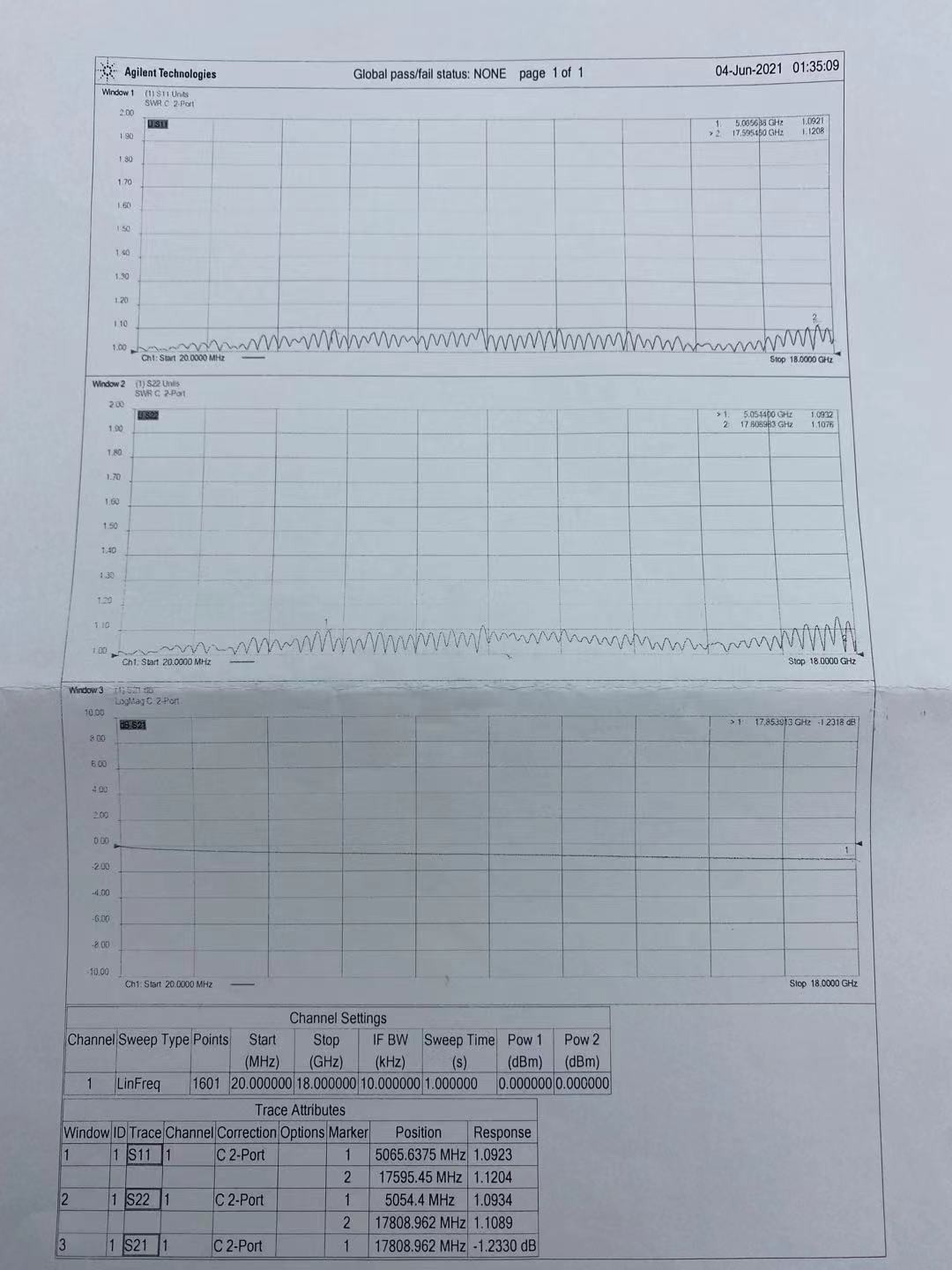

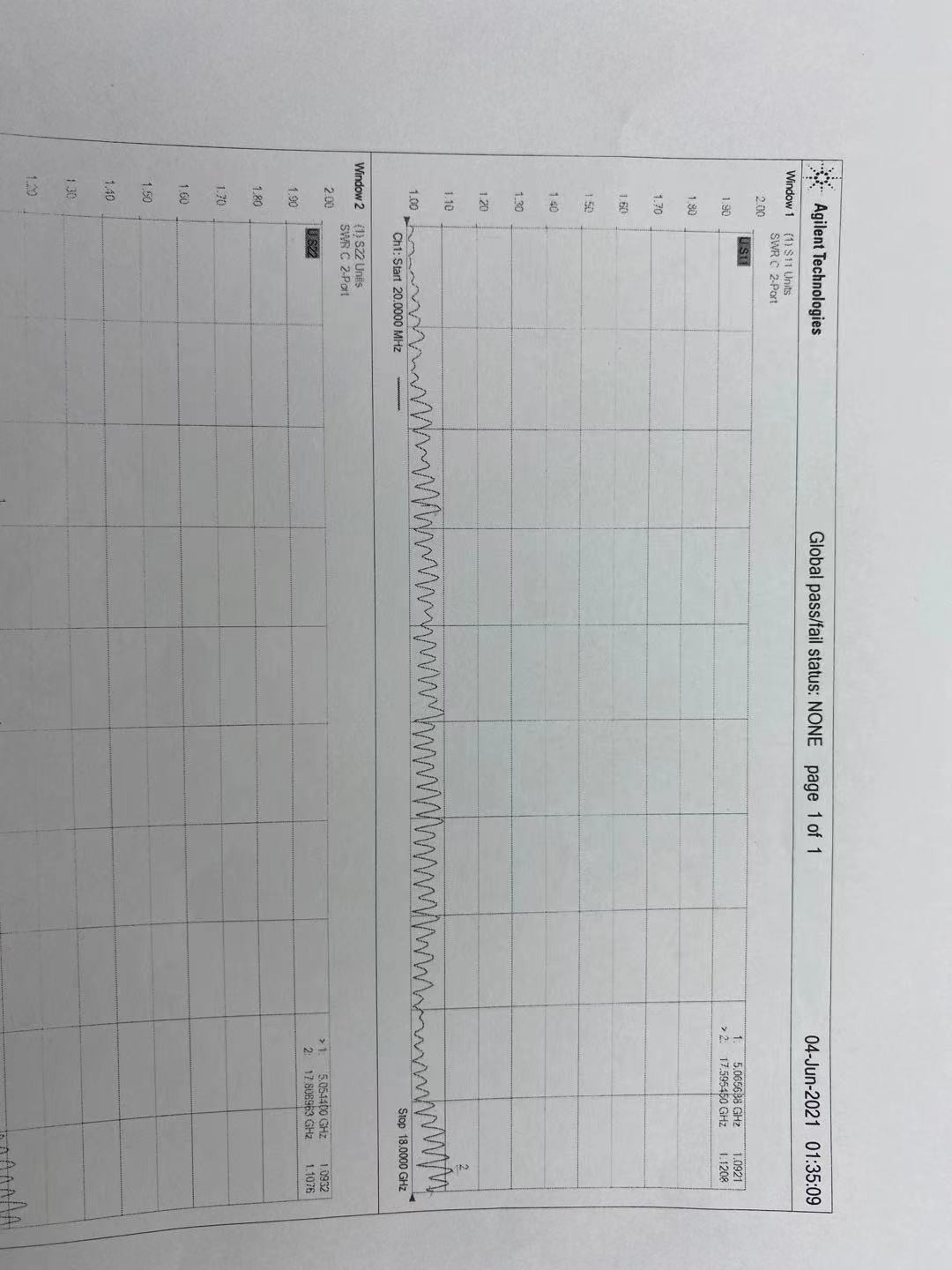

VSWR<1.1
Insertion LossTypical 0.05×√fdB+Cable Insertion Loss
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque0.7-1.1 Nm
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodyBrassTrimental
Inner ContactBeryllium BronzeGold
InsulatorPTFE
