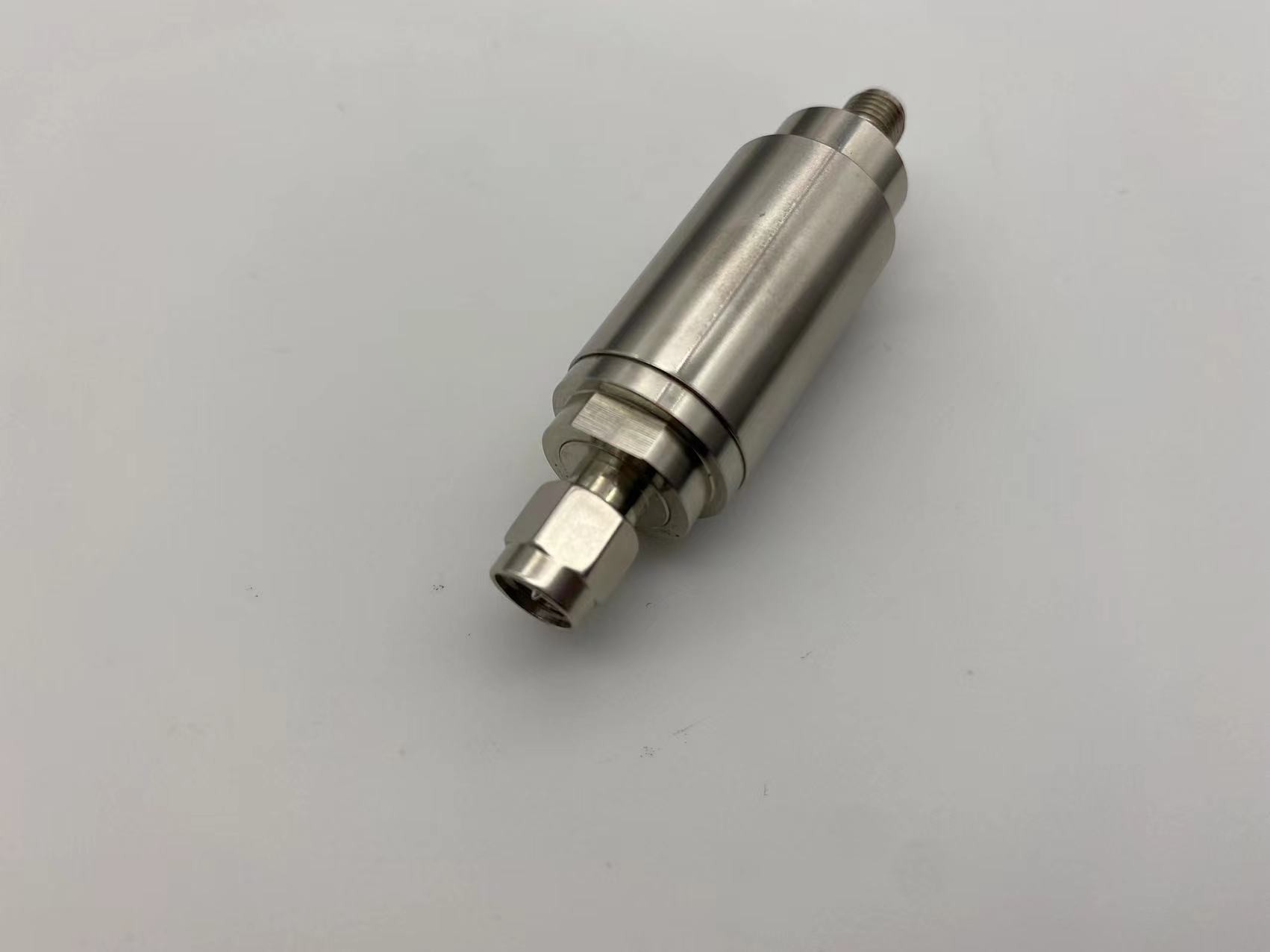

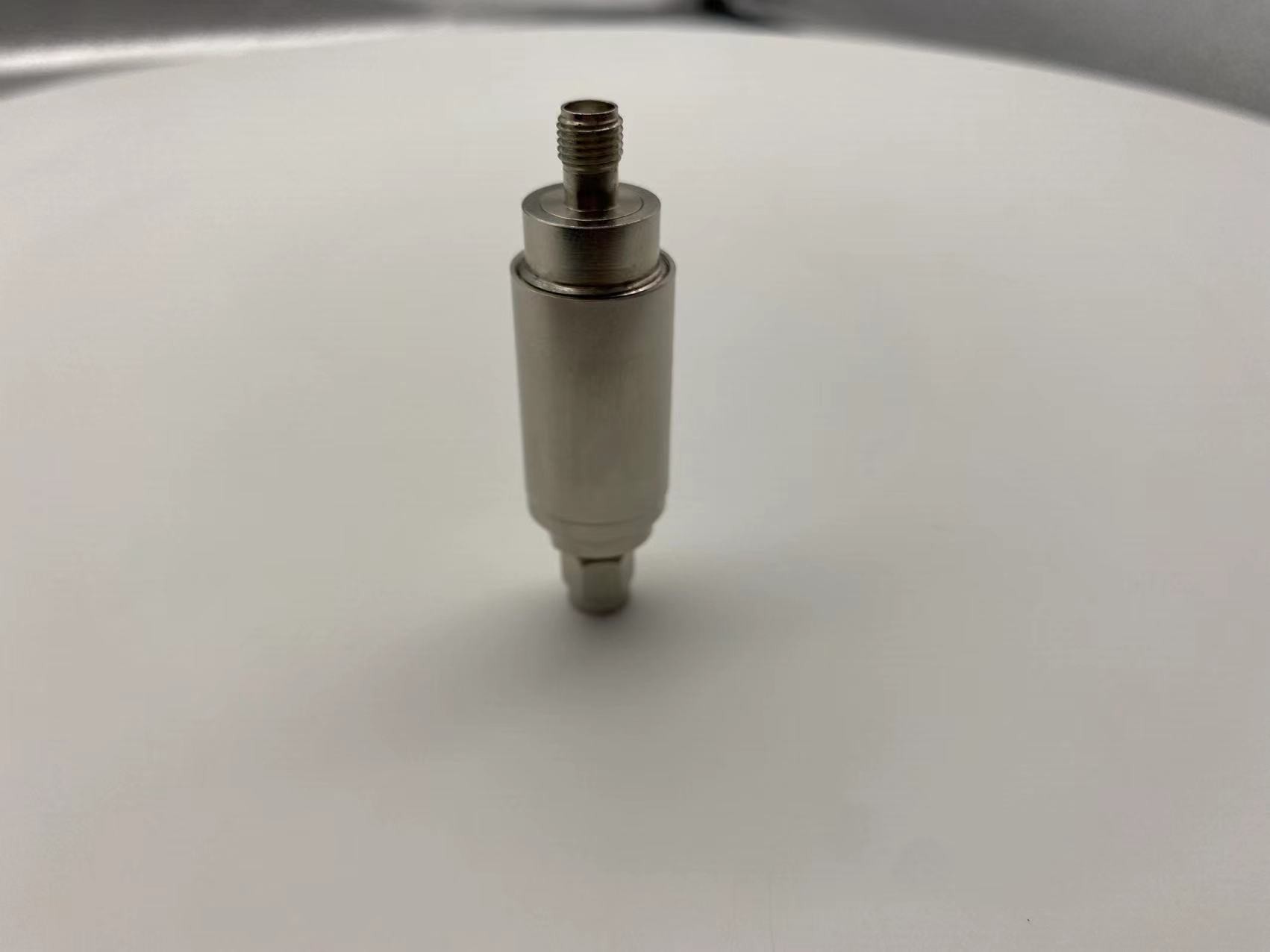

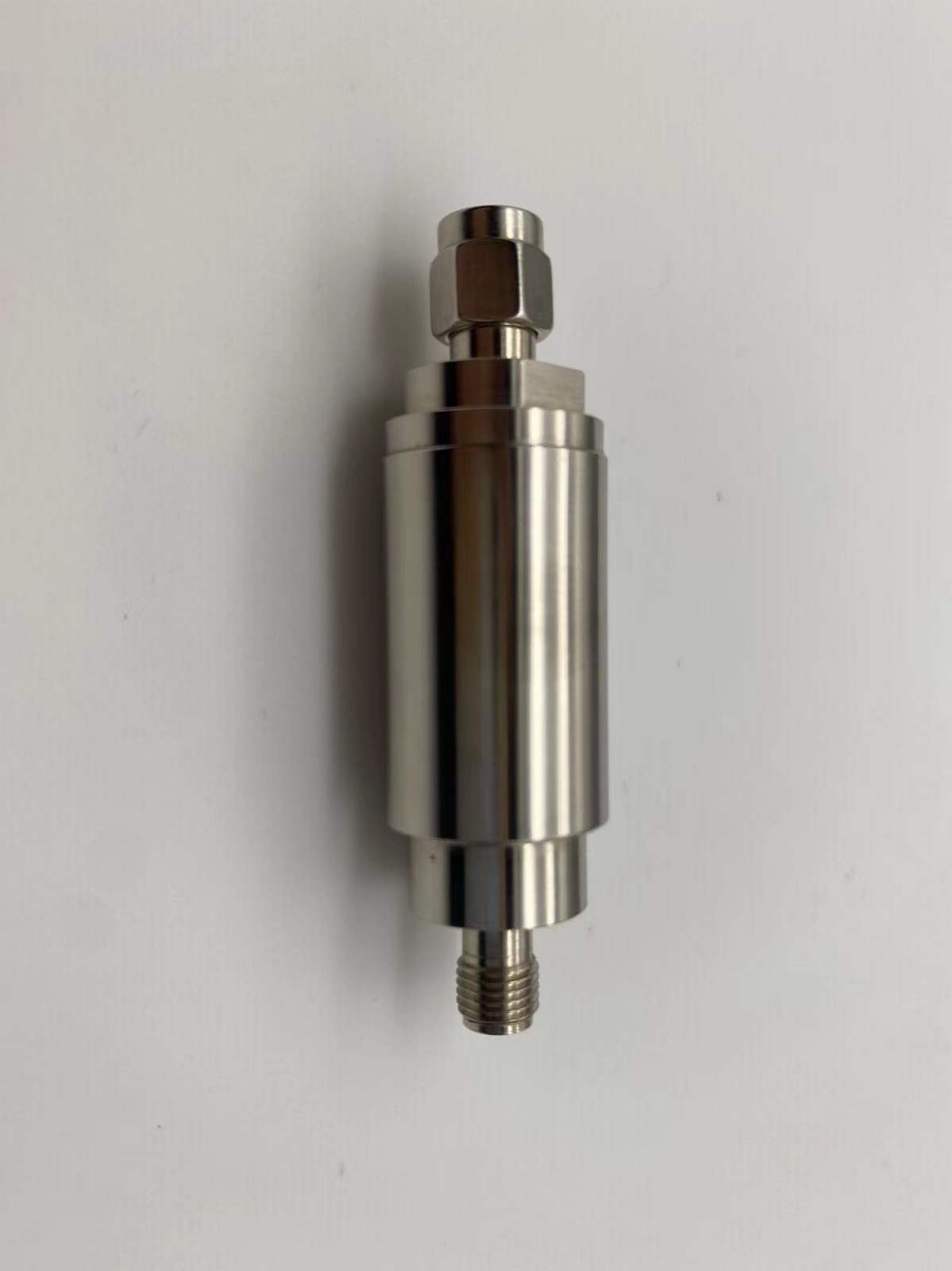

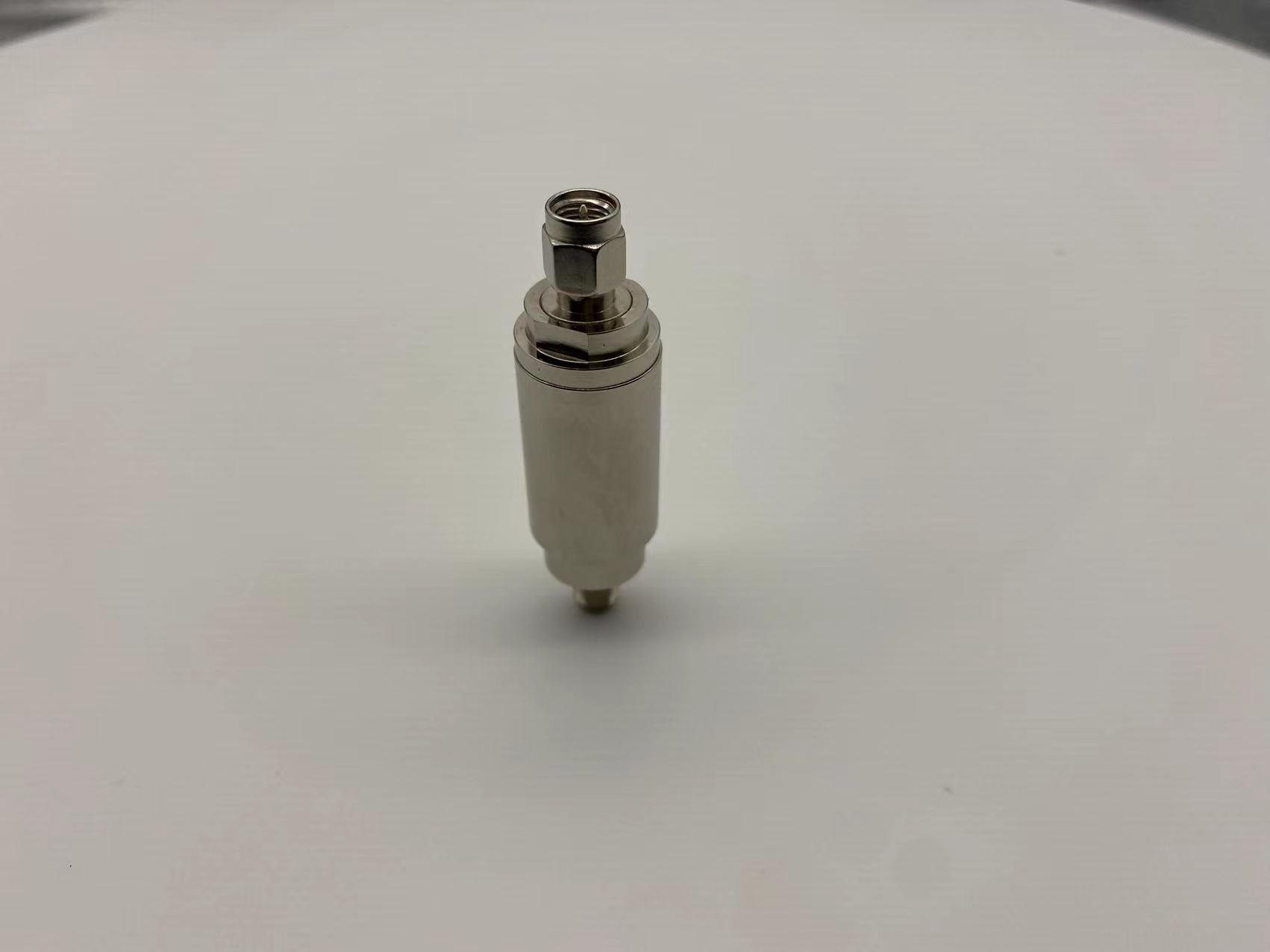

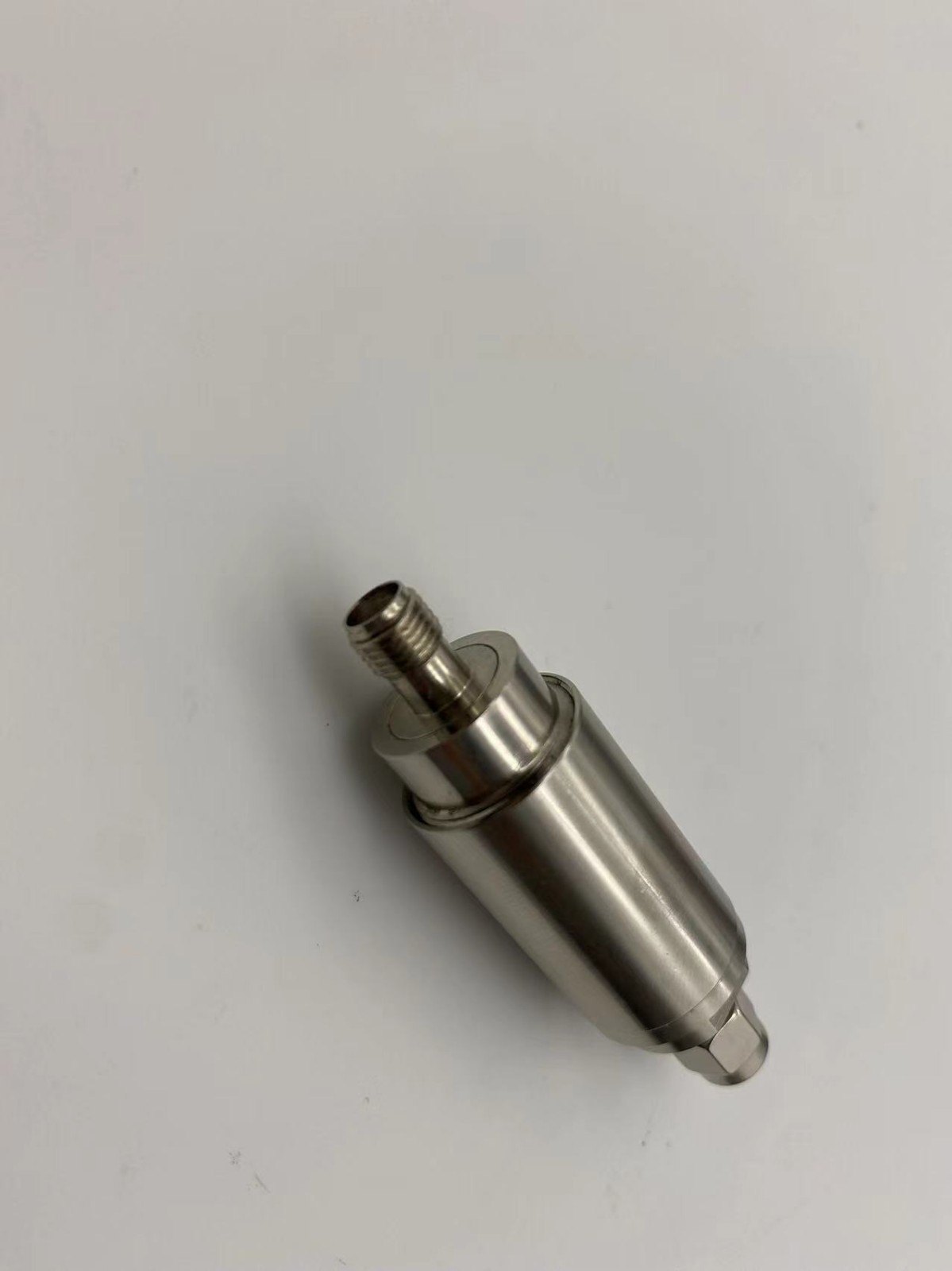

SMA Male to SMA Female Fixed Attenuators, 5watt, DC~4GHz, 3-30dB
SMA Male to SMA Female Fixed Attenuators, 5watt, DC~4GHz, 3-30dB
Product Detail
Model No.ATT5-XX-4-SMF(XX means attenuation in dB)
Attenuation(dB)356781013152030
Accuracy(dB)±0.5±0.5±0.8±0.8±0.8±1.0±1.2±1.2±1.2±1.5
Freq(MHz)DC-4GHz
VSWR≤1.20
Power Rating(W)4W (average)
Impedance50 ohm
ConnectorSMA Male to SMA Female
MaterialBrass
Operating Tem(℃)-55°C to +125°C
Weight(kg)0.15
