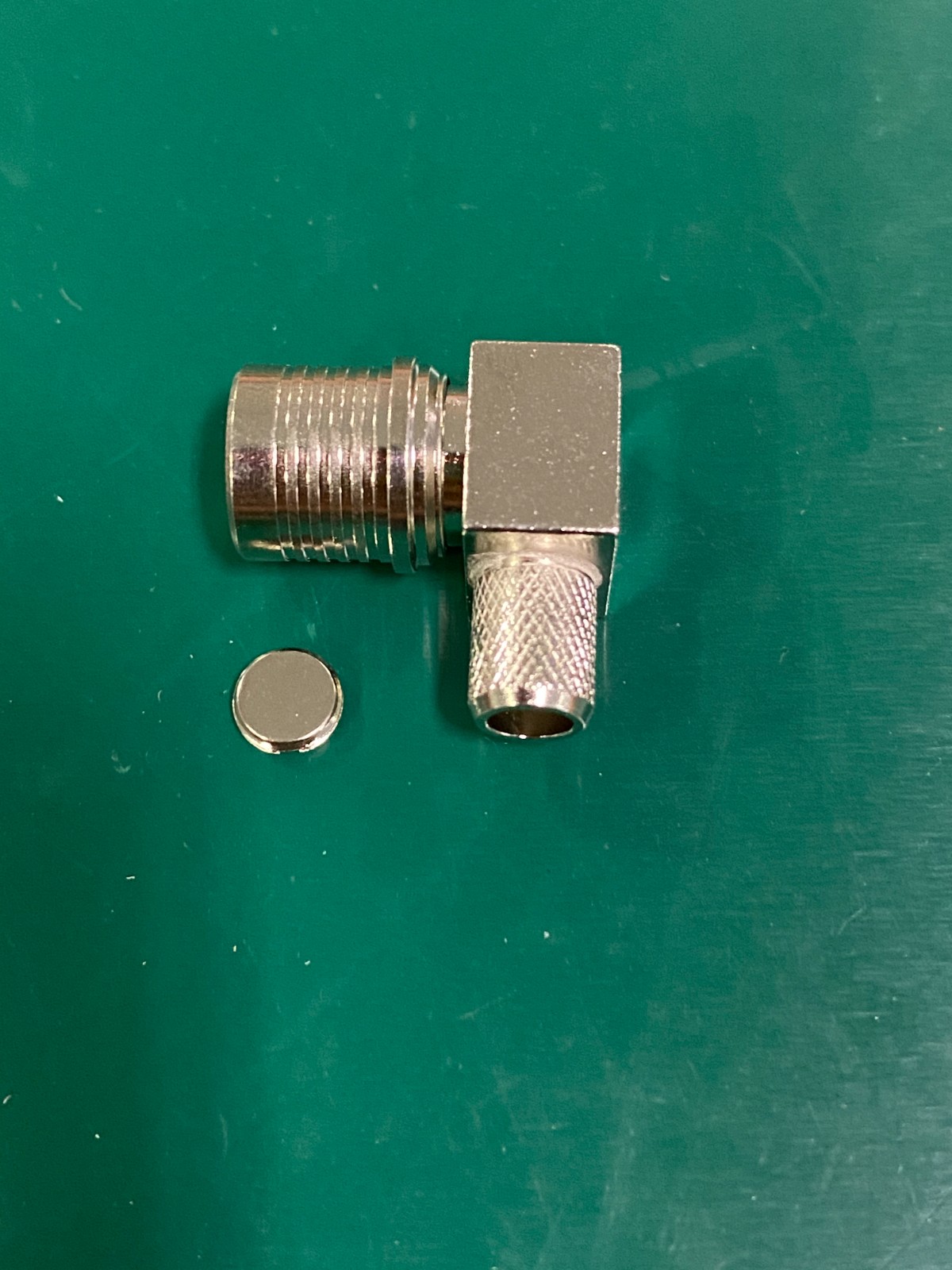

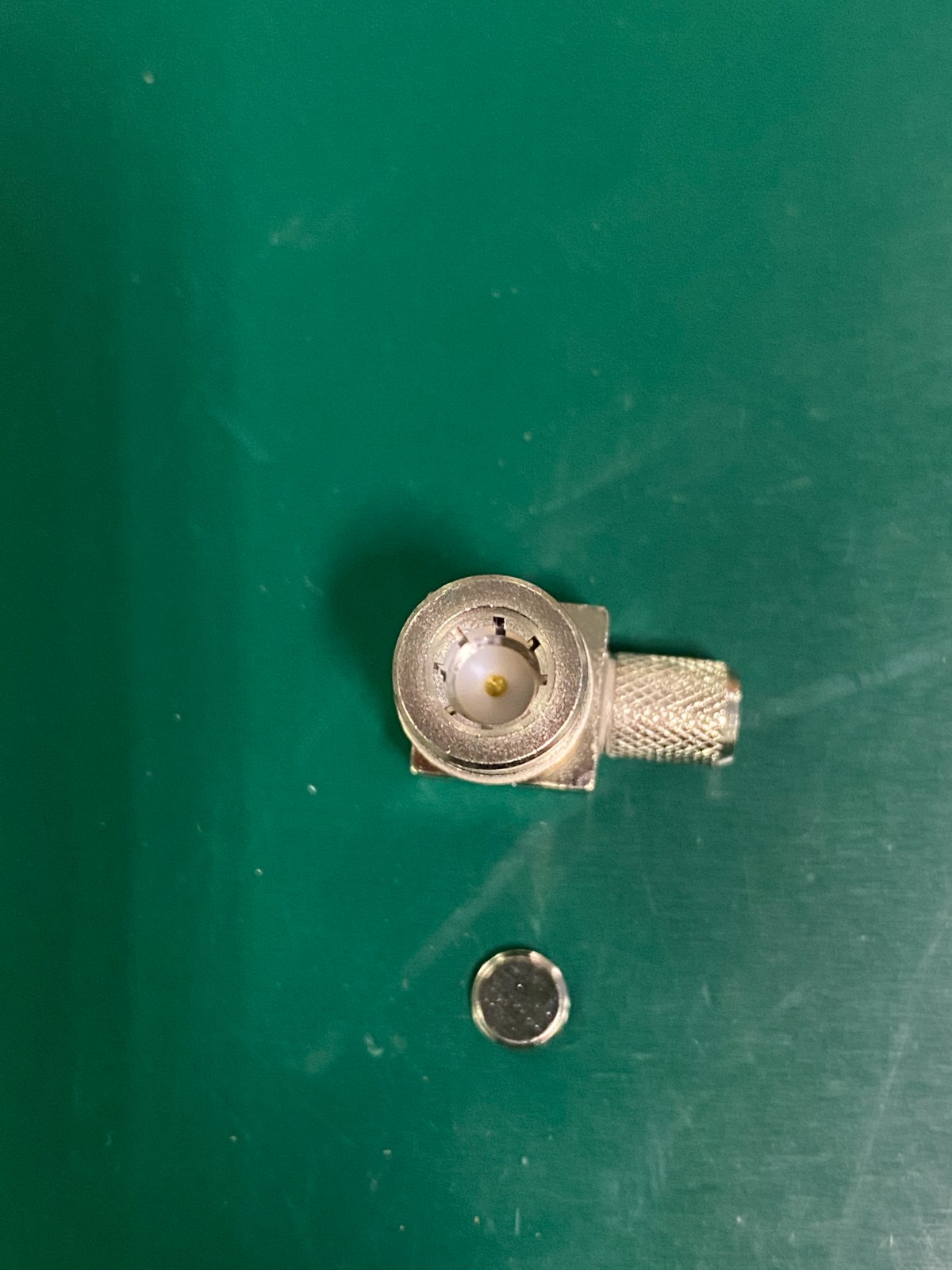

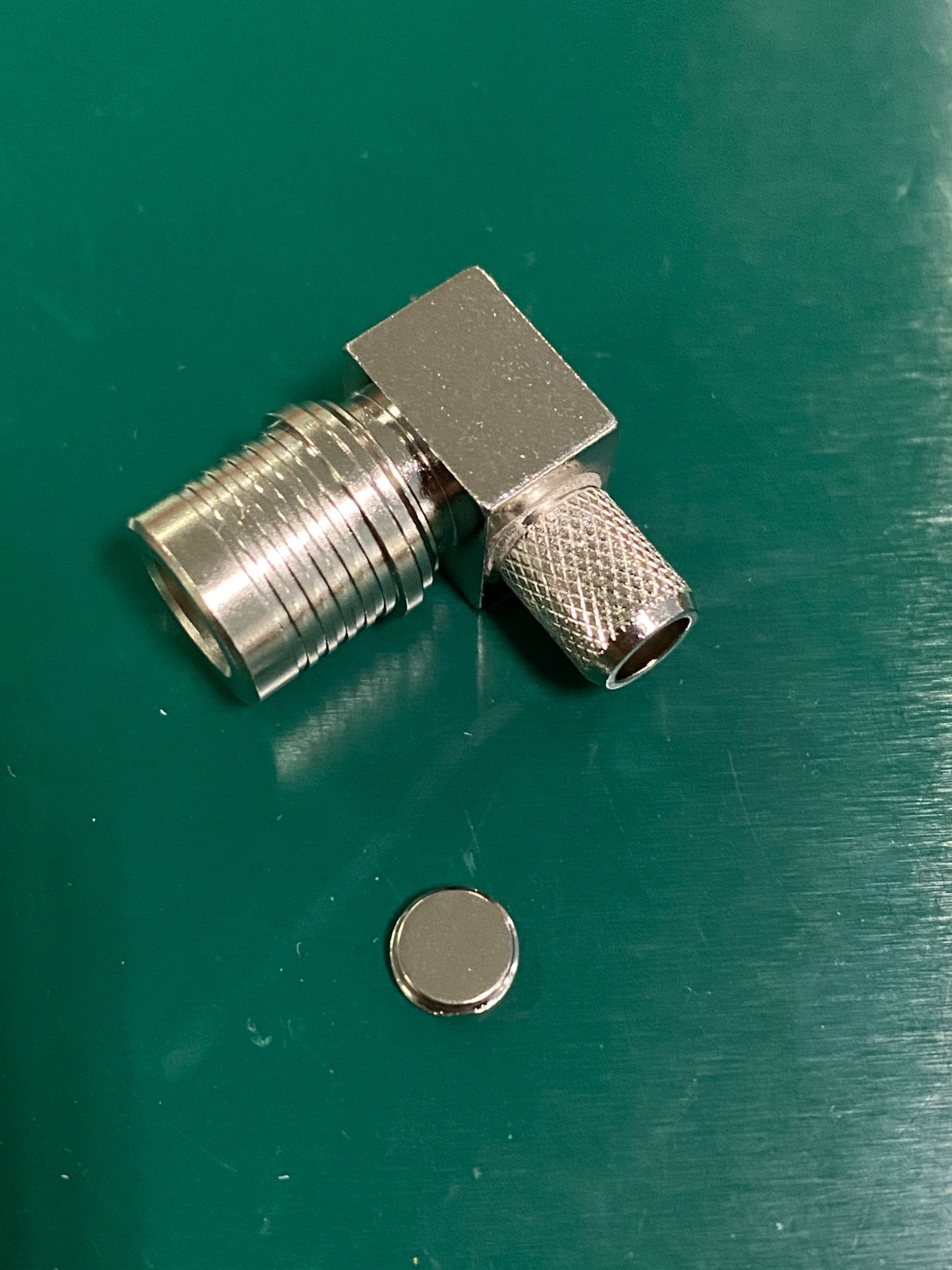

QMA male right angle coaxial connector for LMR240
QMA male right angle coaxial connector for LMR240
Product Detail
Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 6 GHz
RF Operating Voltage, maximum (vrms)1500.00 V
Outer Contact Resistance, maximum0.20 Mohm
Inner Contact Resistance, maximum1.00 Mohm
Insulation Resistance, minimum5000 Mohm
VSWR<1.3
Insertion LossTypical 0.05×√fdB
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque4-6 Nm
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodyBrassTri-metal
Inner ContactBrassGold
InsulatorPTFE
