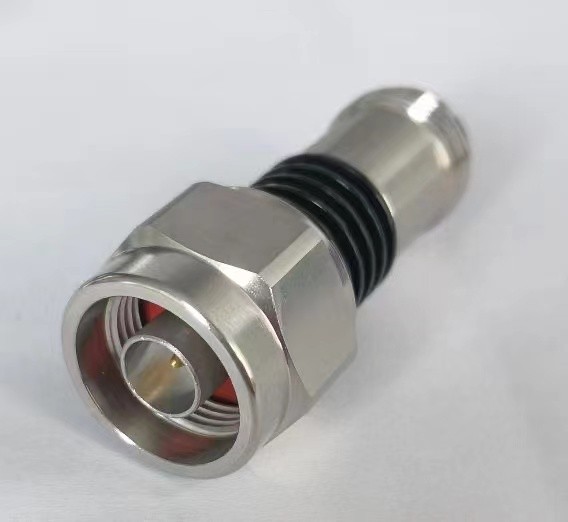

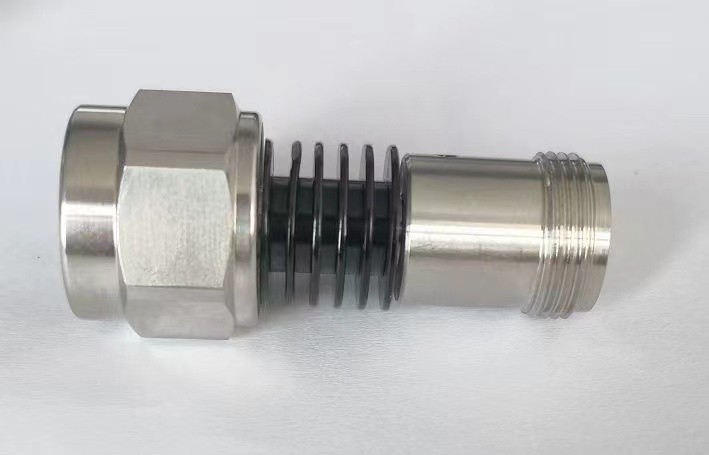

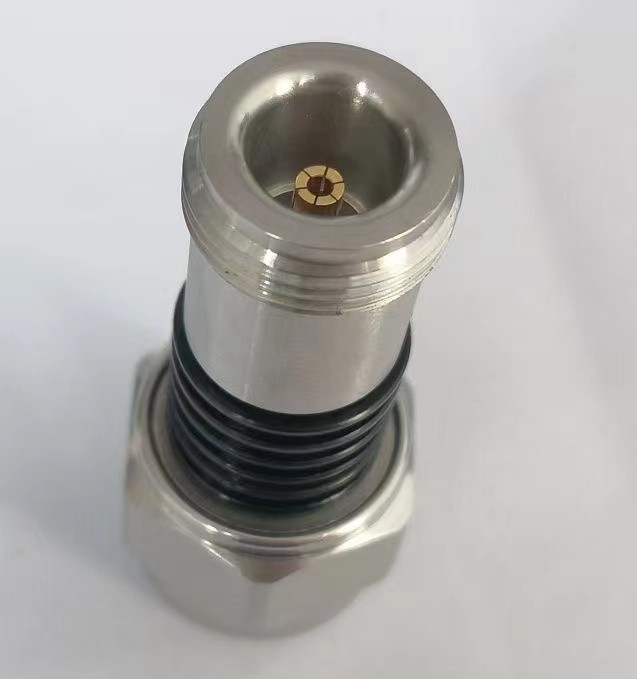

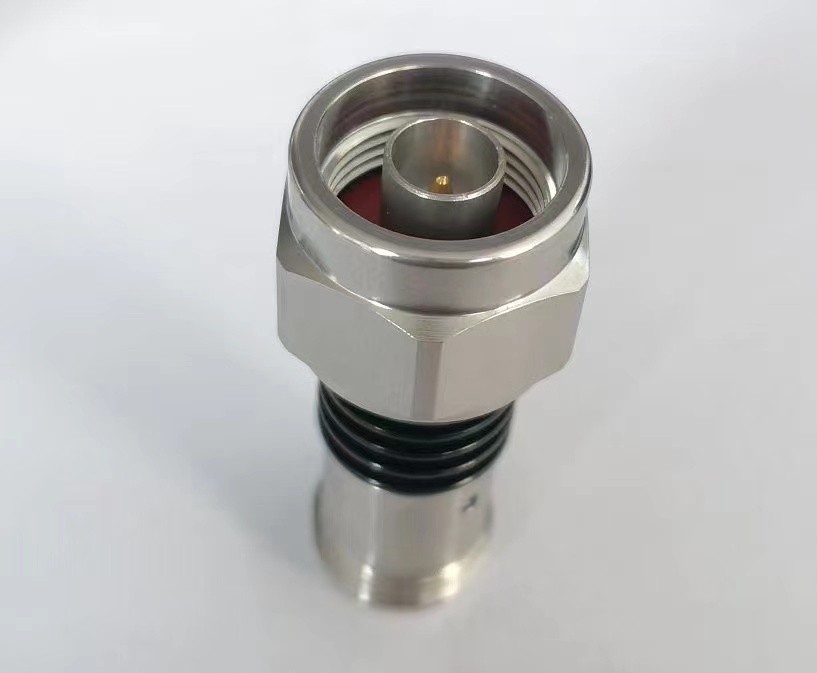

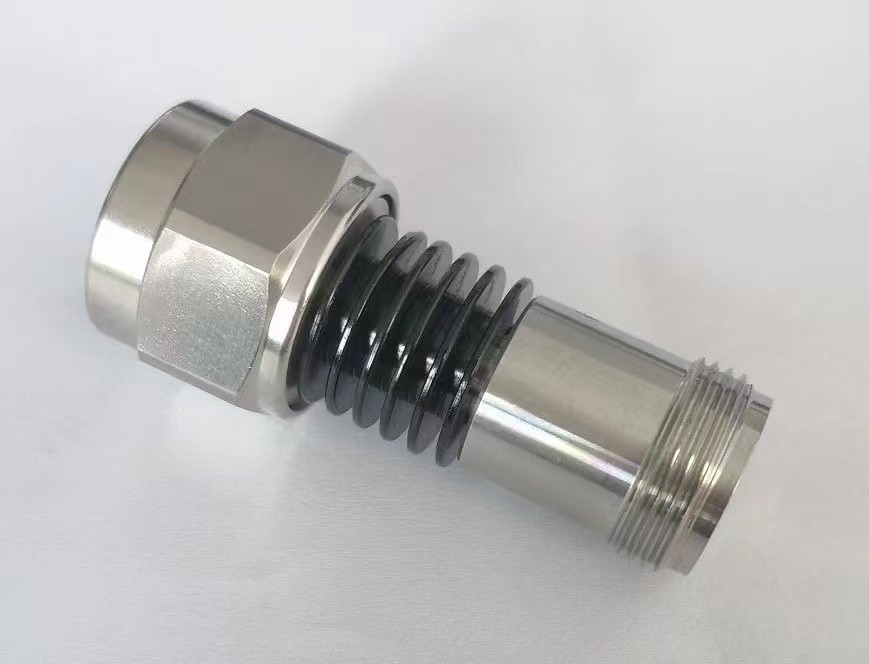

N male to N female RF fixed attenuators, DC~18GHz, 5Watt.
N male to N female RF fixed attenuators, DC~18GHz, 5Watt.
Product Detail

SPECIFICATIONS







Electrical
Frequency Range DC-18 GHz







Attenuation Accuracy2dB ±0.5 dB







VSWR1.4:1 Max.







Input Power5 Watts Avg. @ +25°C







Impedance50 Ohms







Operating Temp Range(Temp Range)(-)65°C to +125°C







Mechanical







DescriptionConnector 1Connector 2






TypeN MaleN Female






Connector SpecificationMIL-STD-348MIL-STD-349






Contact Material and PlatingBeryllium Copper, GoldBeryllium Copper, Gold(,)






Body Material and PlatingPassivated Stainless SteelPassivated Stainless Steel()
