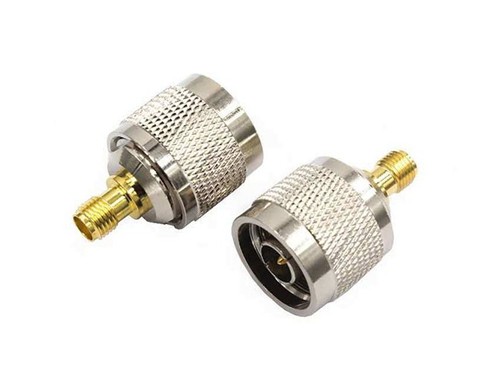

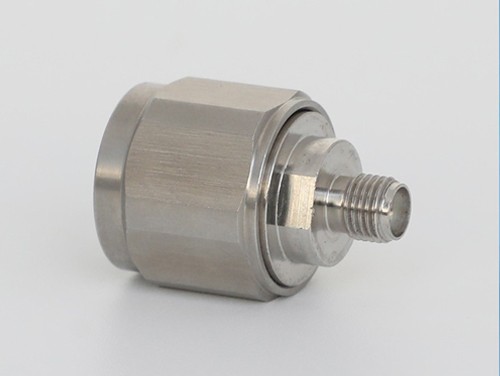

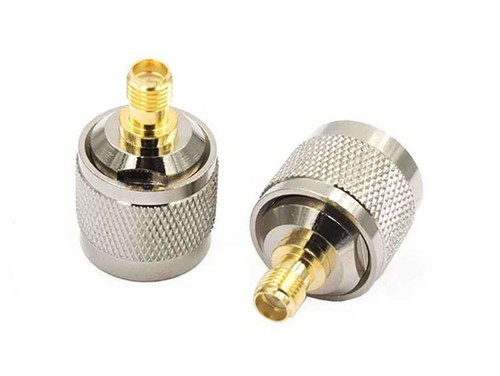

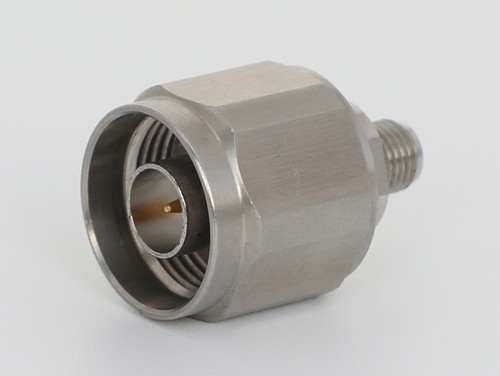

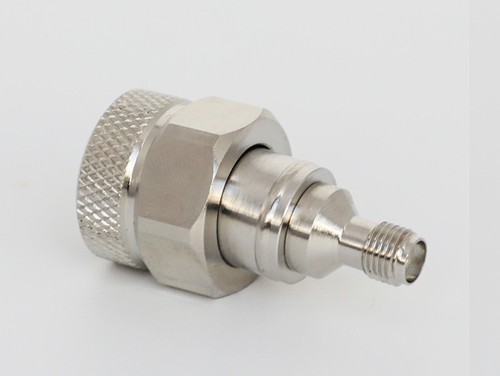

N Male to SMA Female RF Coaxial Adapter
N Male to SMA Female RF Coaxial Adapter
Product Detail

Electrical Specifications

Connector Impedance

50 Ohm

Operating Frequency Band

0 – 3 GHz

RF Operating Voltage, maximum (vrms)

1000.00 V

Outer Contact Resistance, maximum

2.00 Mohm

Inner Contact Resistance, maximum

3.00 Mohm

Insulation Resistance, minimum

5000 Mohm

VSWR

<1.2

Insertion Loss

Typical 0.05×√fdB


Mechanical Specifications

Mating Cycles

500 Cycles

Recommended Mating Torque

0.7-1.1 Nm


Environmental Specifications

Operating Temperature

-40°C to +125°C

Storage Temperature

-55°C to +125°C


Components

Name

Material

Plating

Body

Brass

Gold

Inner Contact

Beryllium Bronze

Gold

Insulator

PTFE
