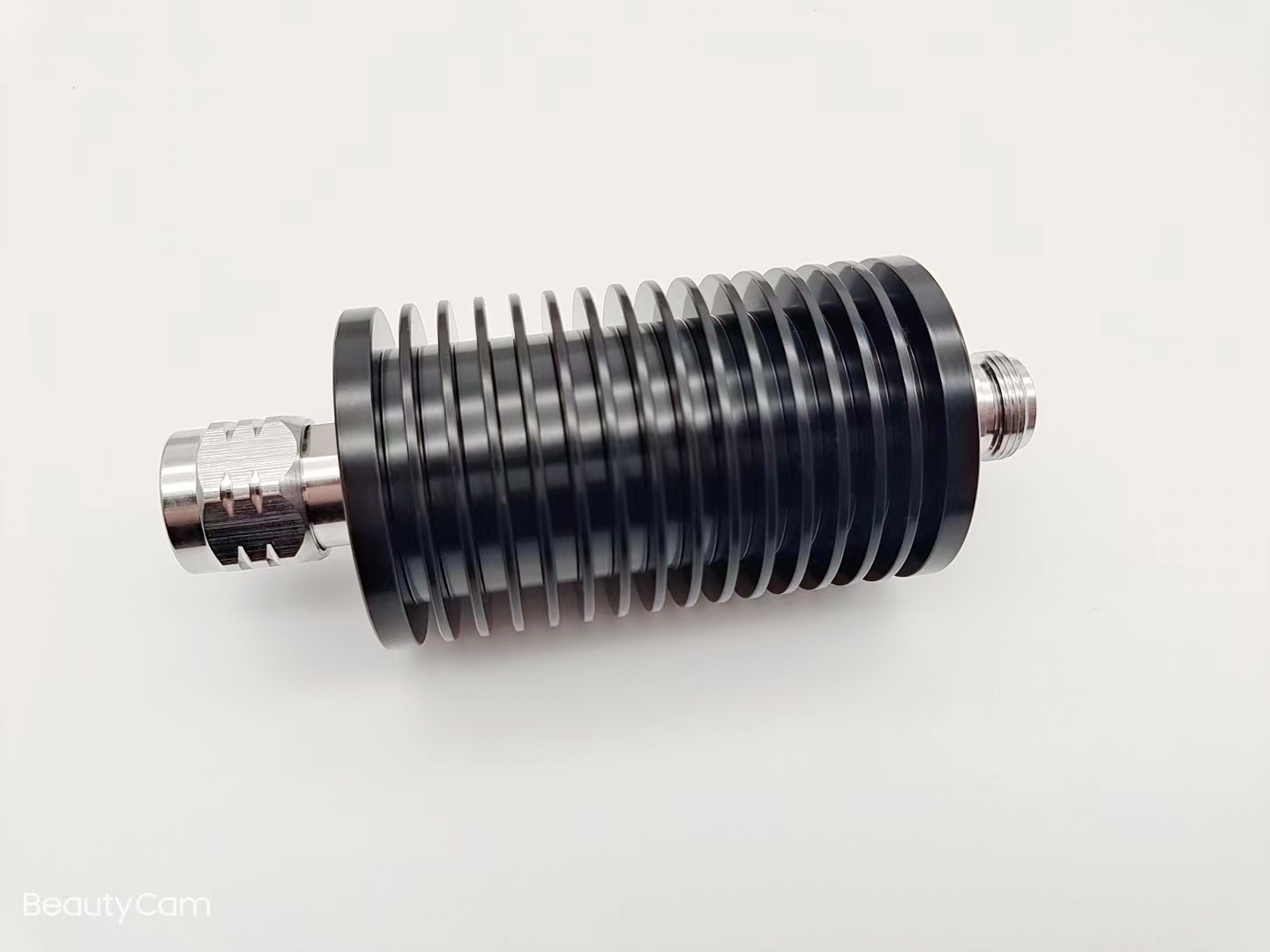

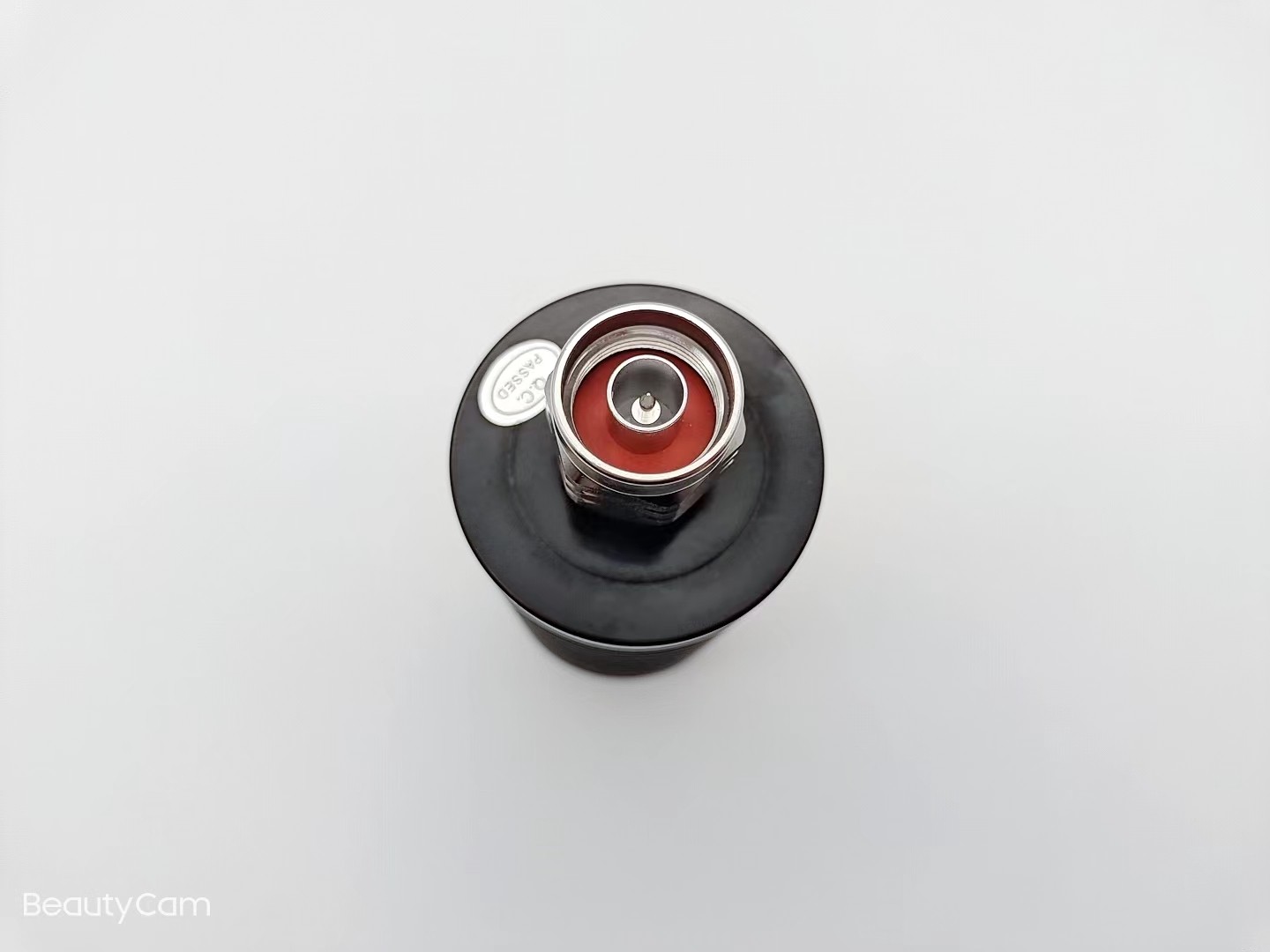

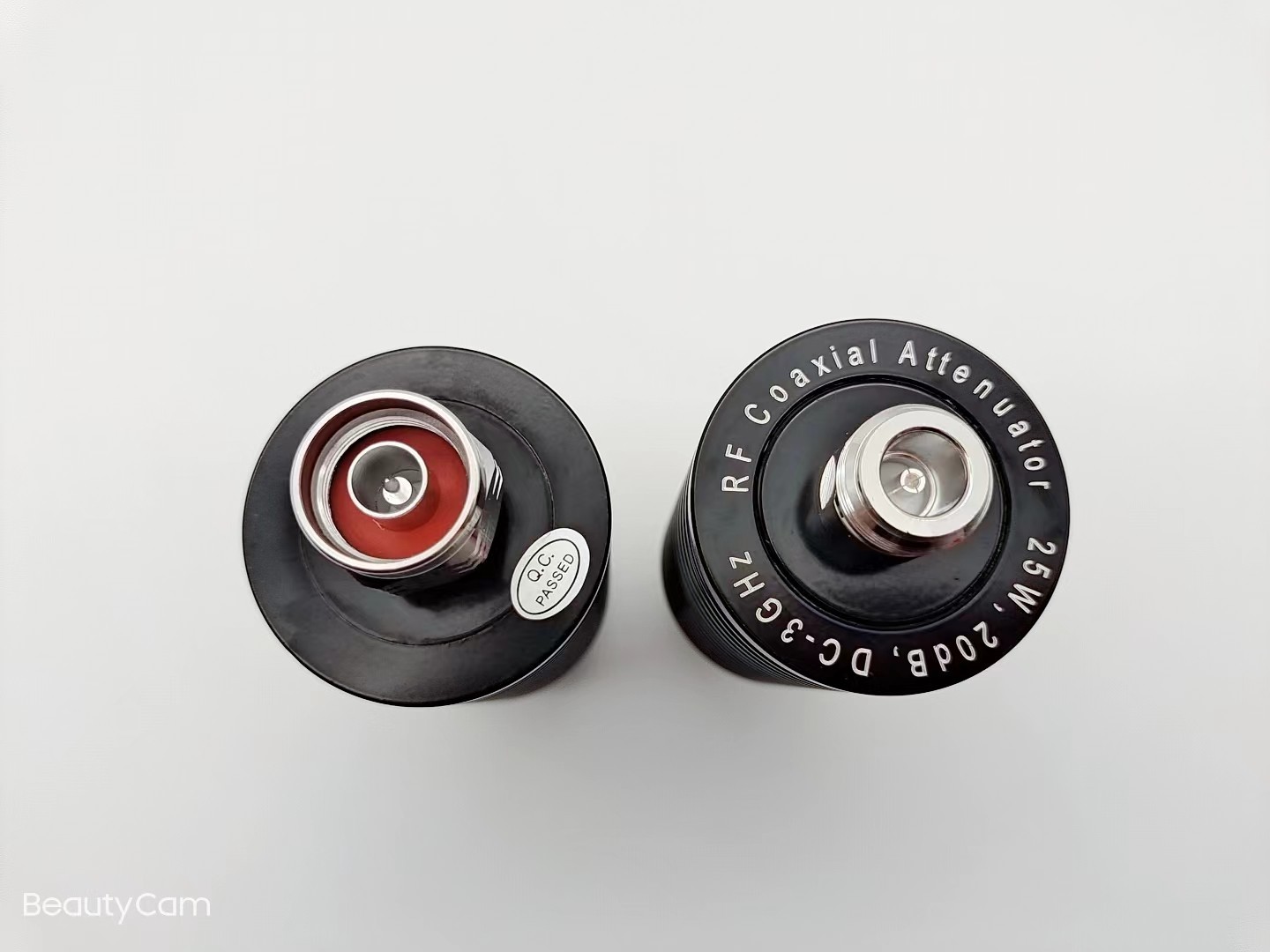

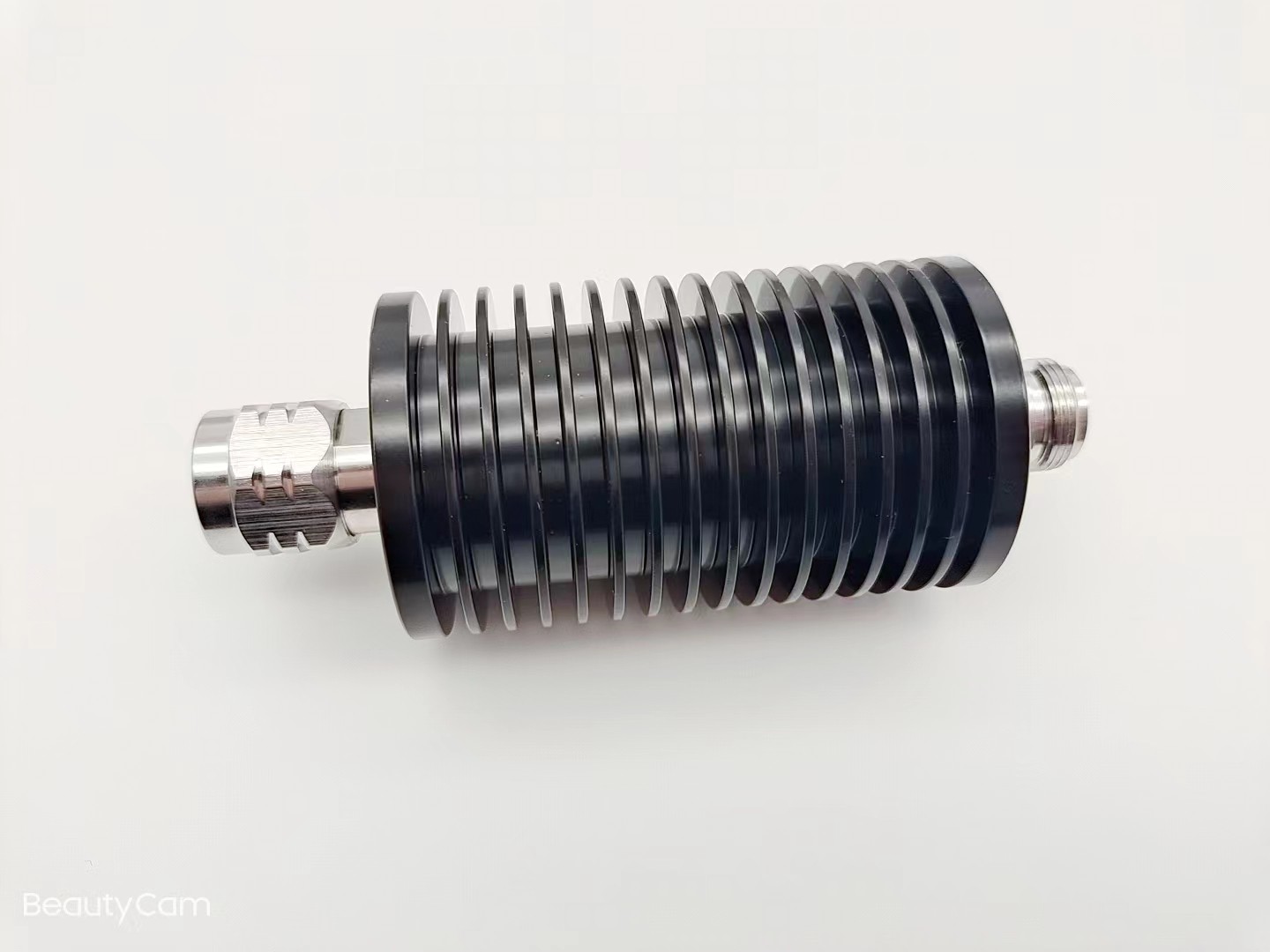

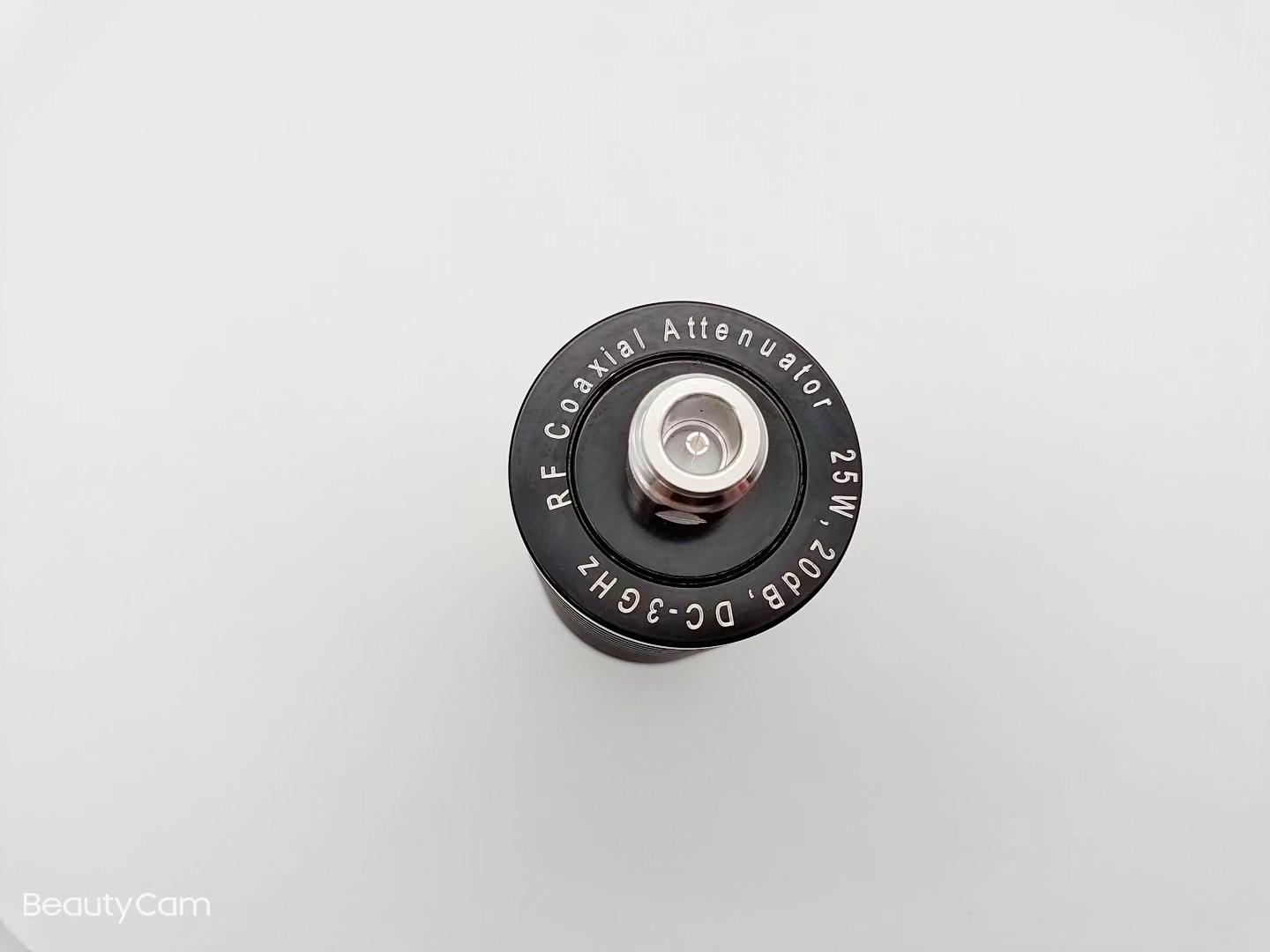

N Male to N Female Fixed Attenuator, DC-3GHz, 25W, 20dB
N Male to N Female Fixed Attenuator, DC-3GHz, 25W, 20dB
Product Detail

N Male to N Female Fixed Attenuator, DC-3GHz, 25W, 20dB

Model No.ATT25-XX-3-NMF(XX means attenuation in dB)
Attenuation(dB)356781013152030
Accuracy(dB)±0.5±0.5±0.8±0.8±0.8±1.0±1.2±1.2±1.2±1.5
Freq(MHz)DC-3GHz
VSWR≤1.20
Power Rating(W)25W (average)
Impedance50 ohm
ConnectorN Male to N Female
MaterialBrass
Operating Tem(℃)-55°C to +125°C
Weight(kg)0.2
