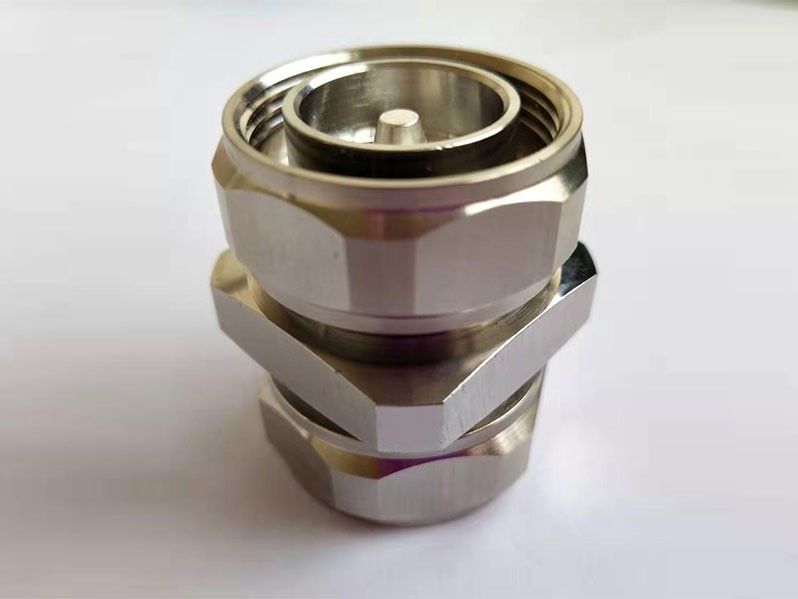

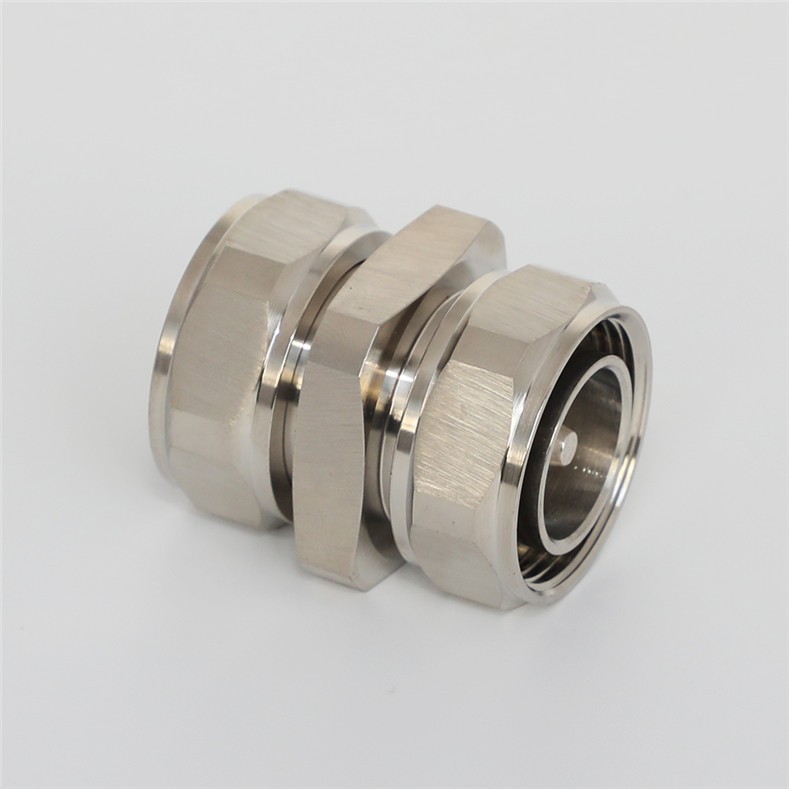

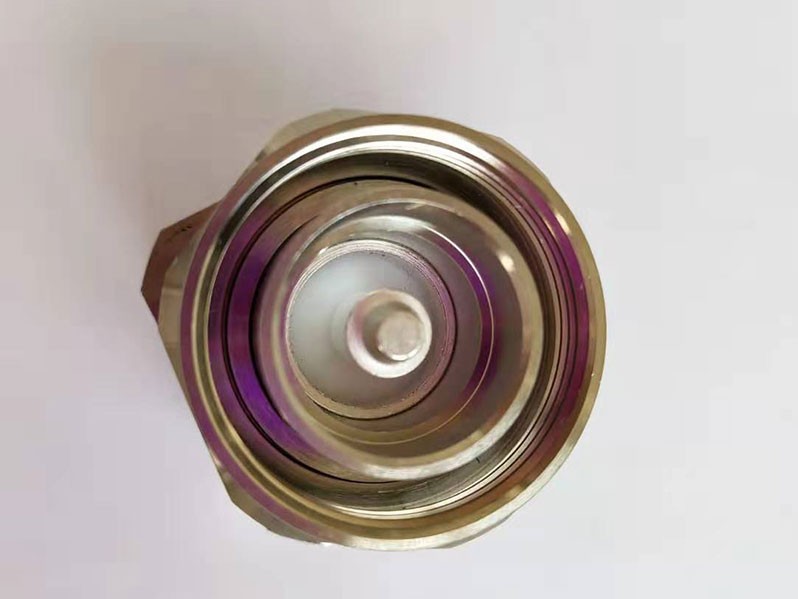

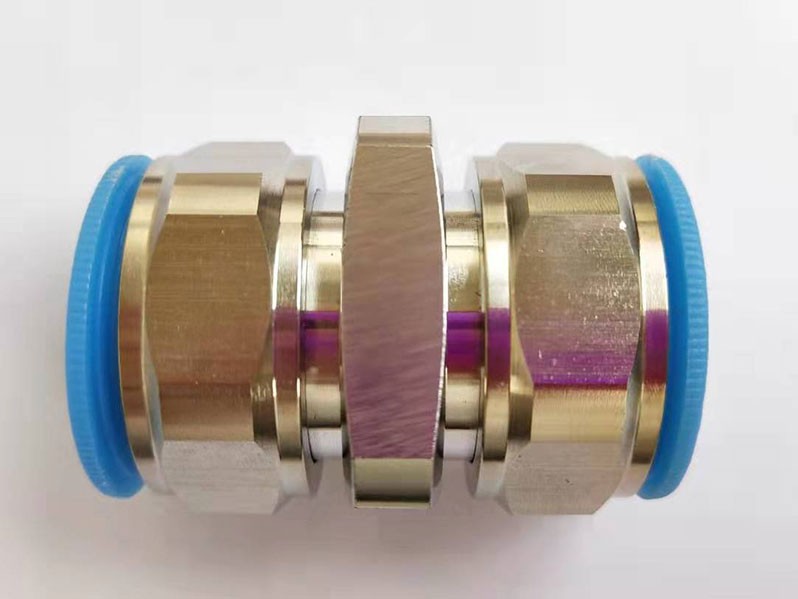

DIN 716 Male to Male Low PIM RF Coaxial Connector
DIN 716 Male to Male Low PIM RF Coaxial Connector
Product Detail

Electrical Specifications

Connector Impedance

50 Ohm

Operating Frequency Band

0 – 3 GHz

RF Operating Voltage, maximum (vrms)

2700.00 V

Outer Contact Resistance, maximum

0.40 Mohm

Inner Contact Resistance, maximum

1.50 Mohm

Insulation Resistance, minimum

10000 Mohm

VSWR

<1.1

Insertion Loss

Typical 0.05×√fdB


Mechanical Specifications

Mating Cycles

500 Cycles

Recommended Mating Torque

25-27 Nm

PIM

<-160 dBc(@43dBm)


Environmental Specifications

Operating Temperature

-40°C to +125°C

Storage Temperature

-55°C to +125°C


Components

Name

Material

Plating

Body

Brass

Tri-metal

Inner Contact

Phosphor Copper

Silver

Insulator

PTFE
