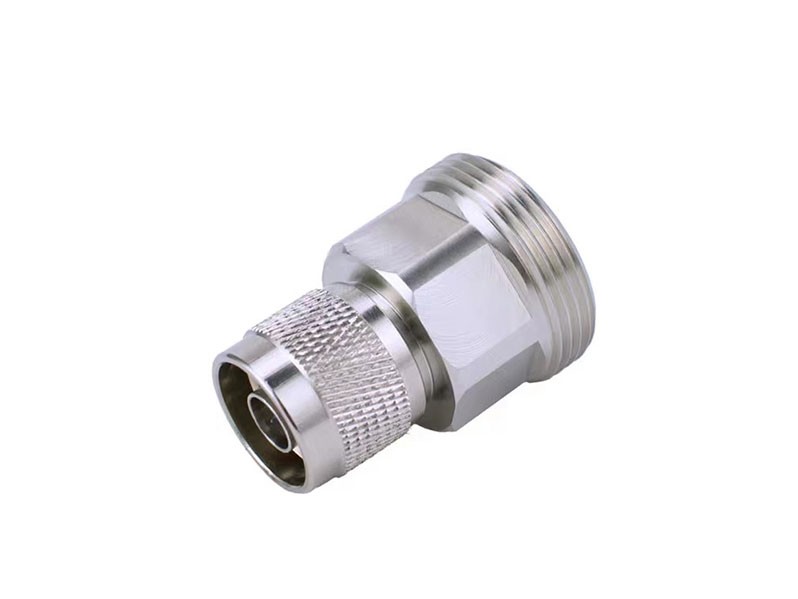

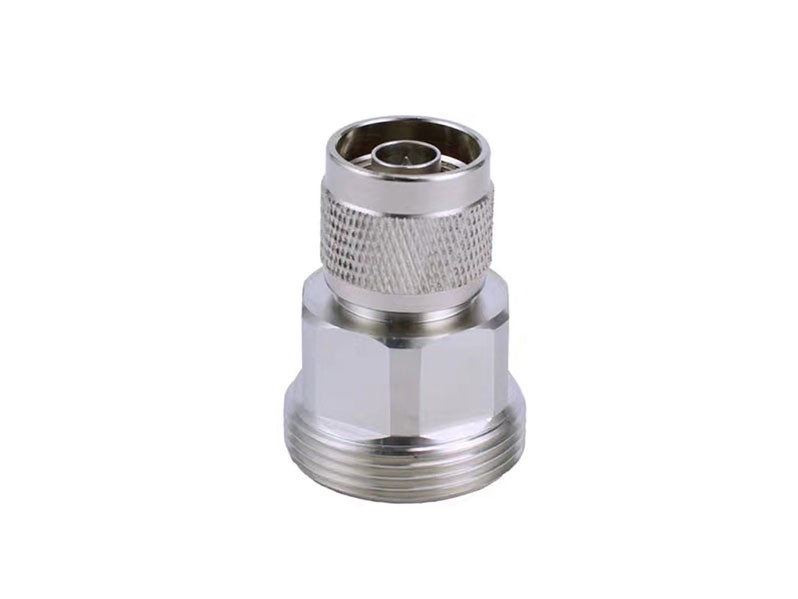

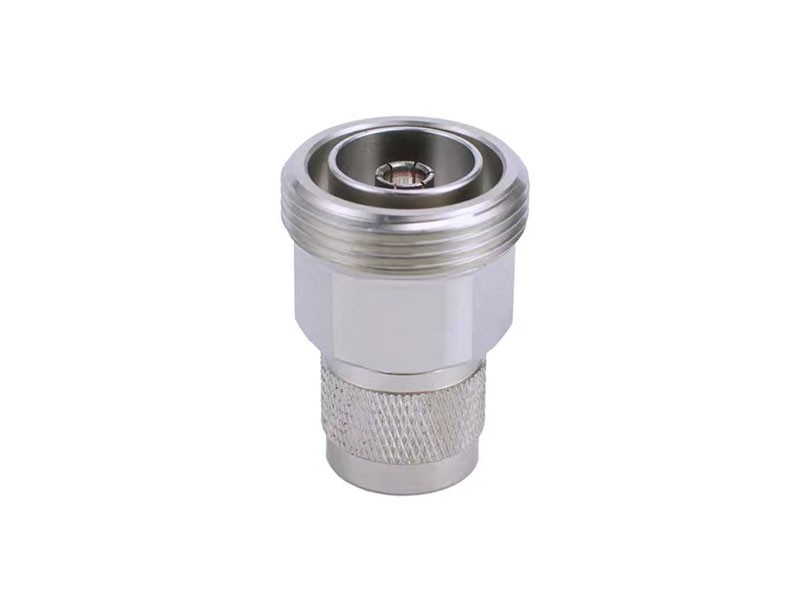

DIN 716 Female to N Male RF Coaxial Adapter
DIN 716 Female to N Male RF Coaxial Adapter
Product Detail

Electrical Specifications

Connector Impedance

50 Ohm

Operating Frequency Band

0 – 3 GHz

RF Operating Voltage, maximum (vrms)

2700.00 V

Outer Contact Resistance, maximum

0.40 Mohm

Inner Contact Resistance, maximum

1.50 Mohm

Insulation Resistance, minimum

10000 Mohm

VSWR

<1.1

Insertion Loss

Typical 0.05×√fdB


Mechanical Specifications

Mating Cycles

500 Cycles

Recommended Mating Torque

25-27 Nm(DIN Connector)

PIM

<-160 dBc（@43dBm）


Environmental Specifications

Operating Temperature

-40°C to +125°C

Storage Temperature

-55°C to +125°C


Components

Name

Material

Plating

Body

Brass

Tri-metal

Inner Contact

Phosphor Copper

Silver

Insulator

PTFE



Keywords

N Connector,DIN Connector,Low PIM RF Connector
