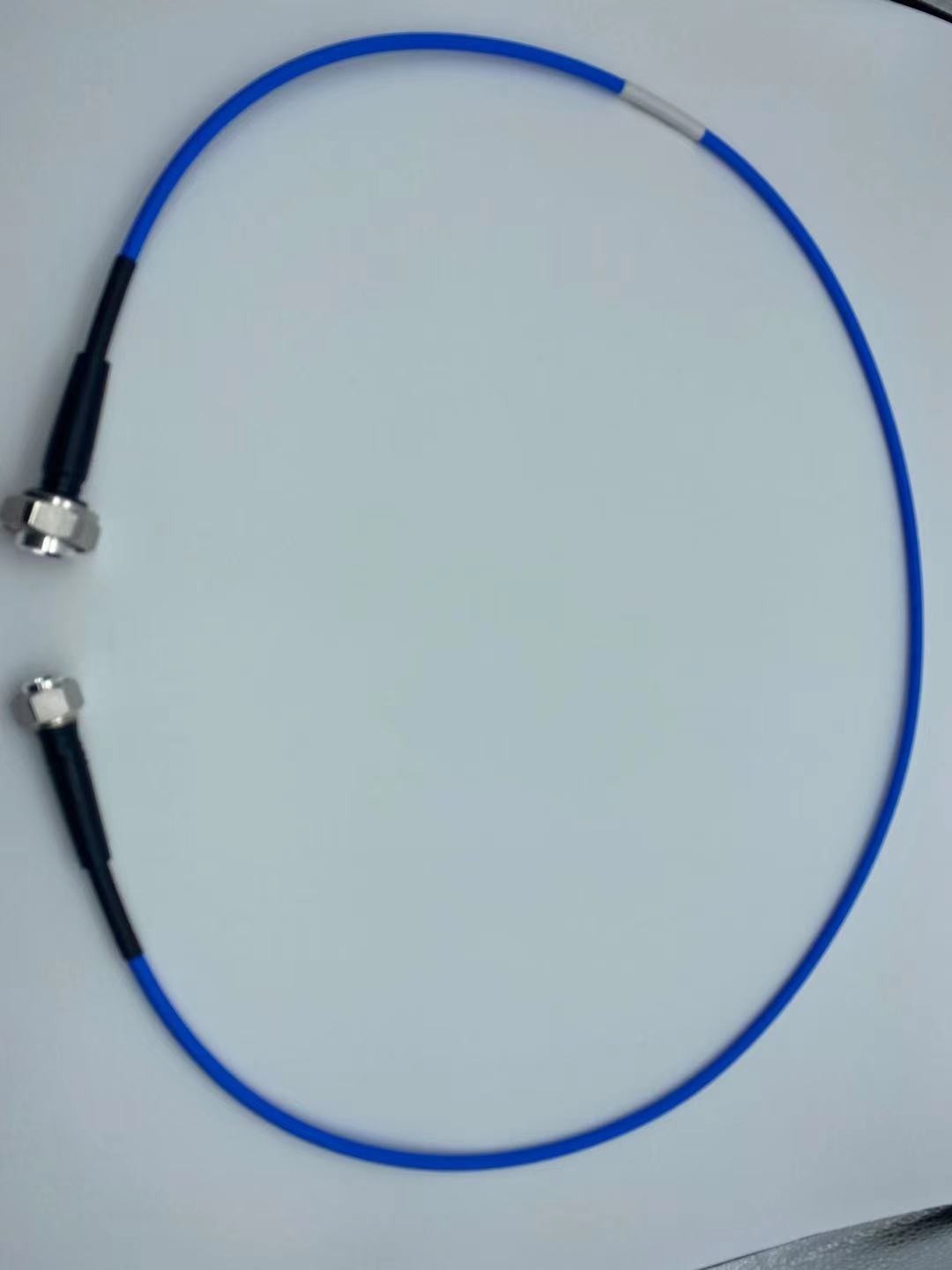

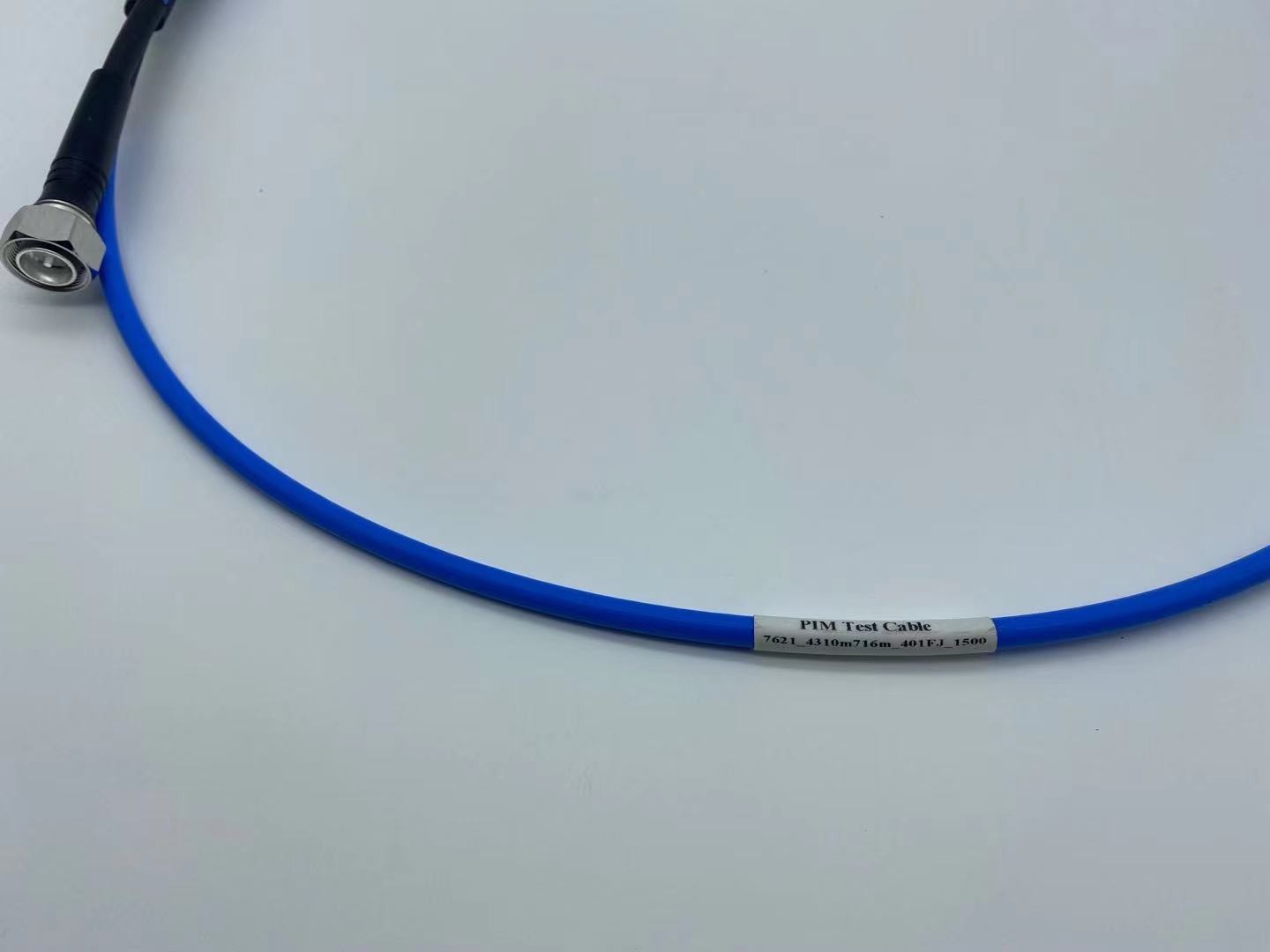

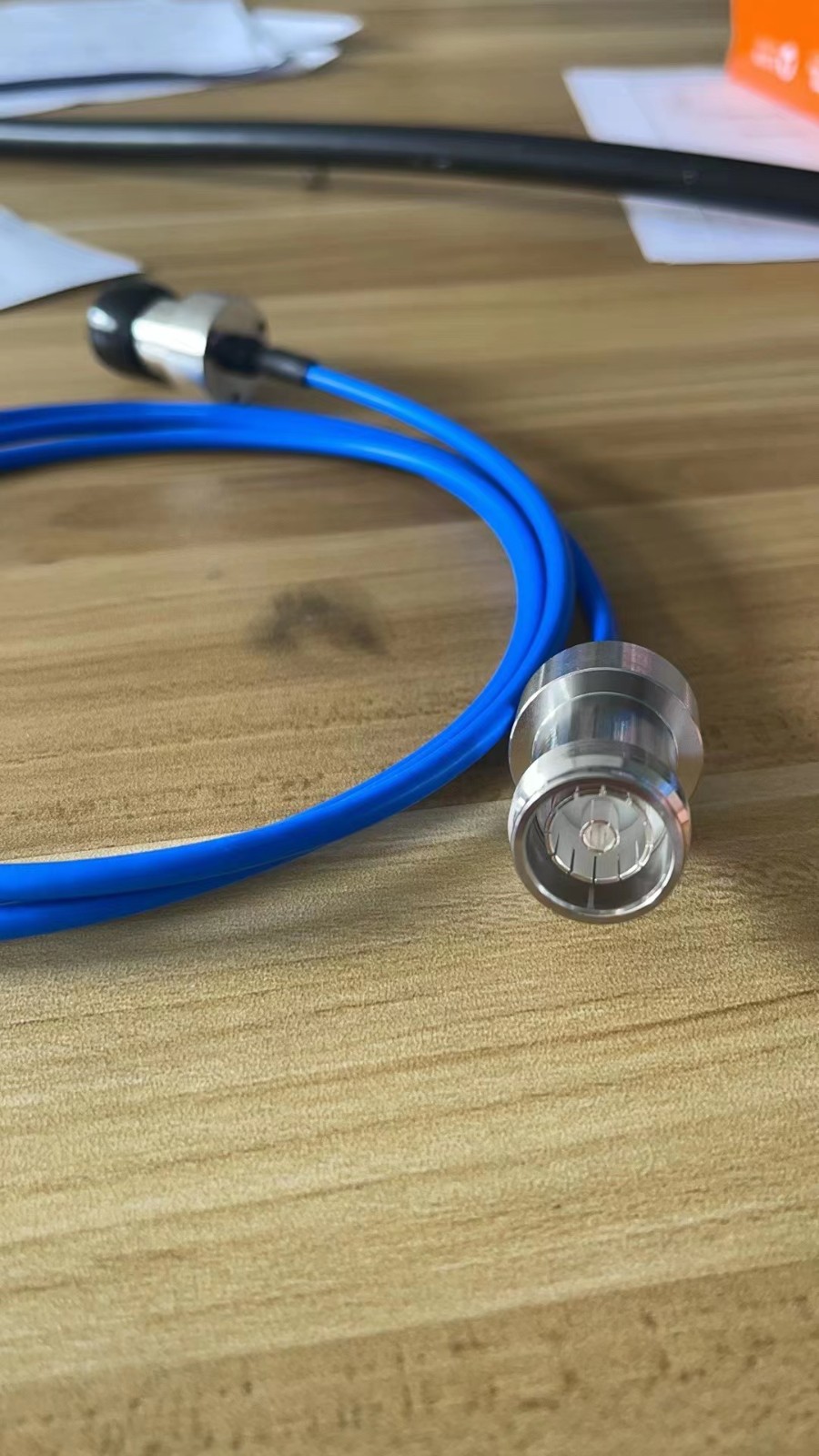

DIN 7/16 Male to 4.310 Male RF Test Cable Assembly with Rg401/250
DIN 7/16 Male to 4.310 Male RF Test Cable Assembly with Rg401/250
Product Detail

Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 3 GHz
RF Operating Voltage, maximum (vrms)2700.00 V
Outer Contact Resistance, maximum0.40 Mohm
Inner Contact Resistance, maximum1.50 Mohm
Insulation Resistance, minimum10000 Mohm
VSWR<1.1
Insertion LossTypical 0.05×√fdB+Cable Insertion Loss
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque25-27 Nm(DIN connector)
PIM<-165 dBc（@43 dBm）
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodyBrassTri-metal
Inner ContactPhosphor CopperSilver
InsulatorPTFE
