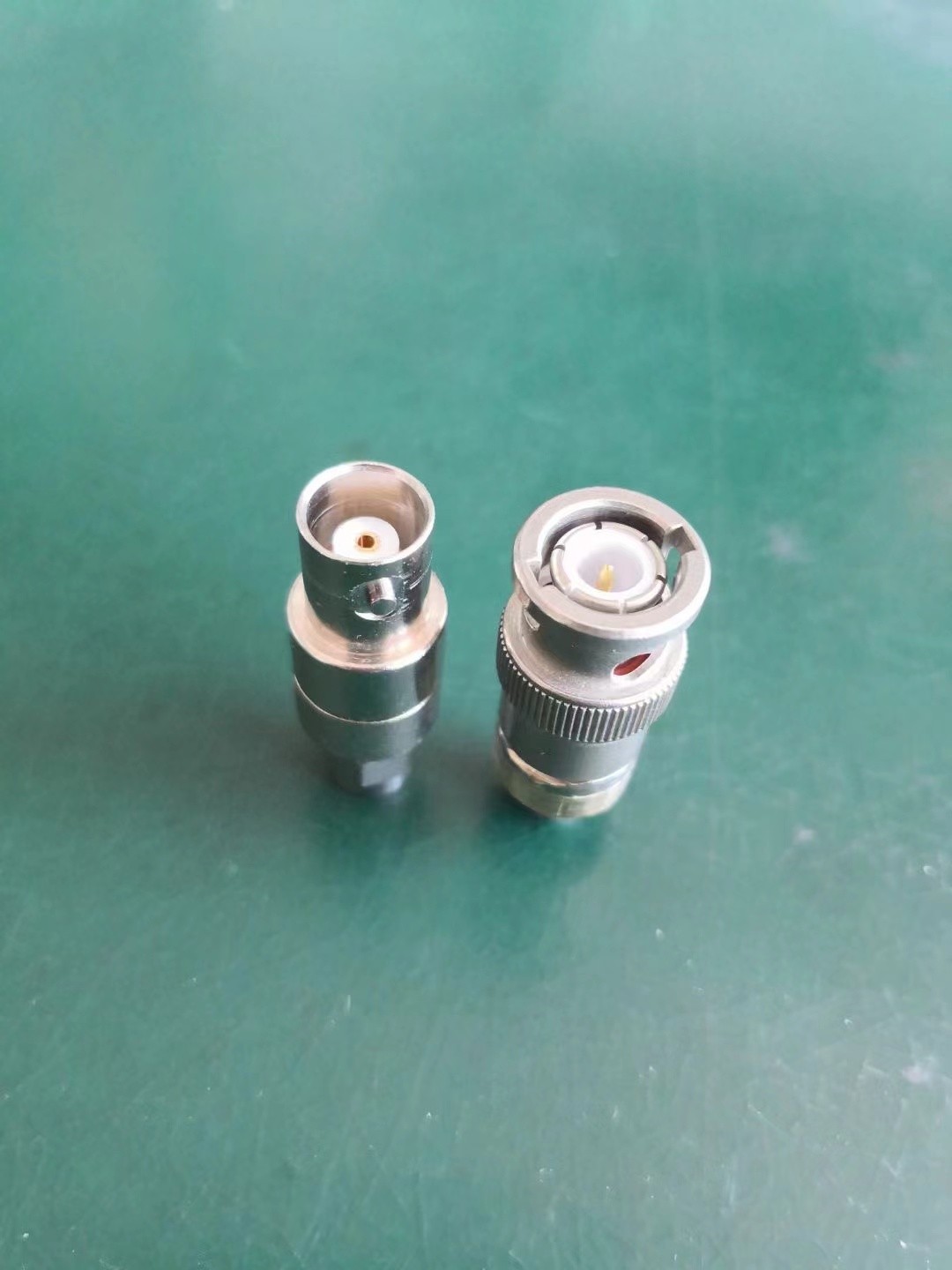

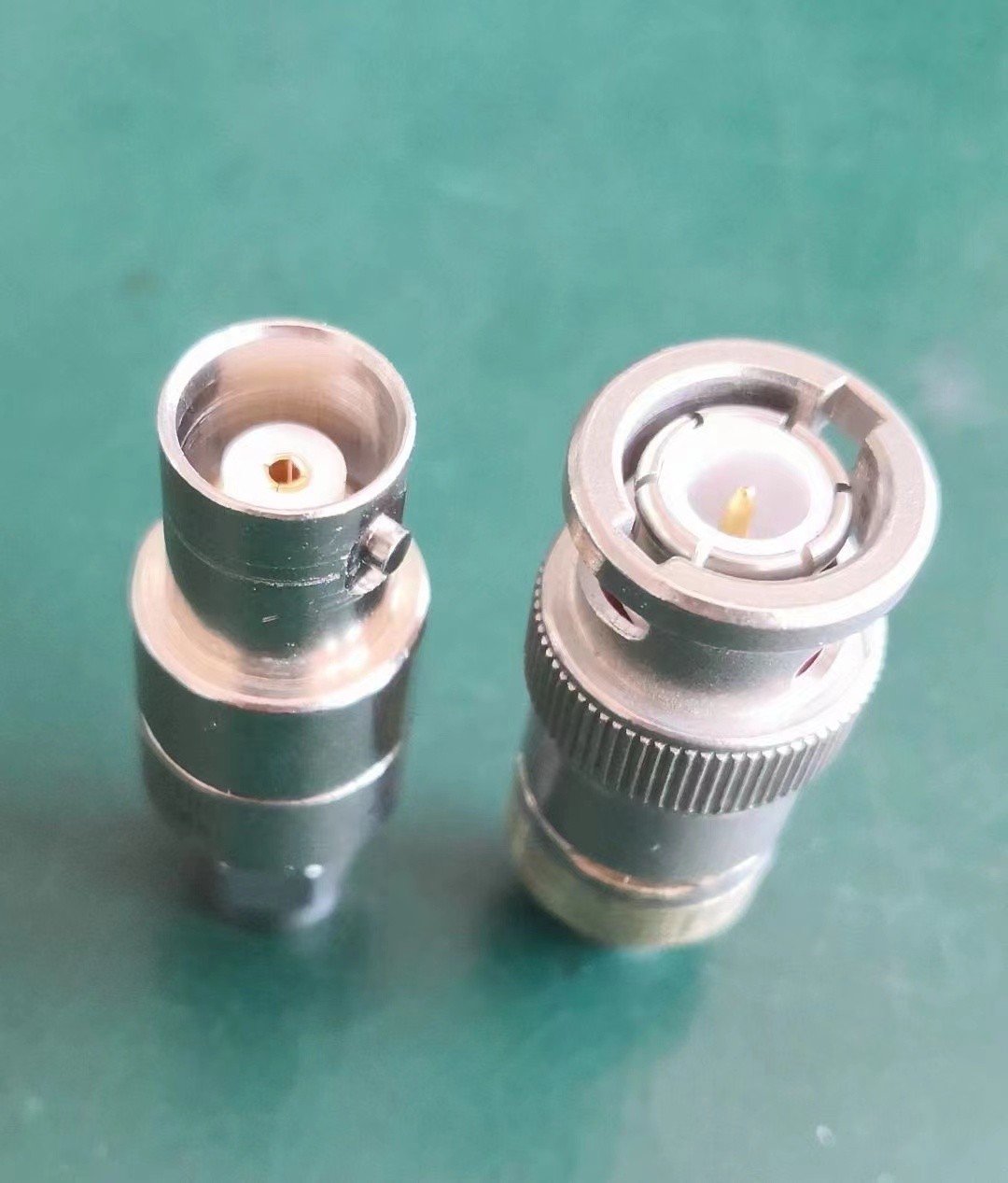

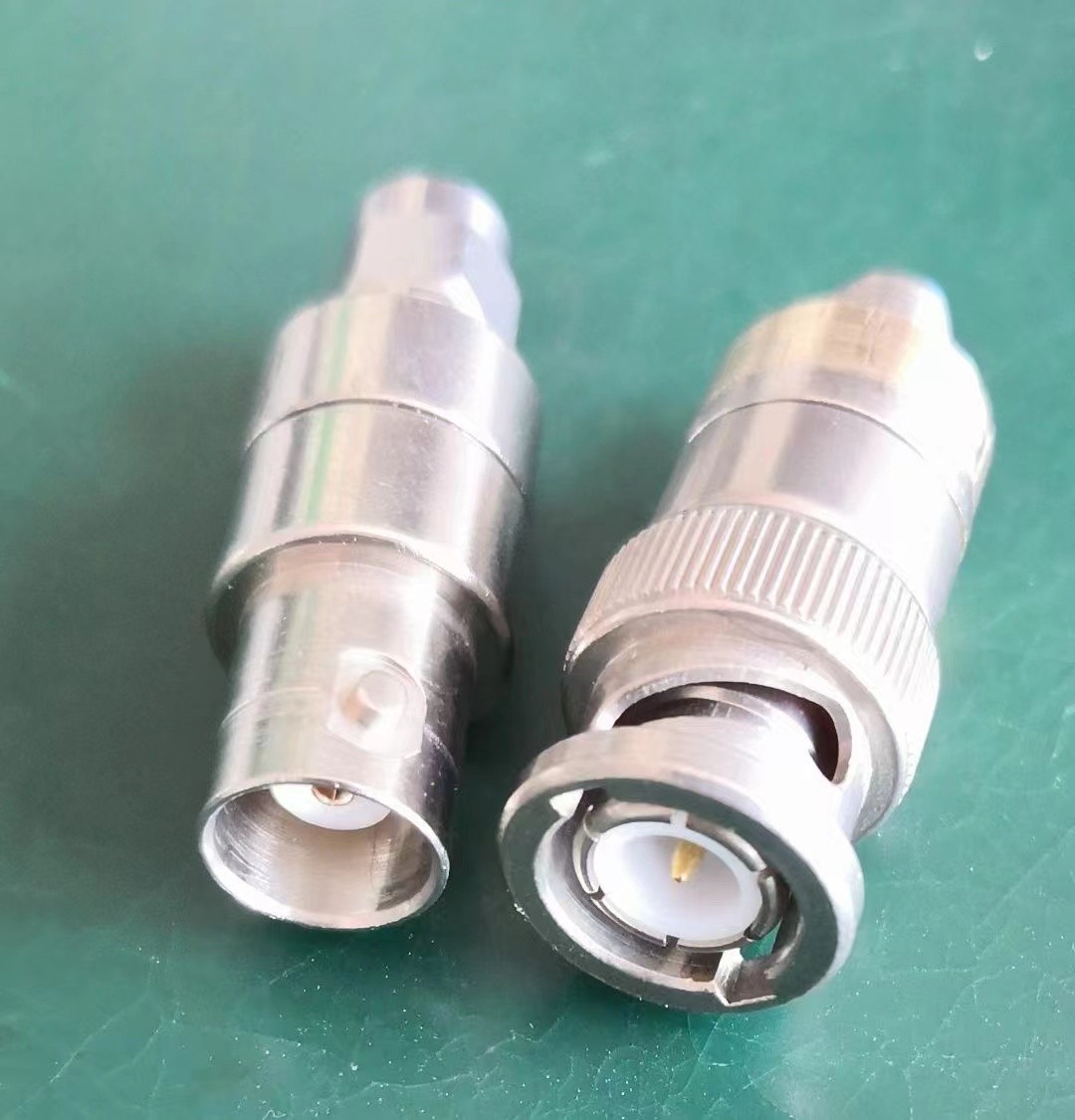

BNC male to BNC female RF fixed attenuators, DC~6GHz
BNC male to BNC female RF fixed attenuators, DC~6GHz
Product Detail
SPECIFICATIONS







Electrical
Frequency Range DC--6 GHz







Standard dB Values(DB)0 - 10.12.15.20.30dB







Attenuation Accuracy0 - 6 dB ±0.3 dB







7 - 20 dB ±0.5 dB







21- 30dB ±0.75dB







VSWR1.25:1 Max.







Input Power2 Watts Avg. @ +25°C







Peak Power250 Watts Max.







Impedance50 Ohms







Operating Temp Range(Temp Range)(-)65°C to +125°C







Mechanical







BNC Connectors(BNC)Nickel Plated Brass







ConductorsGold Plated Beryllium Copper or Brass
