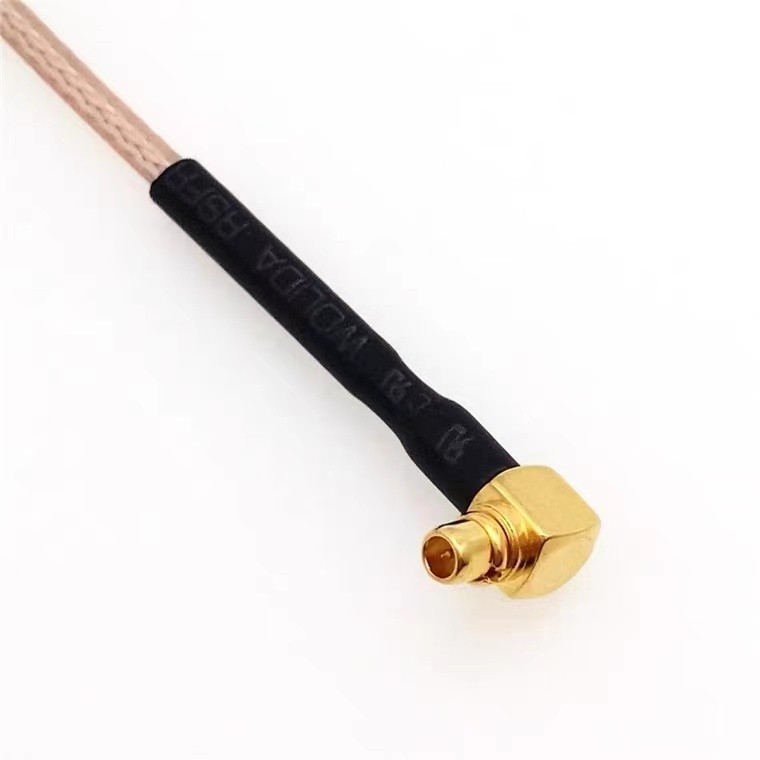

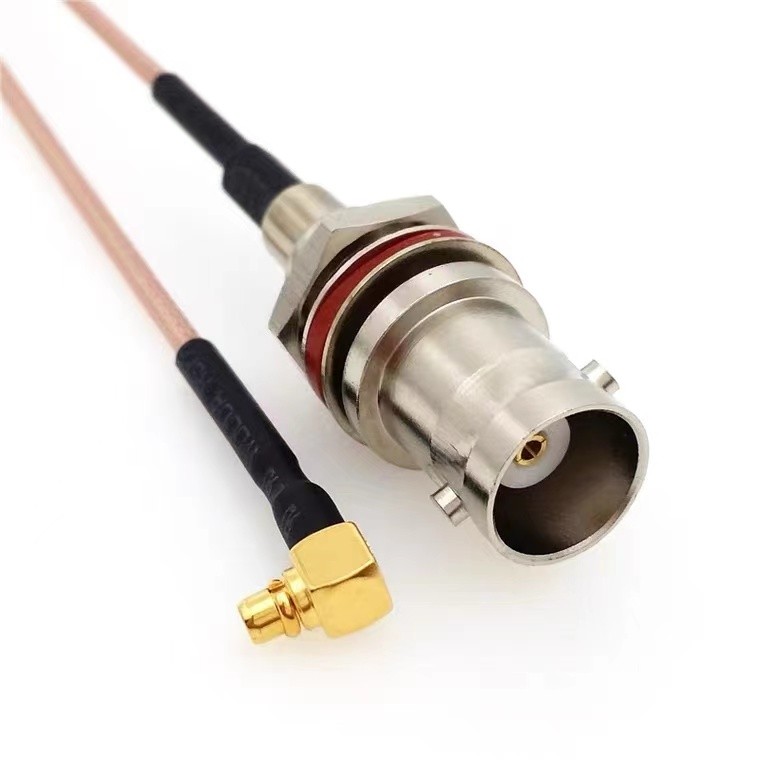

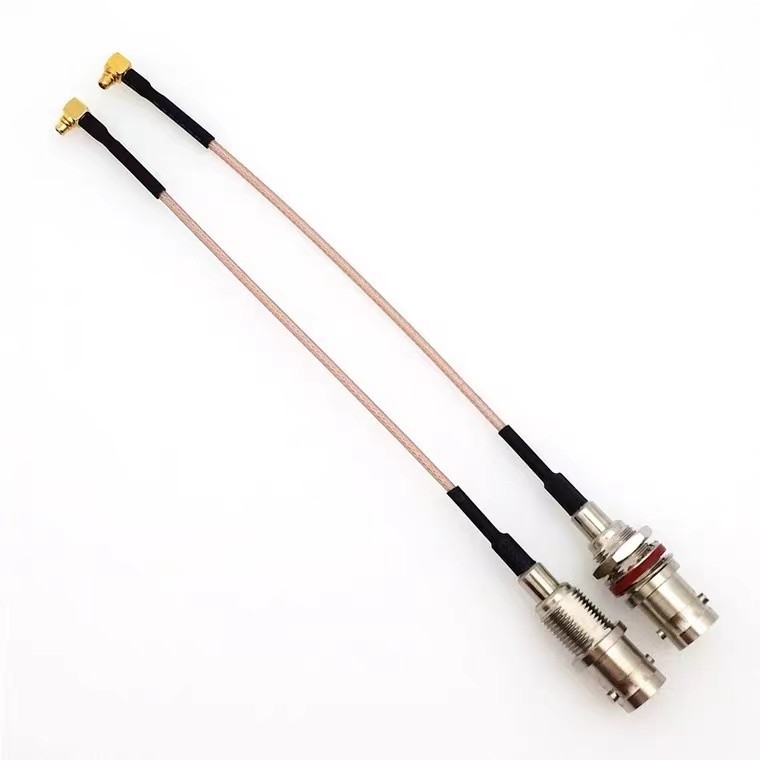

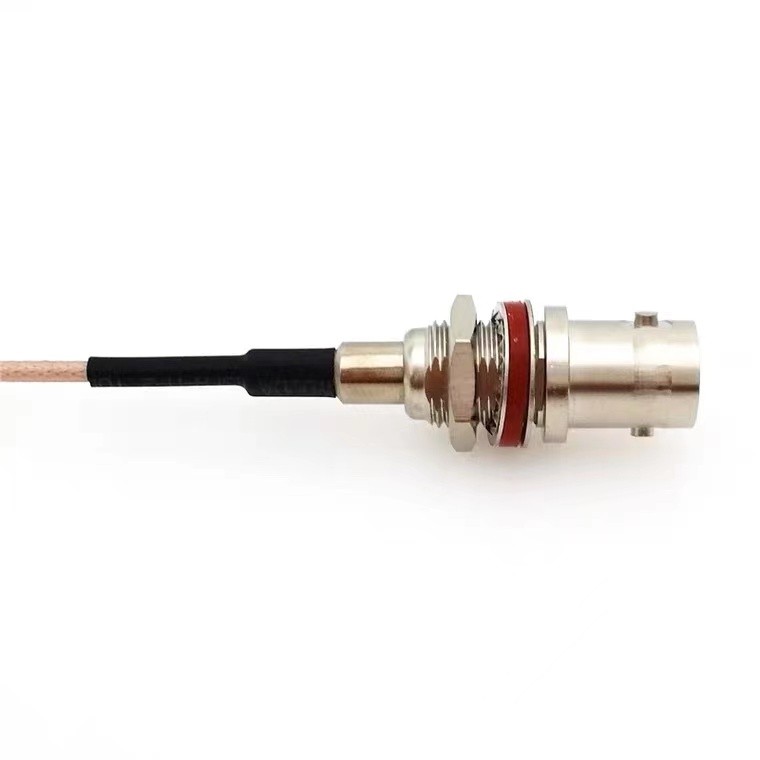

BNC female bulkhead to MMCX male right angle cable assembly, RG178
BNC female bulkhead to MMCX male right angle cable assembly, RG178
Product Detail
Electrical Specifications
Connector Impedance50 Ohm
Operating Frequency Band0 – 3 GHz
RF Operating Voltage, maximum (vrms)1500.00 V
Outer Contact Resistance, maximum0.20 Mohm
Inner Contact Resistance, maximum1.00 Mohm
Insulation Resistance, minimum5000 Mohm
VSWR<1.3
Insertion LossTypical 0.05×√fdB+Cable Insertion Loss
Mechanical Specifications
Mating Cycles500 Cycles
Recommended Mating Torque0.6-2.5 Nm
Environmental Specifications
Operating Temperature-40°C to +125°C
Storage Temperature-55°C to +125°C
Components
NameMaterialPlating
BodyBrassTri-metal
Inner ContactBrassGold
InsulatorPTFE
