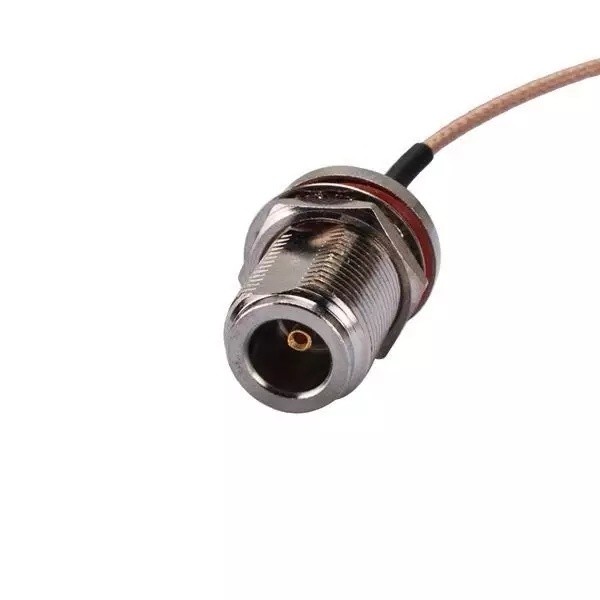

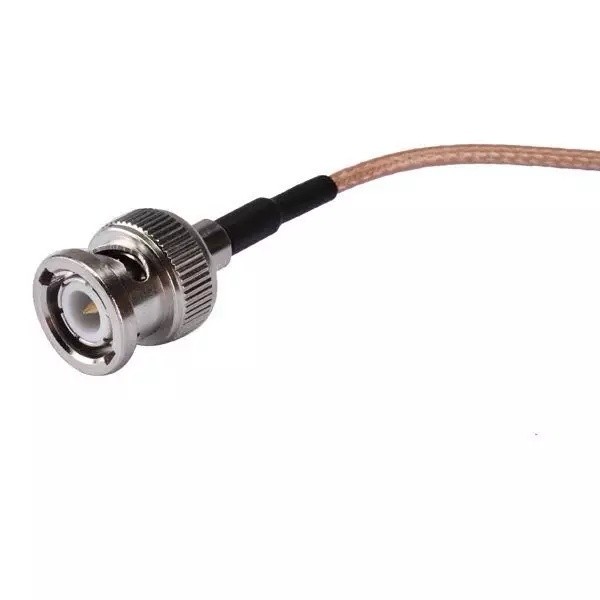

BNC Male to N Female RF Jumper Cable Assembly
BNC Male to N Female RF Jumper Cable Assembly
Product Detail

Electrical Specifications

Connector Impedance 50 ohm
Operating Frequency Band0 - 3GHz
RF Operating Voltage, maximum (vrms) 2700.00 V
Outer Contact Resistance, maximum 0.20 mOhm
Inner Contact Resistance, maximum 1.0 mOhm
Insulation Resistance, minimum 5000 Mohm
VSWR <1.3
Insertion Loss typical 0.05×√f dB+L

Mechanical Specifications

Mating cycles 500 cycles

Environmental Specifications

Operating Temperature -40°C to +125 °C
Storage Temperature -55°C to +125 °C

Components

Name Material Plating
Body Brass Tri-metal
Inner Contact Phosphor copper Gold
Insulator PTFE ---
