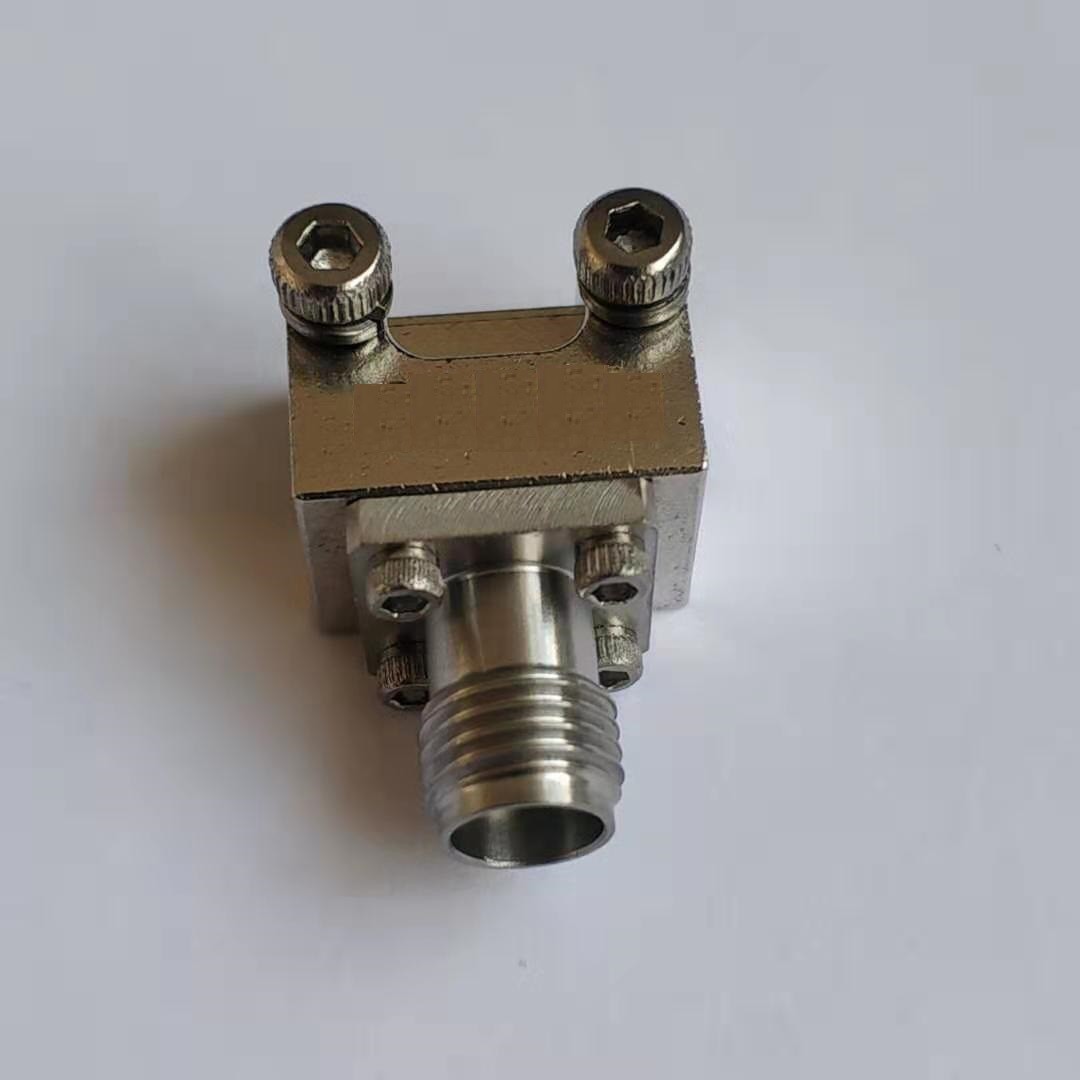

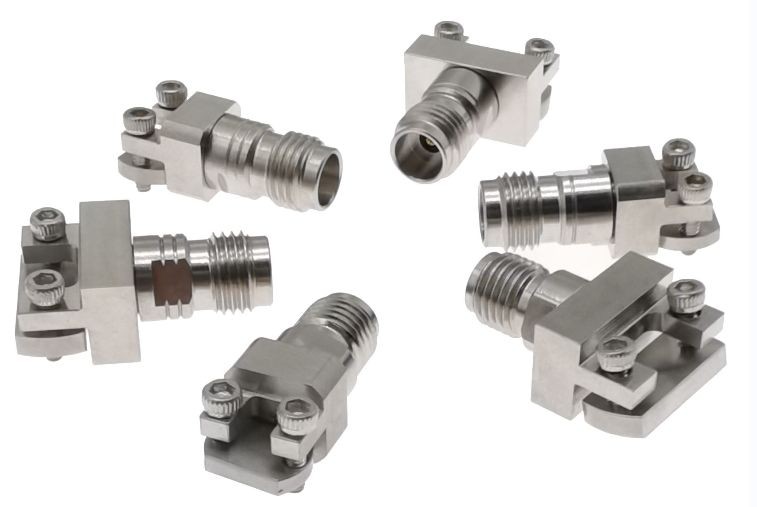

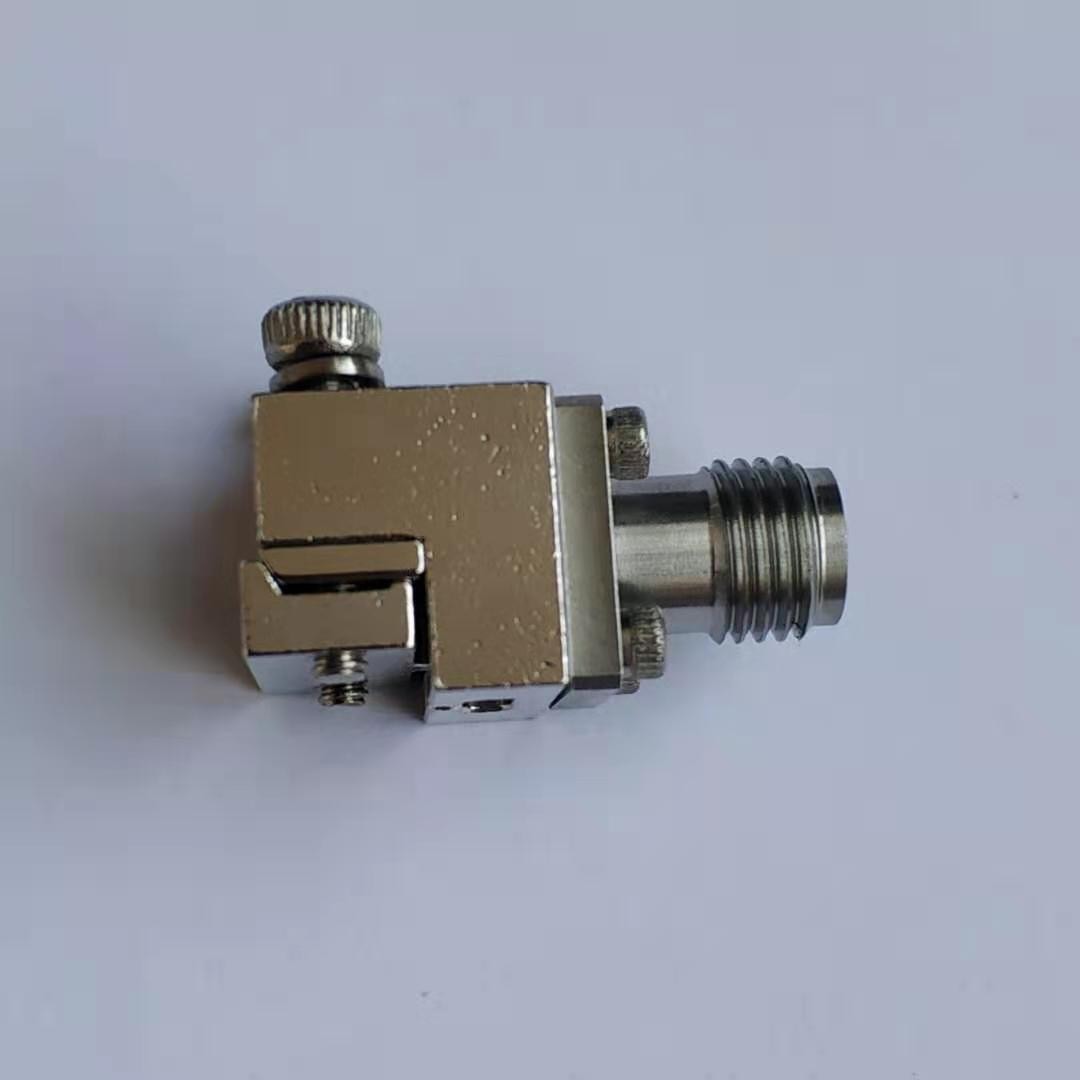

40GHz 2.92mm female edge mount PCB connector, 2.92-KFD0830 End Launch Connector
40GHz 2.92mm female edge mount PCB connector, 2.92-KFD0830 End Launch Connector
Product Detail

Configuration

Connector 1 Type

2.92mm Female

Conn 1

Impedance

50 Ohms

Connector Mount Method

2 Hole Flange

Conn 2

Interface Type

0.15mm Pin

Attachment Method

Contact

Electrical Specifications

Frequency

DC to 40 GHz

Insertion Loss (dB)

£ 0.05 xSqt.(f_Ghz)

Return loss/VSWR

1.25

Materials Information

Centre Contact

CuBe Gold Plated

Outer Contact

Stainless Steel

Body

Brass Trimetal Plated

Dielectric

PEEK&PTFE

Environmental Data


Temperature Range

-40°C to +165°C

2002/95/EC(RoHS)

Compliant


Keywords

Microwave Millimeter Wave Connector,2.92mm Connector
